Planet IGS-20040MT User Manual

User’s Manual of IGS-20040MT
4.13 MAC Address Table
Switching of frames is based upon the DMAC address contained in the frame. The Industrial Managed Switch builds up a table
that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in
the frame ). This table contains both static and dynamic entries. The static entries are configured by the network administrator if
the administrator wants to do a fixed mapping between the DMAC address and switch ports.
The frames also contain a MAC address (SMAC address ), which shows the MAC address of the equipment sending the frame.
The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic
entries are removed from the MAC table if no frame with the corresponding SMAC address have been seen after a configurable
age time.
4.13.1 MAC Table Configuration
The MAC Address Table is configured on this Page. Set timeouts for entries in the dynamic MAC Table and configure the static
MAC table here. The MAC Address Table Configuration screen in Figure 4-13-1 appears.

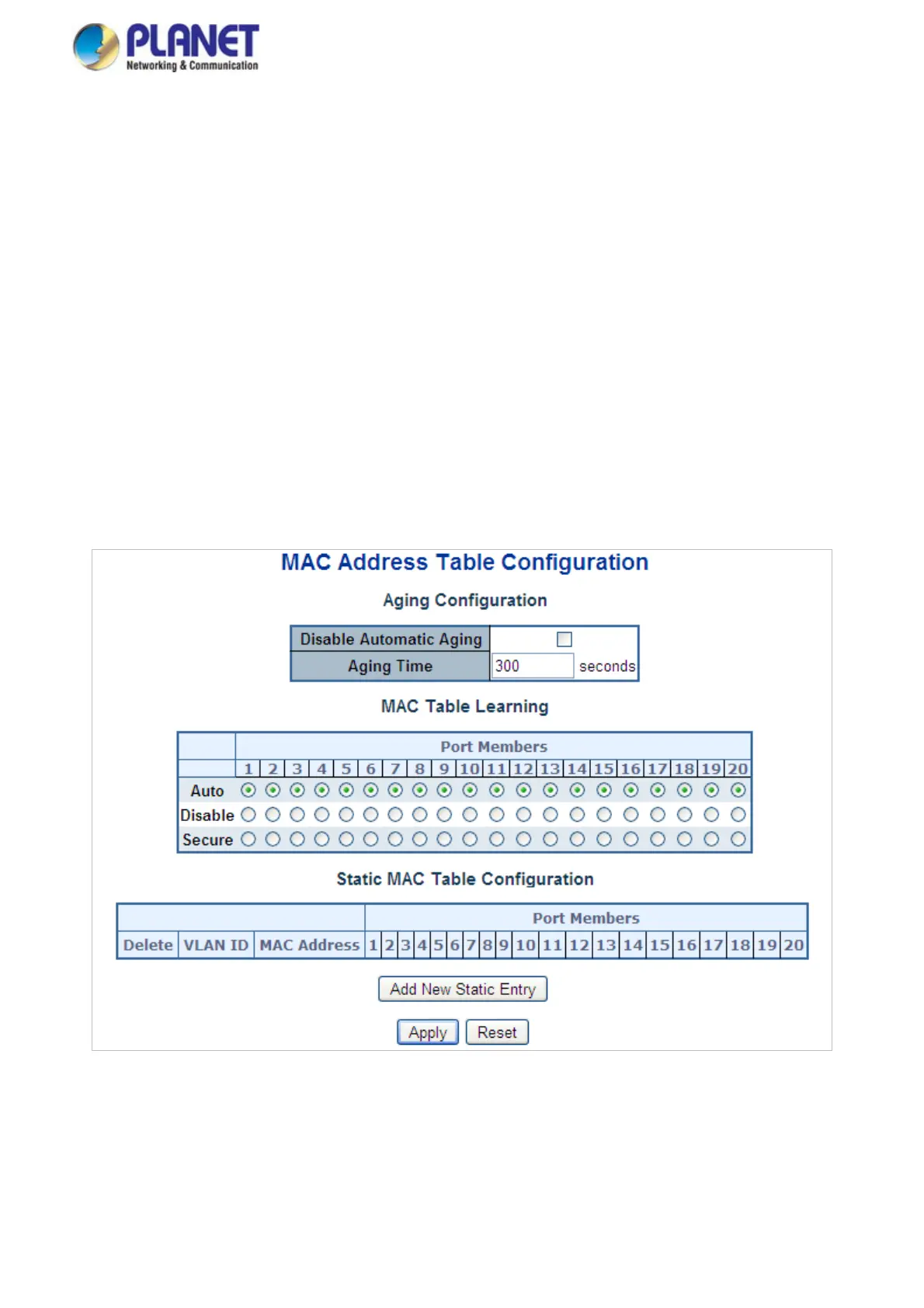

Figure 4-13-1: MAC Address Table Configuration Page Screenshot
The Page includes the following fields:
Aging Configuration
By default, dynamic entries are removed from the MAC table after 300 seconds. This removal is also called aging.
299

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
