User’s Manual of IGS-20040MT

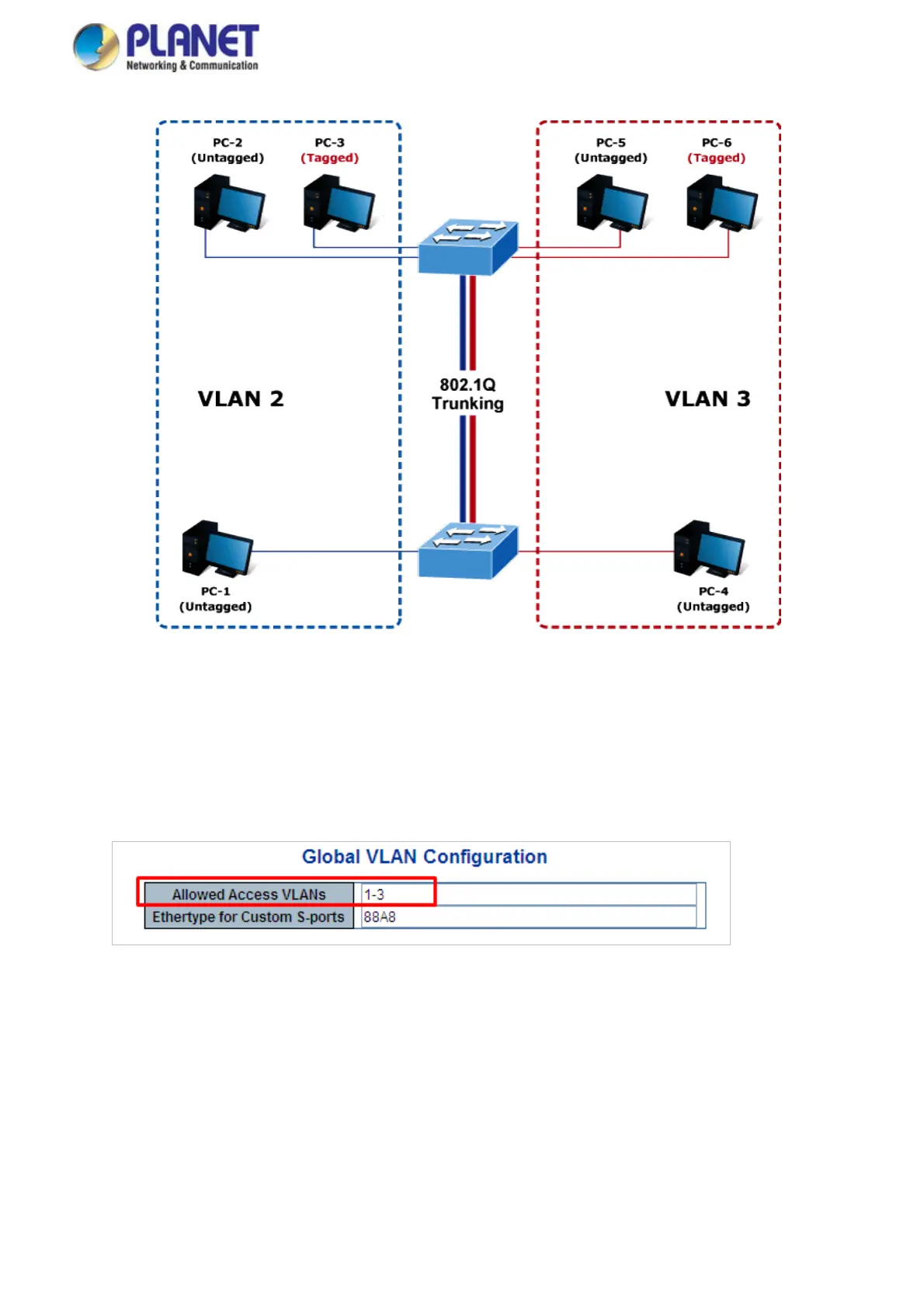

Figure 4-6-12: VLAN Trunking Diagram
Setup steps
1. Add VLAN Group
Add two VLANs – VLAN 2 and VLAN 3
For Type 1-3 in Allowed Access VLANs column, the 1-3 includes VLAN1 and 2 and 3.
Figure 4-6-13: Add VLAN 2 and VLAN 3
2. Assign VLAN Member and PVID to each port :
VLAN 2 : Port-1,Port-2 and Port-3
VLAN 3 : Port-4, Port-5 and Port-6
VLAN 1 : All other ports – Port-7~Port-48
135
