User’s Manual of IGSW-24040T

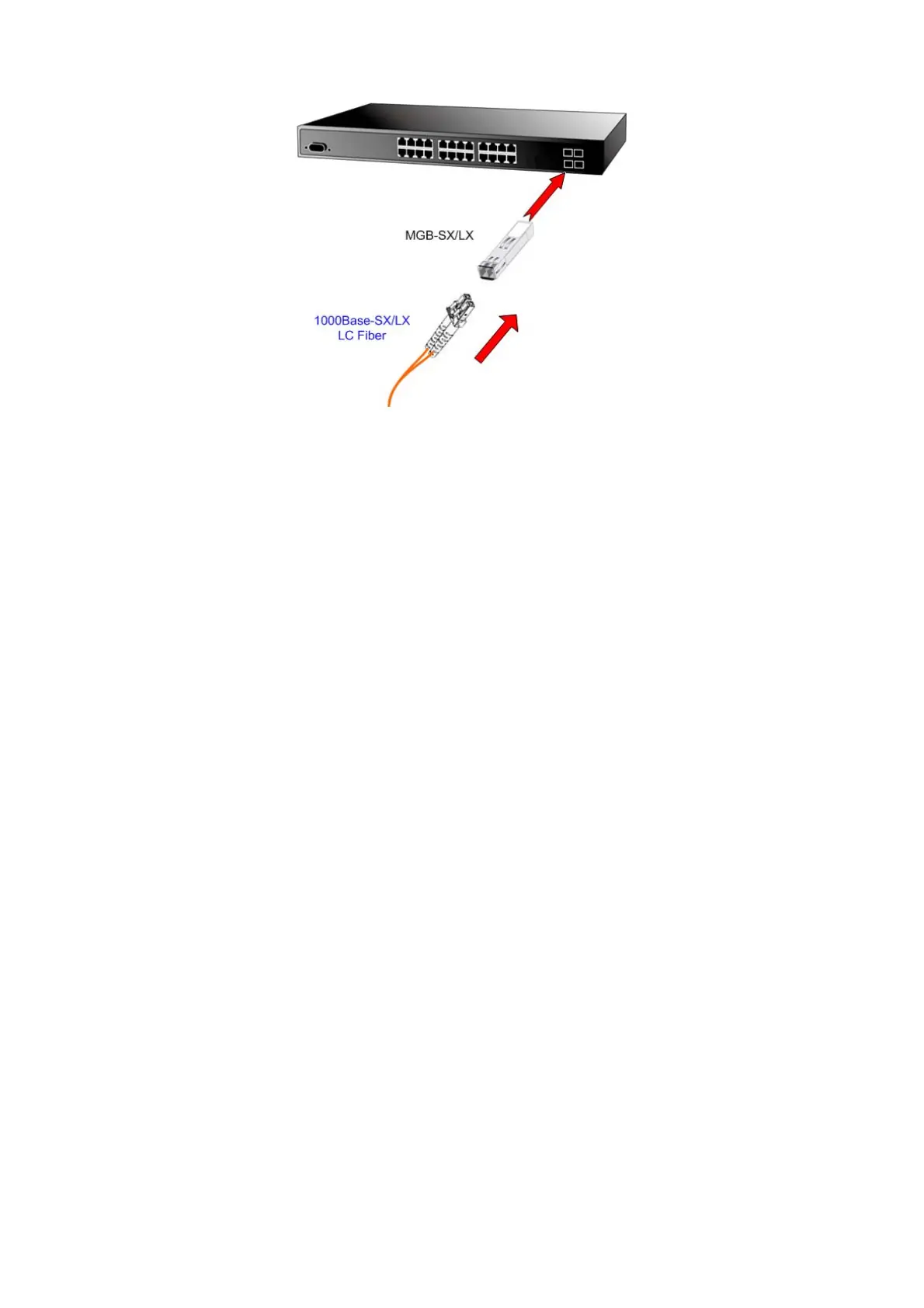

Figure 2-7 Plug-in the SFP Transceiver
 Approved PLANET SFP Transceivers
PLANET Managed Switch supports both Single mode and Multi-mode SFP transceiver. The following list of approved PLANET
SFP transceivers is correct at the time of publication:
1000Base-X SFP modules:
■ MGB-SX SFP (1000BASE-SX SFP transceiver / Multi-mode / 850nm / 220m~550m)
■ MGB-LX SFP (1000BASE-LX SFP transceiver / Single mode / 1310nm / 10km)
■ MGB-L30 SFP (1000BASE-LX SFP transceiver / Single mode / 1310nm / 30km)
■ MGB-L50 SFP (1000BASE-LX SFP transceiver / Single mode / 1310nm / 50km)
■ MGB-LA10 SFP (1000BASE-LX SFP transceiver / WDM Single mode / TX: 1310nm, RX: 1550nm/ 10km)
■ MGB-LB10 SFP (1000BASE-LX SFP transceiver / WDM Single mode / TX: 1550nm, RX: 1310nm / 10km)
■ MGB-TSX SFP (1000BASE-SX SFP transceiver / Multi-mode / 850nm / 220m ~550m; -40~75
℃)
■ MGB-TLX SFP (1000BASE-SX SFP transceiver / Signle mode / 1310nm / 10km; -40~75℃)
■ MGB-TL30 SFP (1000BASE-SX SFP transceiver / Signle mode / 1310nm / 30km; -40~75℃)
■ MGB-TL70 SFP (1000BASE-SX SFP transceiver / Signle mode / 1310nm / 70km; -40~75℃)
100Base-FX SFP modules:
■ MFB-FX SFP (100BASE-FX SFP transceiver / Multi-mode / 1310nm / 2km)
■ MFB-F20 SFP (100BASE-FX SFP transceiver / Single mode / 1310nm / 20km)
■ MFB-F40 SFP (100BASE-FX SFP transceiver / Single mode / 1310nm / 40km)
■ MFB-F60 SFP (100BASE-FX SFP transceiver / Single mode / 1310nm / 60km)
■ MGB-FA20 SFP (100BASE-BX SFP transceiver / WDM Single mode / TX: 1310nm, RX: 1550nm/ 20km)
■ MGB-FB20 SFP (100BASE-BX SFP transceiver / WDM Single mode / TX: 1550nm, RX: 1310nm/ 20km)
■ MFB-TFX SFP (100BASE-FX SFP transceiver / Multi-mode / 1310nm / 2km ; -40~75℃)
■ MFB-TF20 SFP (100BASE-FX SFP transceiver / Single mode / 1310nm / 20km ; -40~75℃)
33
