Polaris 2003 Pro X User Manual

REAR SUSPENSION/TRACK/TRACTION
7.11
Rear Track Shock - 440 Pro X Fan -- Ryde FX
P/N 7042184
Walker Evans Racing Shock -- PN 7042184

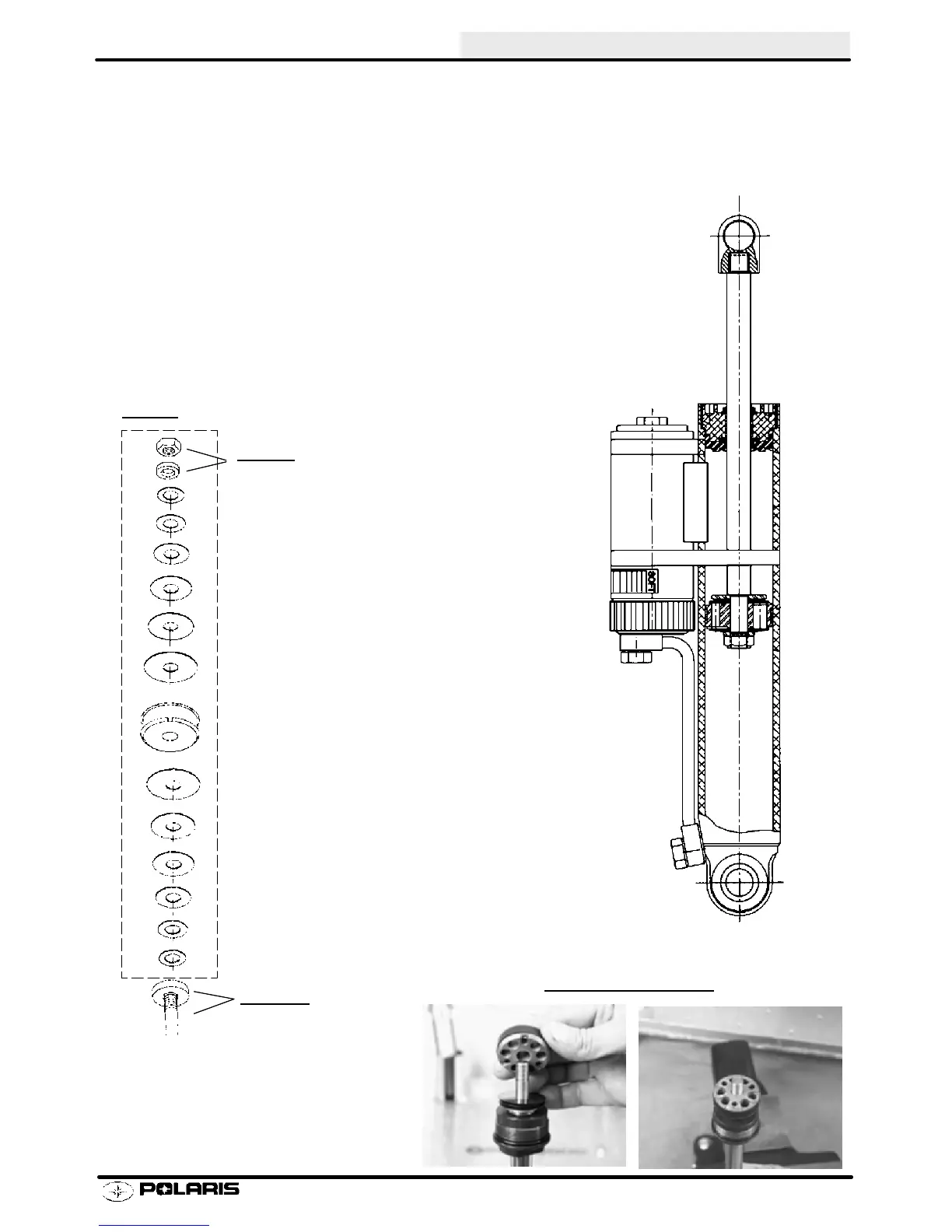

Shock Design Details (Inches)
Travel 5.35...............
Extended Length 14.493.....
Compressed Length 9.593..
IFP Depth 2.10...........
Nitrogen 200 psi............
Oil Capacity 164 cc.........
Hose Length N/A.........
Piston (orifice .070)
Lock nut
.700x.012
.800x.012
.900x.008
1.000x.010
1.100x.012
1.250x.012
1.250x.015
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
1.300x.008
.900x.008
1.250x.008
1.100x.008
1.000x.008
.900x.010
.800x.010
Shaft End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
