Polaris 2003 Pro X User Manual

REAR SUSPENSION/TRACK/TRACTION
7.12
Front Track Shock - 440 Pro X -- Walker Evans Racing
P/N 7042178
Walker Evans Racing Shock -- PN 7042178

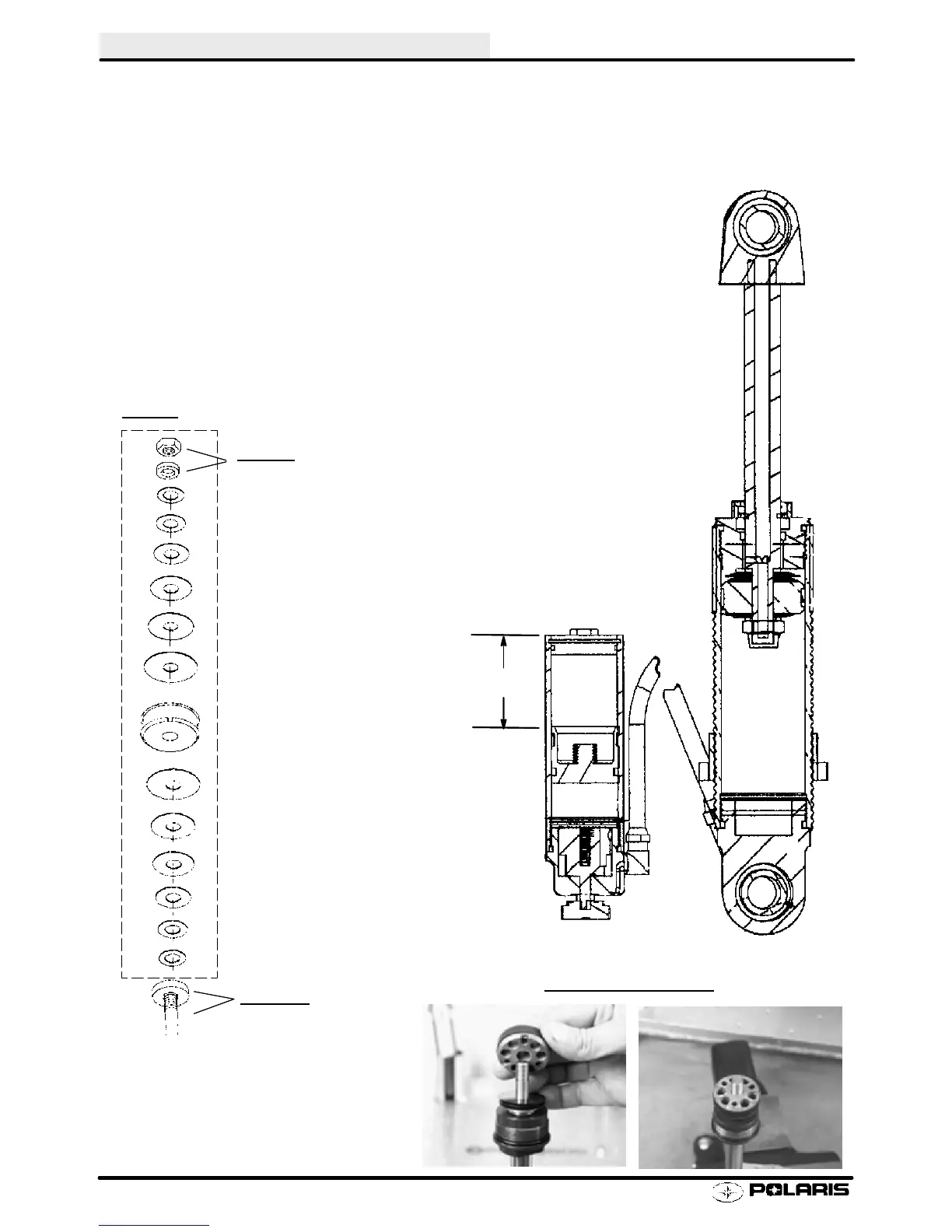

Shock Design Details (Inches)
Travel 3.76...............
Extended Length 12.00.....
Compressed Length 8.23..
IFP Depth 2.0...........
Nitrogen 200 psi............
Oil Capacity 170 cc.........
Hose Length 29.0.........
IFP Depth
Piston (orifice .052)
Lock nut
.625 x .065 (Nut Backing Washer)
.700 x .012
.800 x .012
.900 x .012
1.000 x .012
1.10 x .012
.700 x .010
1.200 x .012
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
1.300 x .015
1.300 x .015
1.250 x .015
1.100 x .015
1.000 x .015
.900 x .012
.800 x .012
.700 x .012
1.000 x .090
Walker Evans Racing Shock -- PN 7042178
Shock Design Details (Inches)
Travel 3.76...............
Extended Length 12.00.....
Compressed Length 8.23..
IFP Depth 2.0...........
Nitrogen 200 psi............
Oil Capacity 170 cc.........
Hose Length 29.0.........
IFP Depth
Piston (orifice .052)
Lock nut
.625 x .065 (Nut Backing Washer)
.700 x .012
.800 x .012
.900 x .012
1.000 x .012
1.10 x .012
.700 x .010
1.200 x .012
Compression
Rebound
Shaft
End
Nut
End
Valving
Stack shown as placed on the
shock rod with rod in a vice.
PISTON ORIENTATION
1.300 x .015
1.300 x .015
1.250 x .015
1.100 x .015
1.000 x .015
.900 x .012
.800 x .012
.700 x .012
1.000 x .090
