9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

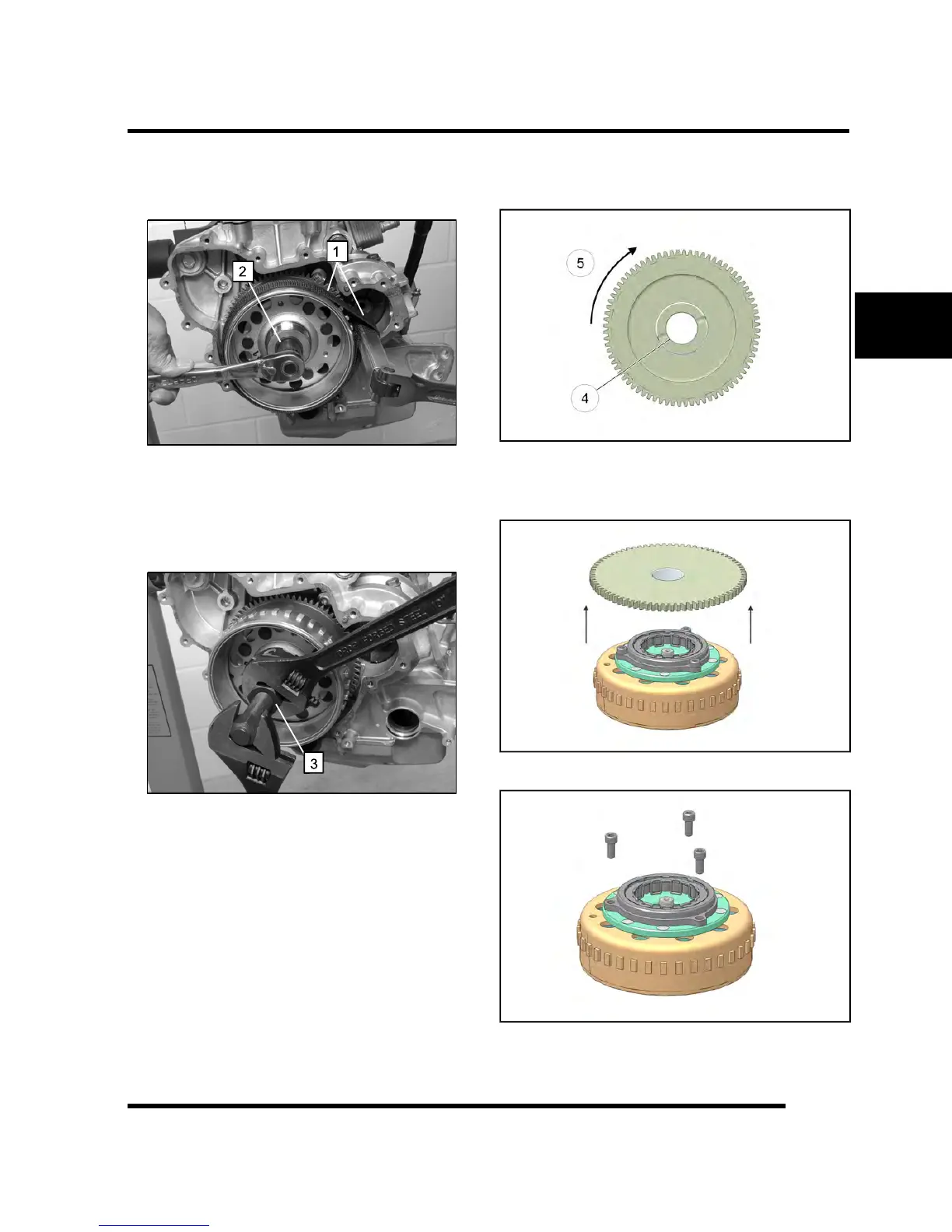

4. Using a commercially available strap wrench (Item
1), hold the flywheel and remove the flywheel
retaining bolt (Item 2).
5. Fully install Flywheel Puller (PA-49316) (Item 3) on
the threads of the flywheel (left hand thread - turn
flywheel puller counterclockwise to install).
6. Hold puller body and tighten the center bolt to
remove the flywheel.
Starter One-Way Clutch Inspection
NOTE: The starter one-way clutch can be
serviced with the engine installed in the chassis.
7. Remove the stator cover and flywheel (see “Stator
Cover Removal / Inspection” and “Flywheel
Removal”).
8. Place flywheel on a work bench with the one-way
clutch facing up. Grasp clutch gear and rotate
clockwise. It should turn smoothly without binding.
9. Rotate one-way gear counterclockwise (Item 5). The
gear should immediately lock in position and not slip.
10. Inspect the one-way gear bushing (Item 4) for wear
or galling. If service is required, refer to “Starter One-
Way Clutch Disassembly”.
Starter One-Way Clutch Disassembly
1. Lift up to remove starter one-way gear.
2. Remove the three one-way clutch retaining screws.
ENGINE
