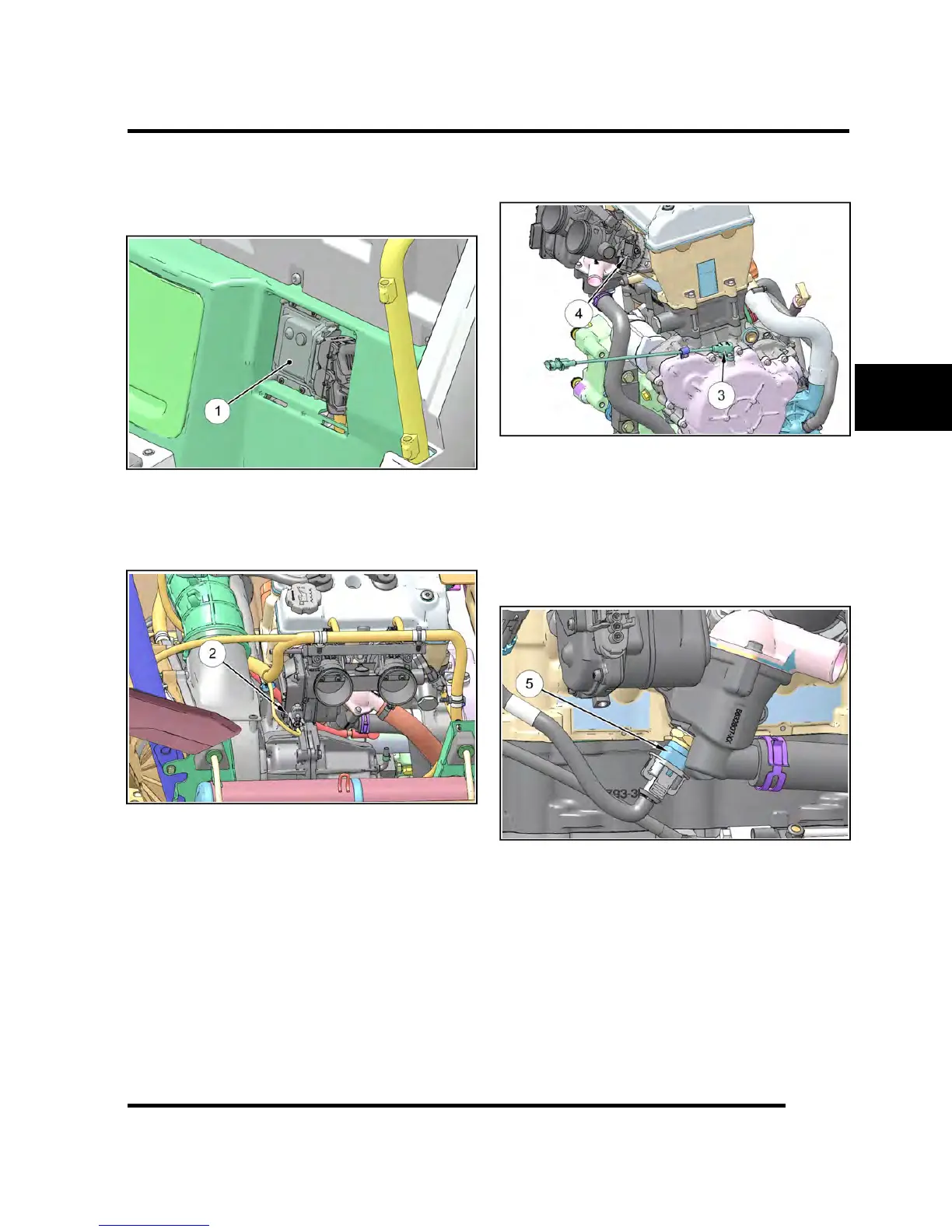

EFI System Component Locations
• Electronic Control Unit (ECU) (Item 1)
Behind driver’s seat. Behind LR seat on RZR XP 4
1000.
• Electronic Throttle Control (ETC) (Item 2)
Located on the PTO side of the throttle body
assembly.
• Crankshaft Position Sensor (CPS)(Item 3)
Located on top of the stator cover.
• Temperature and Manifold Absolute Pressure
(TMAP) Sensor (Item 4)
Located on the Mag side of the throttle body.
• Engine Coolant Temperature Sensor (ECT)
(Item 5)
Located on the left side of the thermostat housing.
The sensor can be accessed with the air box
assembly removed.
