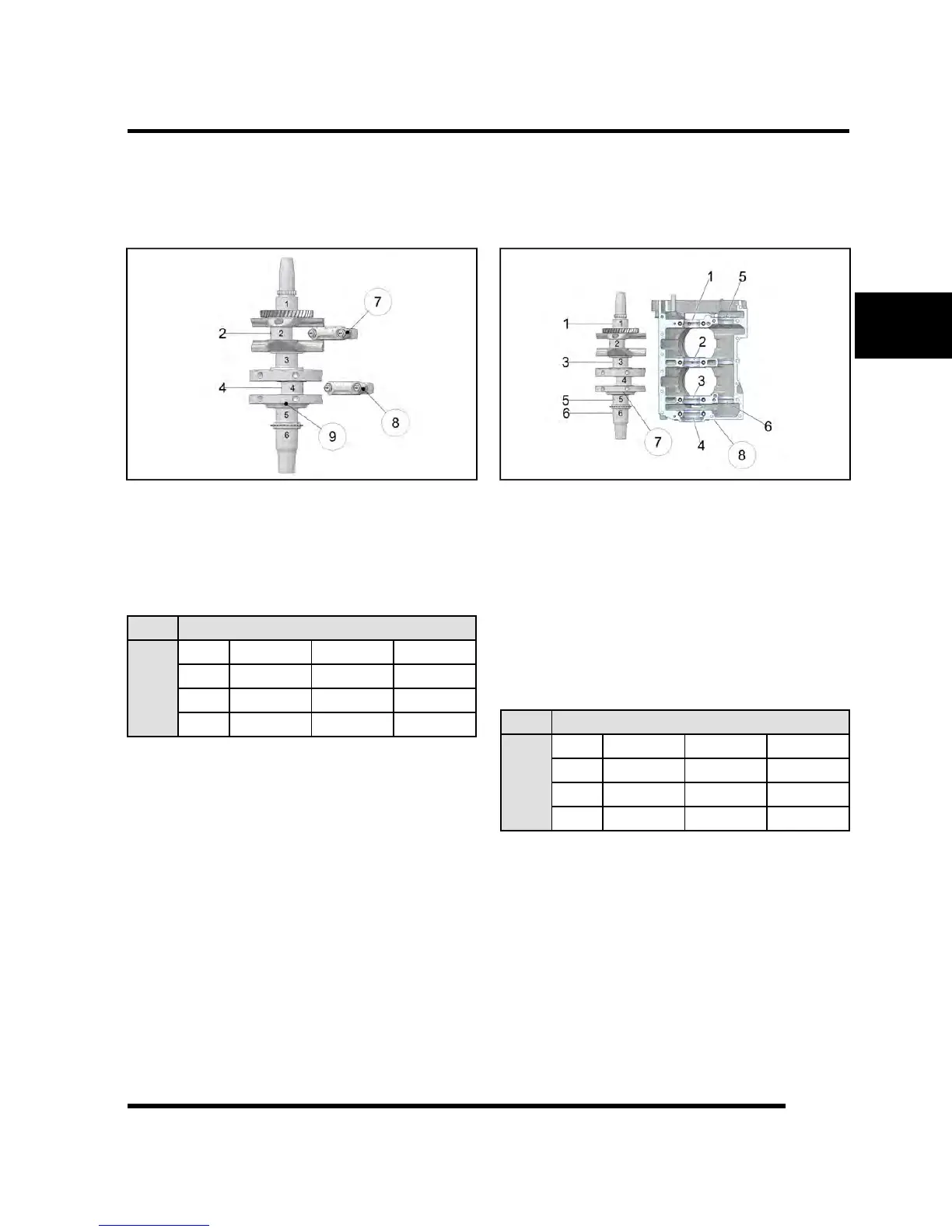

Connecting Rod Bearing Selection
In order to select the proper bearing for the connecting
rods, you must reference the number on each connecting
rod (Item 7 & 8) and match that up with the rod journal
letters on the crankshaft (Item 9).
In this example, you would use the number 2 as the
connecting rod code. You would use letters G and G as
the crankshaft codes (crank journals 2 and 4). Based off
the bearing selection chart, you would use a Green
bearing for each connecting rod
Bearing Selection Chart — Rod
Crankshaft
Rod
Code B G Y
1 Blue Blue Green
2 Blue Green Yellow
3 Green Yellow Yellow
Crankshaft Main Bearing Selection
In order to select the proper main bearings for the
crankshaft, you must reference the six numbers on the
crankcase (Item 8) and match that up with the main
journal letters on the crankshaft (Item 7).
In this example, you would use the number 2 as the
crankcase codes (case journals 1, 2, 3, 4). You would
use letters G, Y, G, Y as the crankshaft codes (crank
journals 1, 3, 5 and 6). Based off the bearing selection
chart, you would use:
Green bearing for Main #1
Yellow bearing for Main #2
Green bearing for Main #3
Yellow bearing for Main #4
Bearing Selection Chart — Main Bearings
Crankshaft
Case
Code B G Y
1 Blue Blue Green
2 Blue Green Yellow
3 Green Yellow Yellow
Upper Crankcase Preparation
NOTE: Always replace plain bearings when the
crankcase or connecting rods have been
disassembled. Refer to bearing selection
procedures.
1. Remove all traces of crankcase sealer from the
crankcase mating surfaces. Inspect the surfaces
closely for nicks, burrs or damage.
2. Clean bolt hole threads to remove any oil or
crankcase sealant.
ENGINE
