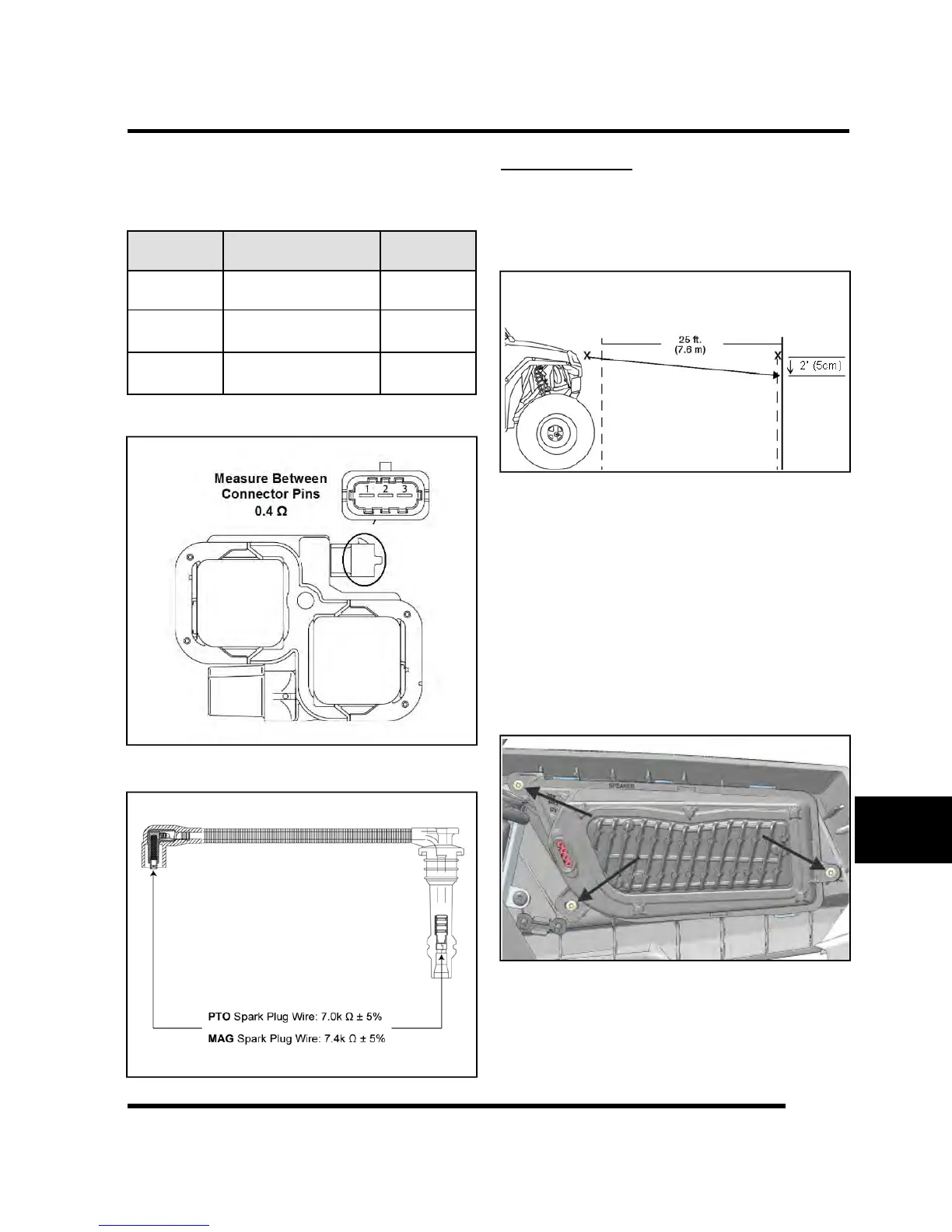

Ignition Coil Tests
The ignition coil can be tested by using an ohm meter.
Use the following illustration and specification table to
test the ignition coil resistance.
TEST PIN CONNECTION
RESIST-
ANCE
Primary
Between 1 & 2
Between 2 & 3
0.4 Ω
Secondary
(PTO)
Between High Tension
Lead Caps
7.0 k Ω ± 5%
Secondary
(MAG)
Between High Tension
Lead Caps
7.4 k Ω ± 5%
Primary Test
Secondary Test
HEAD LIGHTS
Headlight Adjustment
The headlight beams are adjustable.
1. Place the vehicle on a level surface with the
headlight approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. With the machine in Park, start the engine and turn
the headlight switch to the LOW position.
4. The most intense part of the LOW beam headlight
beam should be aimed 2 in. (5 cm) below the mark
placed on the wall in Step 2.
NOTE: Rider weight must be included in the seat
while performing this procedure.
5. Adjust the beam to the desired position by loosening
or tightening the (3) T-25 adjustment screws and
moving the lamp to the appropriate height.
