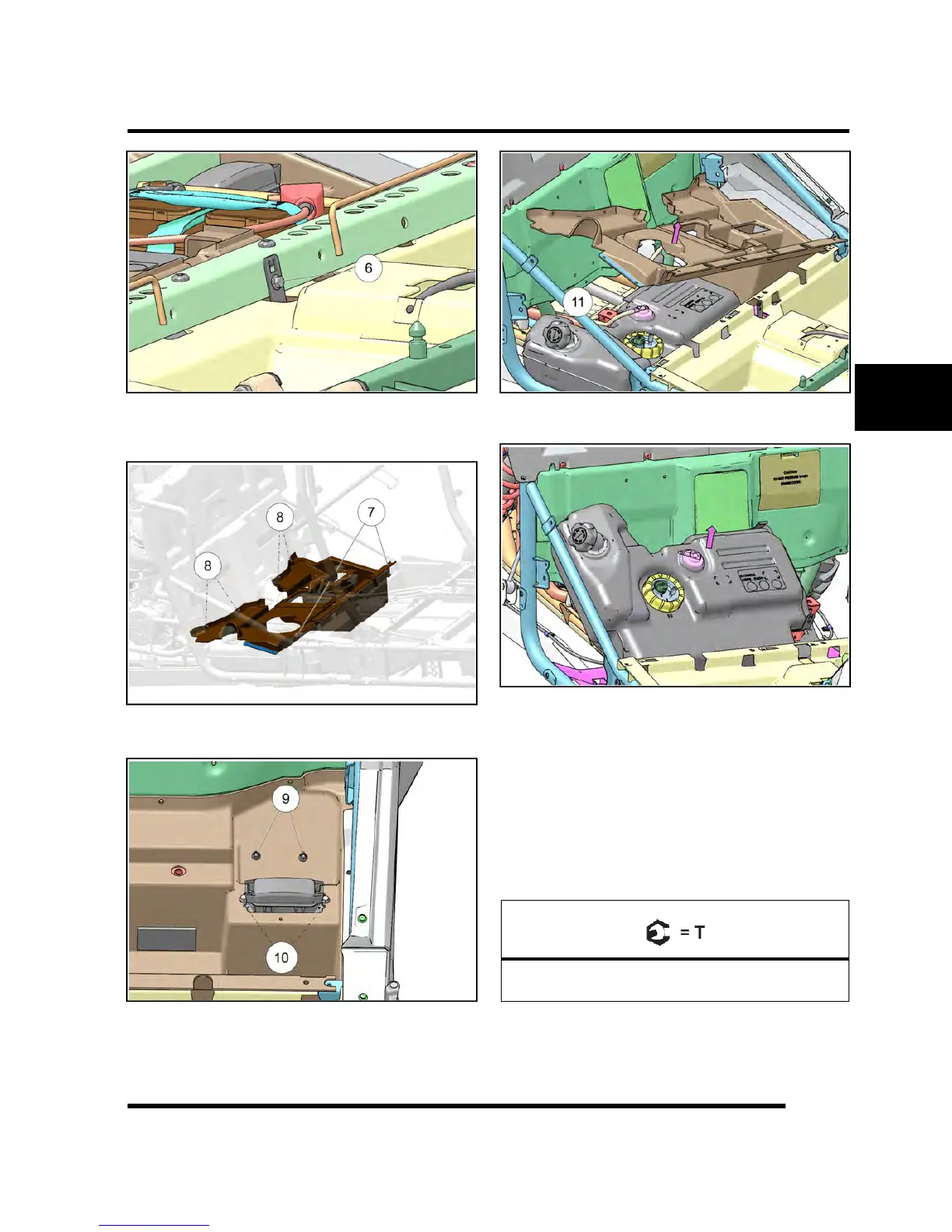

10.Remove the Torx screws (Item 7) and push rivets
(Item 8) retaining the lower rear close-off panel using
a T40 Torx driver. Remove the panel from the vehicle.
11. Remove the nuts (Item 9) retaining the regulator and
bolts (Item 10) retaining the fuse box.
12.Remove the fuel tank vent line (Item 11) from the tank
fitting.
13.Lift the rear of the fuel tank up first. Carefully pull the
fuel tank out of the vehicle.
Fuel Tank Installation RZR XP 4 1000
1. Carefully reinstall the fuel tank assembly. Install the
inner tank bracket with the fuel tank to ensure the
bracket is inserted properly into the lower fuel tank
mount.
2. Reinstall the fuel tank bracket and fasteners.
3. Install the vent line.
4. Reinstall lower rear close-off panel. Secure with
plastic rivets and torque screws to specification.
Block-off Panel Screws
8 ft-lbs (11 Nm)
5. Reinstall the seat base frame and torque fasteners to
specification.
