Polaris 2014 RZR XP 1000 Service Manual

10
10.15
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

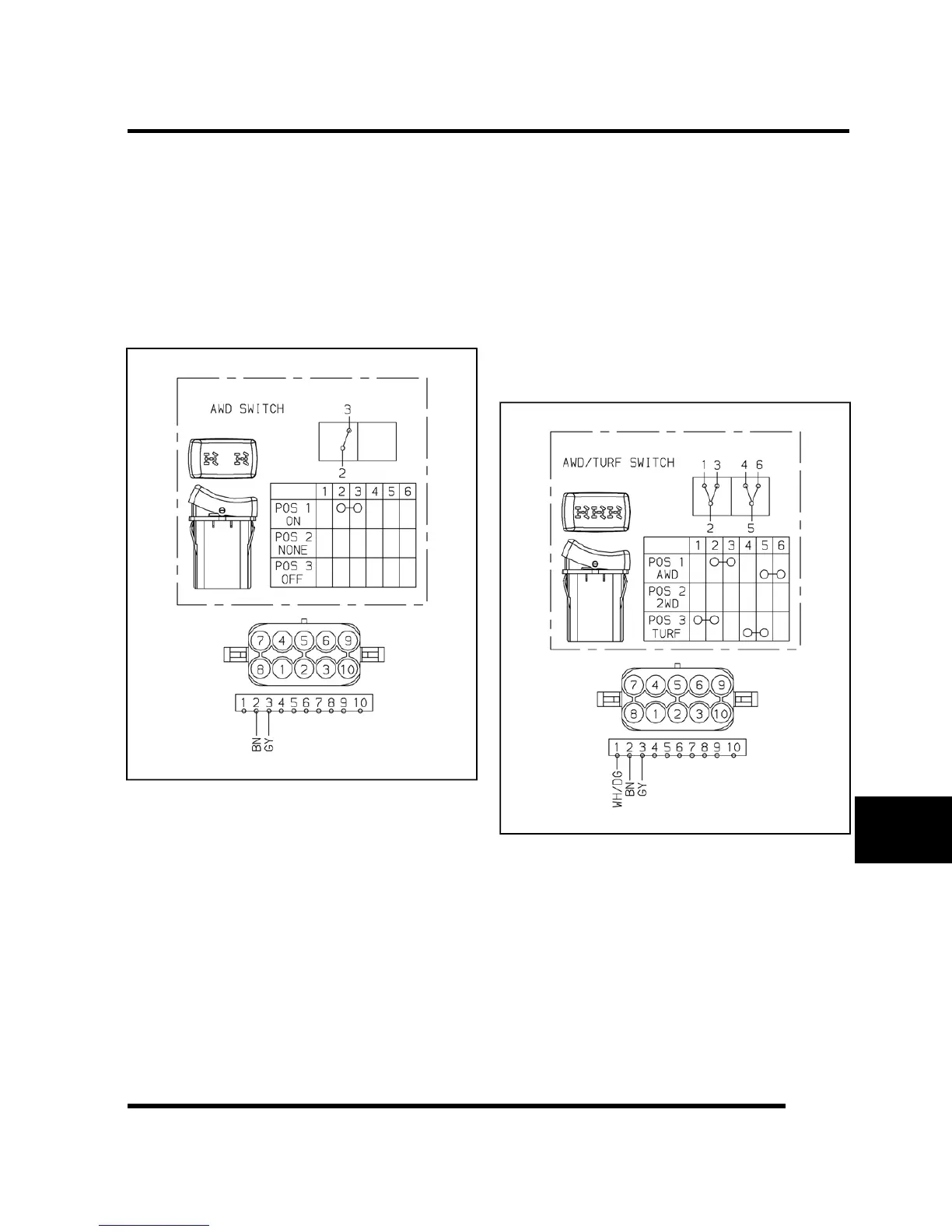

AWD / 2WD Switch
1. Disconnect the AWD / 2WD switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 2 sets of outputs (AWD / 2WD). If
any of the tests fail, replace the switch assembly.
• Move the switch to AWD (ON). There should be
continuity between switch pins 2 and 3.
• Move the switch to 2WD (NONE / OFF). There
should be no continuity between any pins.
AWD / 2WD / TURF Switch (INT’L)
1. Disconnect the AWD / 2WD / TURF switch harness
by depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (AWD / 2WD /
TURF). If any of the tests fail, replace the switch
assembly.
• Move the switch to AWD. There should be
continuity between switch pins 2 and 3; 5 and 6.
• Move the switch to 2WD. There should be no
continuity between any pins.
• Move the switch to TURF. There should be
continuity between switch pins 1 and 2; 4 and 5.
ELECTRICAL
