9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
ENGINE COOLING SYSTEM
Cooling System Specifications
CONDITION
COOLANT TEMP °F (°C)
Room Temperature 68° F (20° C)
Thermostat Open 180° F (82° C)
Fan Off
192° F (89° C)
Fan On
198° F (92° C)
Thermostat Full Open 203° F (95° C)
Engine Temperature
Overheat Indicator
233° F (112° C)
Engine Protection
Ignition Misfire
236° F (113° C)
Engine Protection
Shutdown
257° F (125° C)
ITEM SPECIFICATION
Cooling System Capacity 4.9 qts. (4.6 L)
Pressure Cap Relief
13 PSI
Polaris Premium Antifreeze
2871534 - Quart
2871323 - Gallon
Recommended Coolant
Use only high quality antifreeze/coolant mixed with
distilled water in a 50/50 or 60/40 ratio, depending on
freeze protection required in your area.
CAUTION: Using tap water in the cooling system will
lead to a buildup of deposits which may restrict coolant
flow and reduce heat dissipation, resulting in possible
engine damage. Polaris Premium 60/40 Antifreeze/
Coolant is recommended for use in all cooling systems
and comes pre-mixed, ready to use.

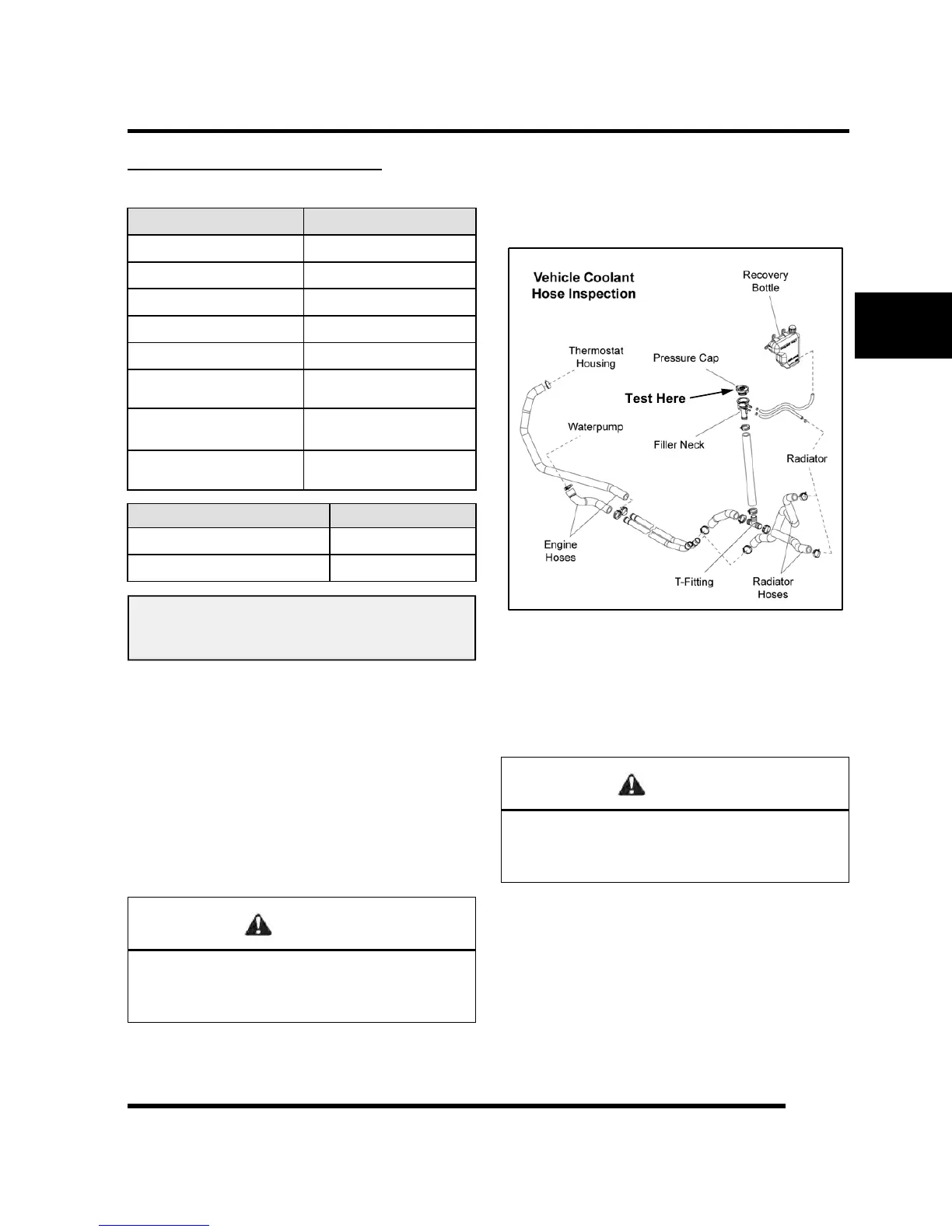

Cooling System Pressure Test
1. Remove the hood from the front cab.
WARNING
Never remove pressure cap when engine is warm or
hot. The cooling system is under pressure and serious
burns may result.
Allow the engine to cool before servicing.
2. Remove pressure cap and pressure test the cooling
system using a commercially available pressure
tester.
3. The system must maintain 10 psi for five minutes or
longer. If pressure loss is evident within five minutes,
check the filler neck, radiator, hoses, clamps and
water pump weep hole for leakage.
Pressure Cap Test
1. Remove the hood from the front cab.
WARNING
Never remove pressure cap when engine is warm or
hot. The cooling system is under pressure and serious
burns may result. Allow the engine to cool before
servicing.
