3.4
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
Oil Pressure Test

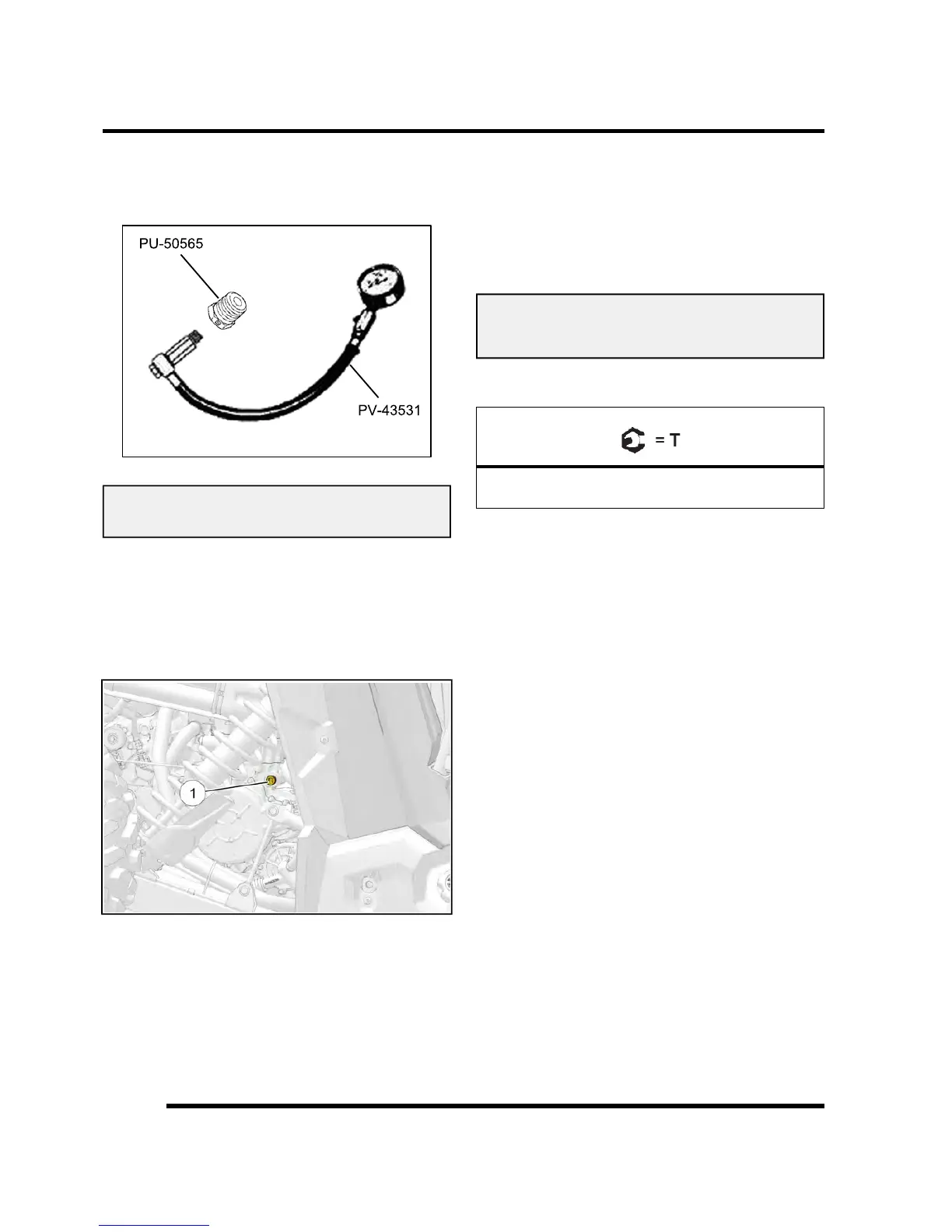

1. Attach the Oil Pressure Gauge Adapter (PU-50565)
to the Oil Pressure Gauge (PV-43531).
Oil Pressure Gauge Adapter: PU-50565
Oil Pressure Gauge: PV-43531
2. Remove the seats, engine service panel, and divider
panel heat shield.
3. Clean the area around the main oil gallery plug (A),
located in the upper crankcase on the MAG side of
the engine.
4. Remove the crankcase gallery plug (Item 1) and
insert the oil pressure adapter.
5. Start engine and allow it to reach operating
temperature, monitoring gauge indication.
NOTE: Test results are based on the use of the
recommended engine oil (Polaris PS-4 or PS-4
Extreme Duty) at operating temperature, and may
vary considerably if any other oil is used or if
engine is not up to temperature.
Oil Pressure Specification (Engine Hot):
Minimum @ 1200 RPM: 10 PSI
Minimum @ 7000 RPM: 40 PSI
6. Upon assembly, torque the crankcase gallery plug to
specification.
Crankcase Oil Gallery Plug:
11 ft-lbs (15 Nm)
ENGINE
