Polaris 2014 RZR XP 1000 Service Manual

7.16
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
FRONT GEARCASE / CENTRALIZED HILLIARD

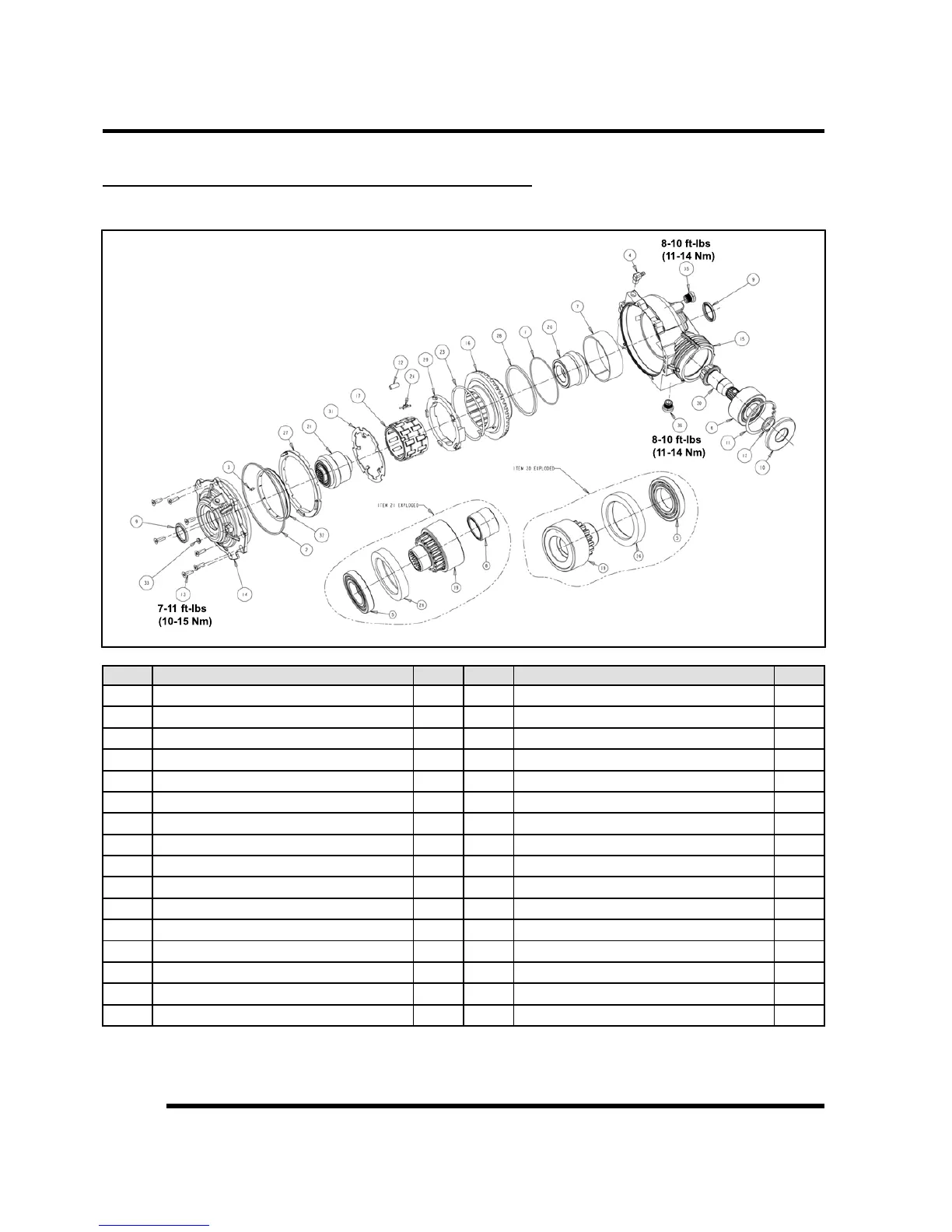

Centralized Hilliard Assembly View
REF# DESCRIPTION
QTY
REF# DESCRIPTION
QTY
1
O-Ring
1 17
Roll Cage
1
2
O-Ring
1 19
Hub / Race Assembly
2
3 Dowel Pin 1 20
Hub Sub-Assembly (Female)
1
4
Vent Hose Fitting
1 21
Hub Sub-Assembly (Male)
1
5
Ball Bearing
2 22 Rollers 20
6
Ball Bearing (Double Row)
1 23
Torsion Spring
1
7
Bushing
1 24
H-Clip Spring
20
8
Bushing
1 26
Nylon Spacer
2
9 Oil Seal 2 27
Backlash Spacer
1
10 Oil Seal 1 28
Ring Gear Spacer
1
11
Retaining Ring, Internal
1 29
Torsion Spring Retainer
1
12
Retaining Ring
1 30 Pinion Gear 1
13
Cover Screws, M6 (T30 Torx)
7 31 Armature Plate
1
14
Cover Plate Assembly
1 32 AWD Coil 1
15
Gearcase Housing
1 35
Fill Plug
1
16
Clutch Housing (Ring Gear)
1 36
Drain Plug, Magnetic
1
FINAL DRIVE
