9.22
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

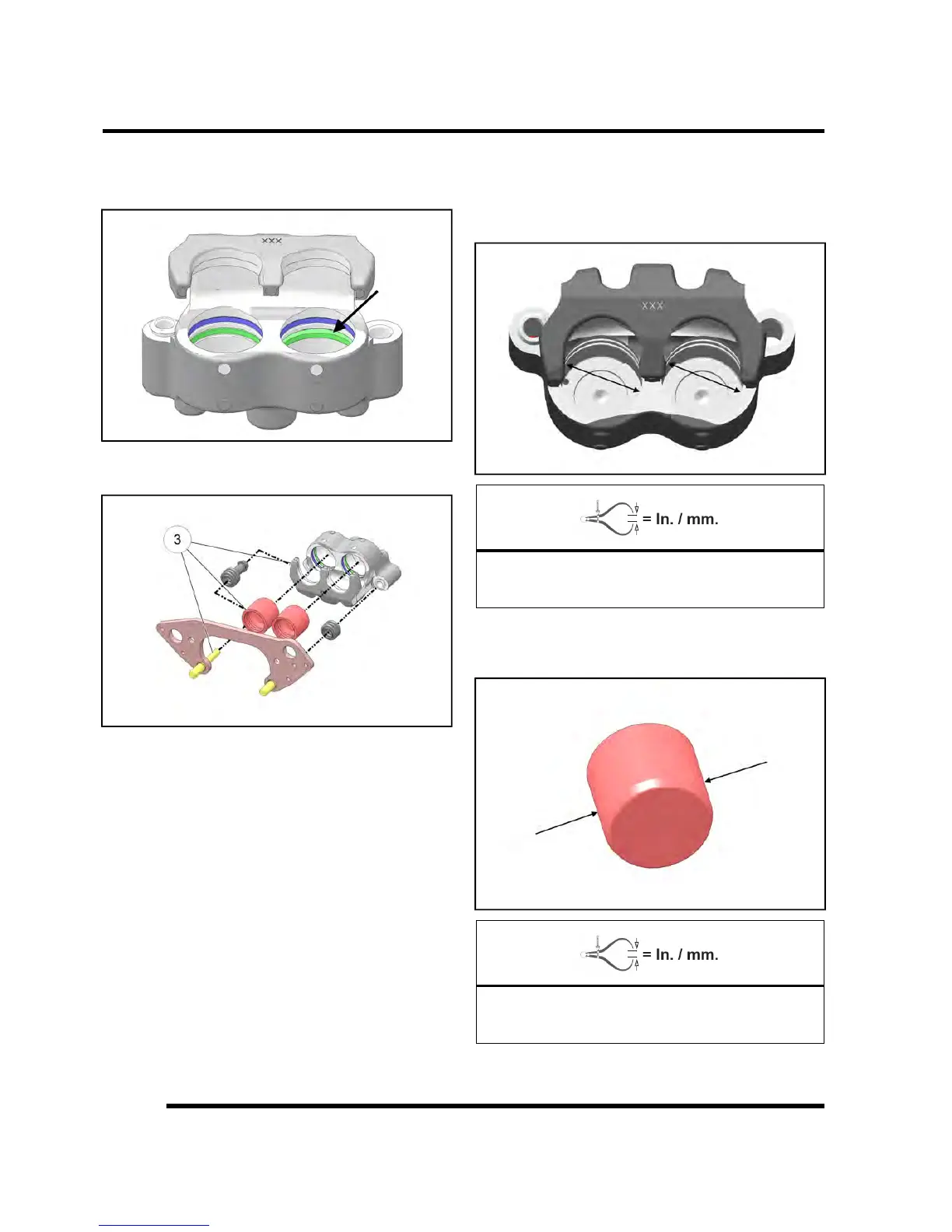

5. Once the pistons are removed, use a pick to carefully
remove the square O-rings from the caliper. O-rings
should be replaced during caliper service.
6. Clean the caliper body, pistons and retaining bracket
(Item 3) with brake cleaner or alcohol.
NOTE: Be sure to clean seal grooves in caliper
body.
Caliper Inspection
1. Inspect caliper body for nicks, scratches, pitting or
wear. Measure bore size and compare to
specifications. Replace if damaged or worn beyond
service limit.
Front Caliper Piston Bore I.D.:
Std: 1.373” (34.87 mm)
Service Limit: 1.375” (34.93 mm)
2. Inspect piston for nicks, scratches, pitting or wear.
Measure piston diameter and replace if damaged or
worn beyond service limit.
Front Caliper Piston O.D.:
Std: 1.370” (34.80 mm)
Service Limit: 1.368” (34.75 mm)
BRAKES
