7.12
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

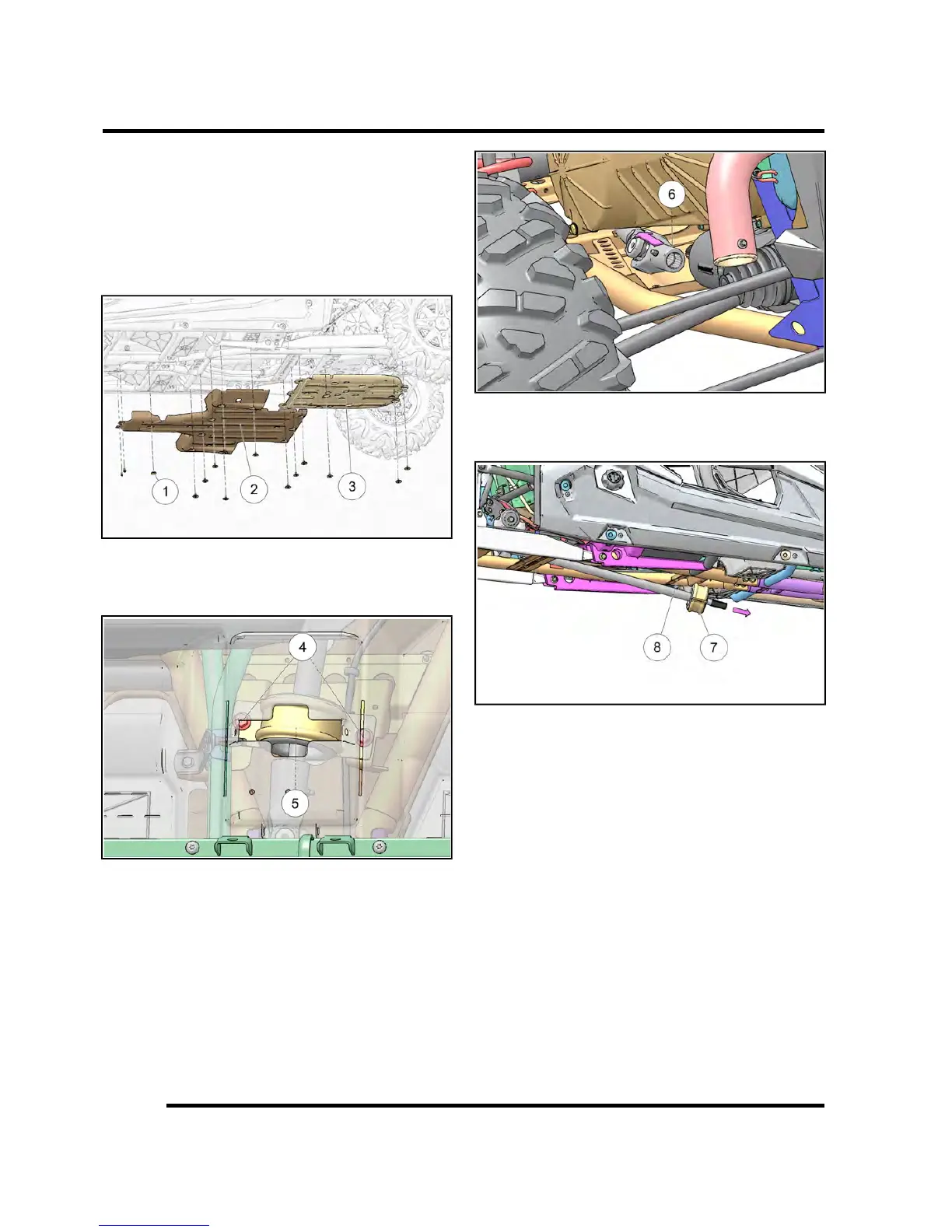

Rear Prop Shaft Removal XP 4
1. Remove all seats.
2. Remove the front and rear center consoles (see Body
Component Removal - Rocker Panels, Rear Console
and Floor XP 4).
3. Remove the fasteners (Item 1) from center (Item 2)
and rear skid plates (Item 3).
4. Remove center and rear skid plates.
5. Remove the fasteners (Item 4) securing the support
bearing cover (Item 5) to the frame.
6. Move the prop shaft support bearing assembly to the
drivers side to slide the rear prop shaft yoke (Item 6)
off the transmission output shaft.
7. Slide the prop shaft to the rear of the vehicle until the
front of the shaft clears the frame support and slide
the prop shaft forward out of the vehicle.
Rear Prop Shaft Installation XP 4
1. Reverse the appropriate “Rear Prop Shaft Removal”
procedure to reinstall the rear prop shaft.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Align the front and rear prop shafts and slide them
together.
FINAL DRIVE
