2
2.13
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

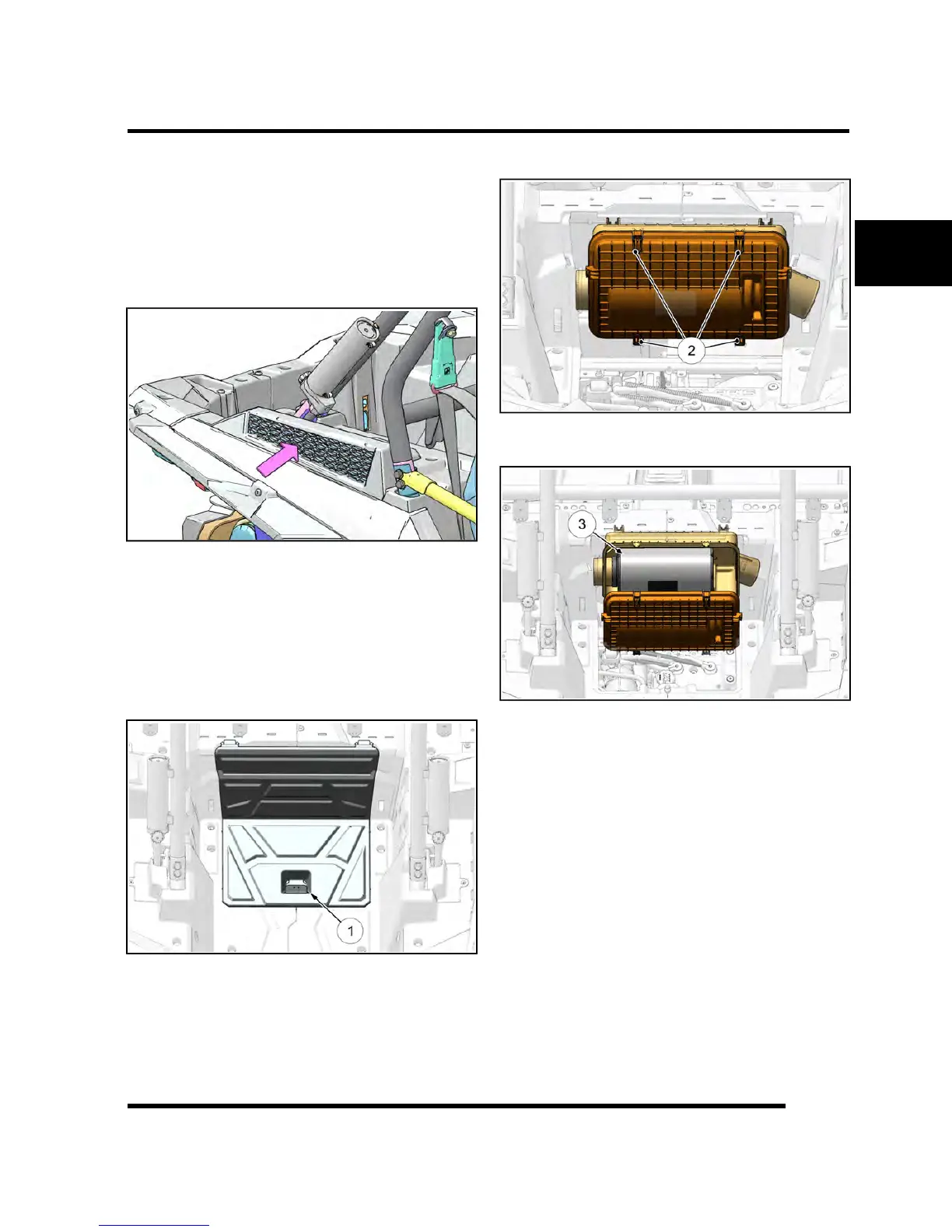

Engine Intake Pre-Filter Service
It is recommended that the engine intake pre-filter be
inspected daily. The filter should be inspected using the
following procedure:
1. The engine intake pre-filter is located just above the
right rear wheel fender.
2. Loosen the knob on top of the assembly and lift up to
disengage the tab from the cargo box.
3. Inspect the pre-filter. If necessary, clean with soapy
water and dry with low pressure compressed air.
Air Filter Service
Inspect the air filter at the intervals outlined in the
Periodic Maintenance Chart. In extremely dusty
conditions, air filter replacement will be required more
often.
1. Remove the cargo box access panel (Item 1).
2. Disengage the four cover latches (Item 2).
3. Pull cover rearward far enough to remove air filter
(Item 3).
4. Inspect the air box for oil or water deposits. Wipe
away any deposits with a clean shop towel.
NOTE: If the filter has been soaked with fuel or
oil it must be replaced.
5. Inspect the air filter and replace if necessary.
NOTE: DO NOT attempt to clean the air filter.
6. Place the air filter into the air box and reinstall the air
box cover.
NOTE: Be sure the lower tabs on the air box
cover are properly engaged into the airbox.
7. Engage the cover latches.
8. Reinstall the cargo box access panel.
MAINTENANCE
