9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
TRANSMISSION SERVICE (INT’L)

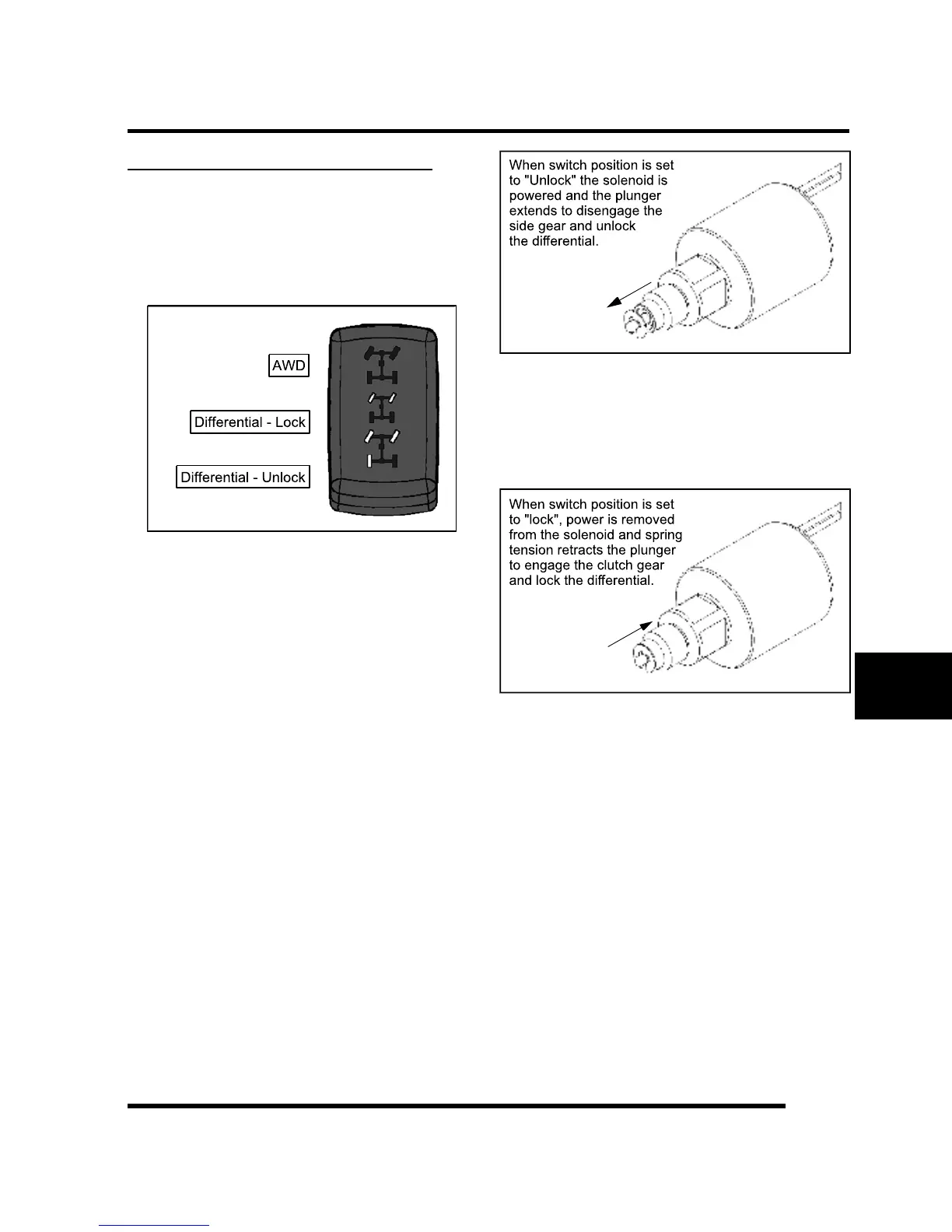

Differential Operation
The INT’L transmission has two traction operational
modes: Differential Lock and Differential Unlock. Locking
the rear differential is beneficial in low traction and rough
terrain conditions. Unlocking the rear differential makes
maneuvering easier and minimizes damage to terrain.
When “Differential-Unlock” is selected, the rear
differential becomes unlocked for tighter turns. An
electrical solenoid mounted in the rear portion of the
gearcase actuates the shift fork. The solenoid plunger
extends out to move the fork and slides the engagement
dog away from the side gear that is part of the planetary
differential assembly. This unlocks the rear differential.
The rear drive shafts are now dependent on the
differential allowing for tighter turns.
When “Differential-Lock” is selected, power is removed
from the electrical solenoid allowing the solenoid plunger
to retract. Spring tension moves the shift fork back into
place and mates the engagement dog to the side gear
that is part of the planetary differential assembly. This
locks the rear differential as a solid rear axle, increasing
traction.
