7.26
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

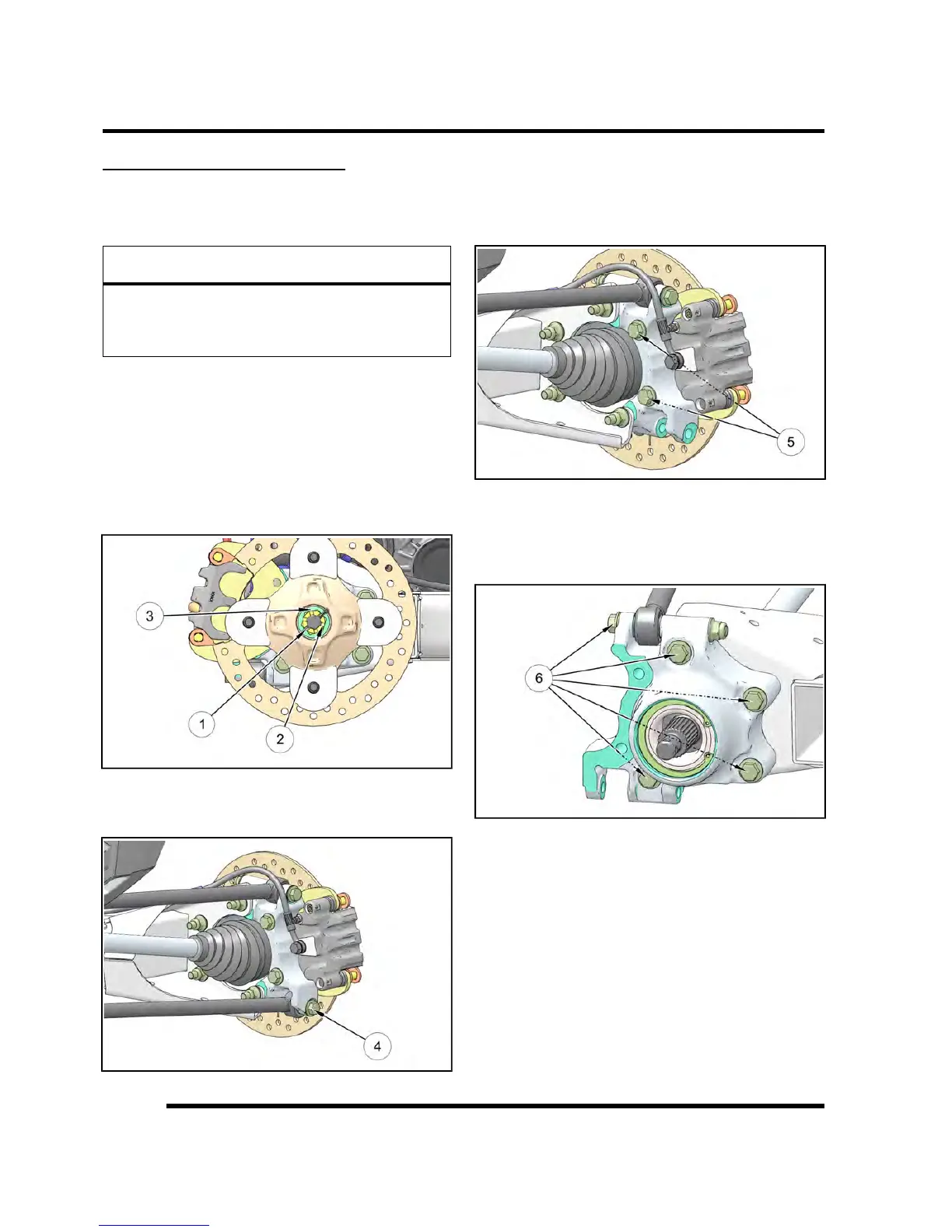

REAR BEARING CARRIER
Bearing Carrier Inspection / Removal
1. Elevate rear of vehicle and safely support machine
under the frame area.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
2. Check bearings for side play by grasping the top and
bottom of the tire firmly and checking for movement.
The tire should rotate smoothly without binding or
rough spots.
3. Remove the four wheel nuts and rear wheel.
4. Remove the cotter pin (Item 1) and loosen the rear
wheel hub castle nut (Item 2). Remove the nut, and
(2) cone washers (Item 3) from the rear wheel hub
assembly.
5. Remove the lower radius rod outer mounting bolt
(Item 4), nut and washer from the bearing carrier.
Swing radius rod down. Discard the nut.
6. Remove the two brake caliper mounting bolts (Item
5). Remove the rear brake caliper assembly.
7. CAUTION: Do not hang the caliper by the brake line.
Use wire to hang caliper to prevent damage to the
brake line.
8. Remove the rear wheel hub and brake disk
assembly.
9. Remove the five remaining bolts (Item 6) that attach
the rear bearing carrier to the trailing arm. Discard
the nuts.
FINAL DRIVE
To Next Page
