9.16
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

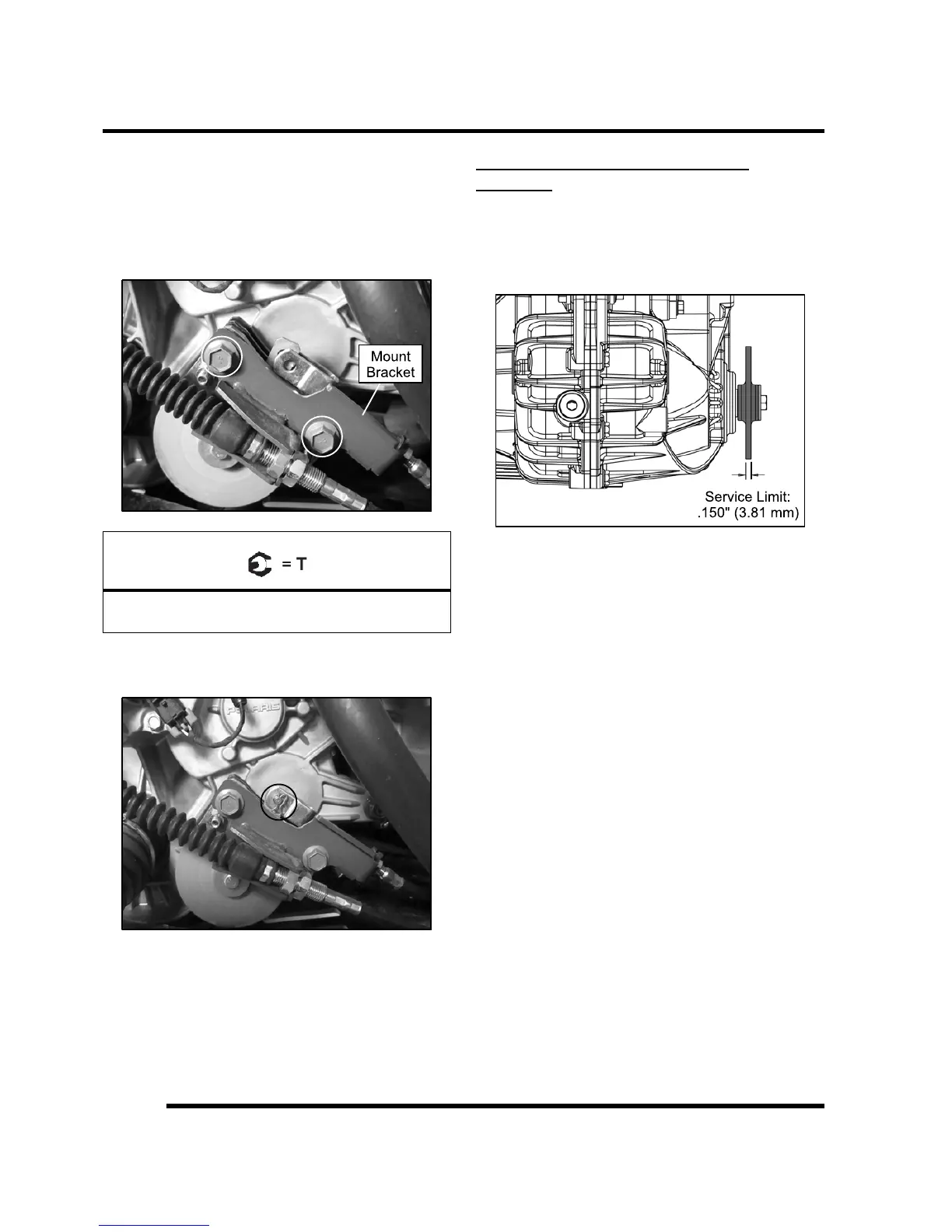

Caliper Installation
1. Install the parking brake caliper over the brake disc.
Align the caliper mounting sleeves with the holes in
the mount bracket.
2. Install and tighten the two caliper mount / shift cable
bracket fasteners to specification.
Parking Brake Caliper - Mount Bracket Bolts:
37 ft-lb (50 Nm)
3. Install the cable, pin and clip pin. Test the park brake
for proper function.
PARKING BRAKE DISC (INT’L
MODEL)
Disc Inspection
1. Measure the brake disc with a micrometer. If the
thickness of the disc is less than specified, replace
the brake disc (see “Disc Replacement”).
BRAKES
