3.72
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

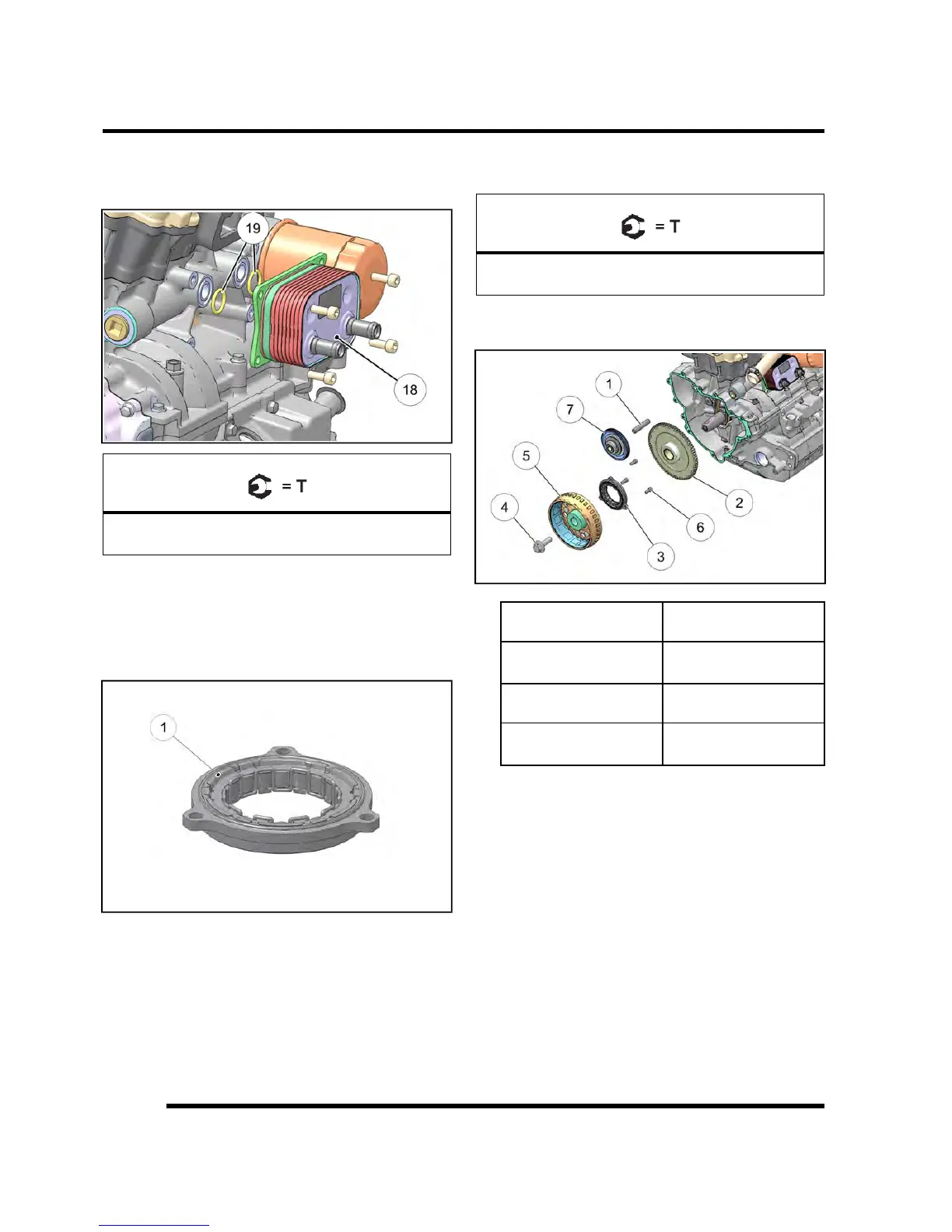

26. Reinstall the oil cooler (Item 18), if previously
removed. Use new O-rings (Item 19) upon
installation. Torque fasteners to specification
Oil Cooler bolts:
7 ft-lbs (10 Nm)
27. Proceed to Flywheel Installation, page 3.73 and
then Cylinder Head Installation, page 3.75.
Starter One-Way Clutch Assembly
1. Install one-way clutch in clutch hub with flange of
clutch (Item 1) engaged in recess.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Place one-way clutch on flywheel and install the
three screws. Torque screws to specification.
One-Way Clutch Retaining Screws:
9 ft-lb (12 Nm)
4. Reassemble starter one-way clutch and gear using
the following illustration.
1. Torque Limit Gear
Pin
5. Flywheel
2. Starter Gear 6. Screws 9 ft-lb (12
Nm)
3. One Way Clutch
Asm.
7. Torque Limit Gear
Asm.
4. Bolt 133 ft-lbs (180
Nm)
5. If starter gear was replaced, inspect the torque limit
gear.
6. After assembly, be sure the starter gear rotates in the
clockwise direction only.
ENGINE
