Polaris 2014 RZR XP 1000 Service Manual

7
7.33
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
DRIVE SHAFT CV JOINT / BOOT
REPLACEMENT
Drive Shaft / CV Joint Handling Tips
Care should be exercised during drive shaft removal or
when servicing CV joints. Drive shaft components are
precision parts.
Cleanliness and following these instructions is very
important to ensure proper shaft function and a normal
service life.
• The complete drive shaft and joint should be
handled by getting hold of the interconnecting
shaft to avoid disassembly or potential damage to
the drive shaft joints.
• Over-angling of joints beyond their capacity could
result in boot or joint damage.
• Make sure surface-ground areas and splines of
shaft are protected during handling to avoid
damage.
• Do not allow boots to come into contact with sharp
edges or hot engine and exhaust components.
• The drive shaft is not to be used as a lever arm to
position other suspension components.
• Never use a hammer or sharp tools to remove or
to install boot clamps.
• Be sure joints are thoroughly clean and that the
proper amount and type of grease is used to refill
when joint boots are replaced and when joints are
cleaned. Refer to text for grease capacity of CV
joints and CV joint boots.

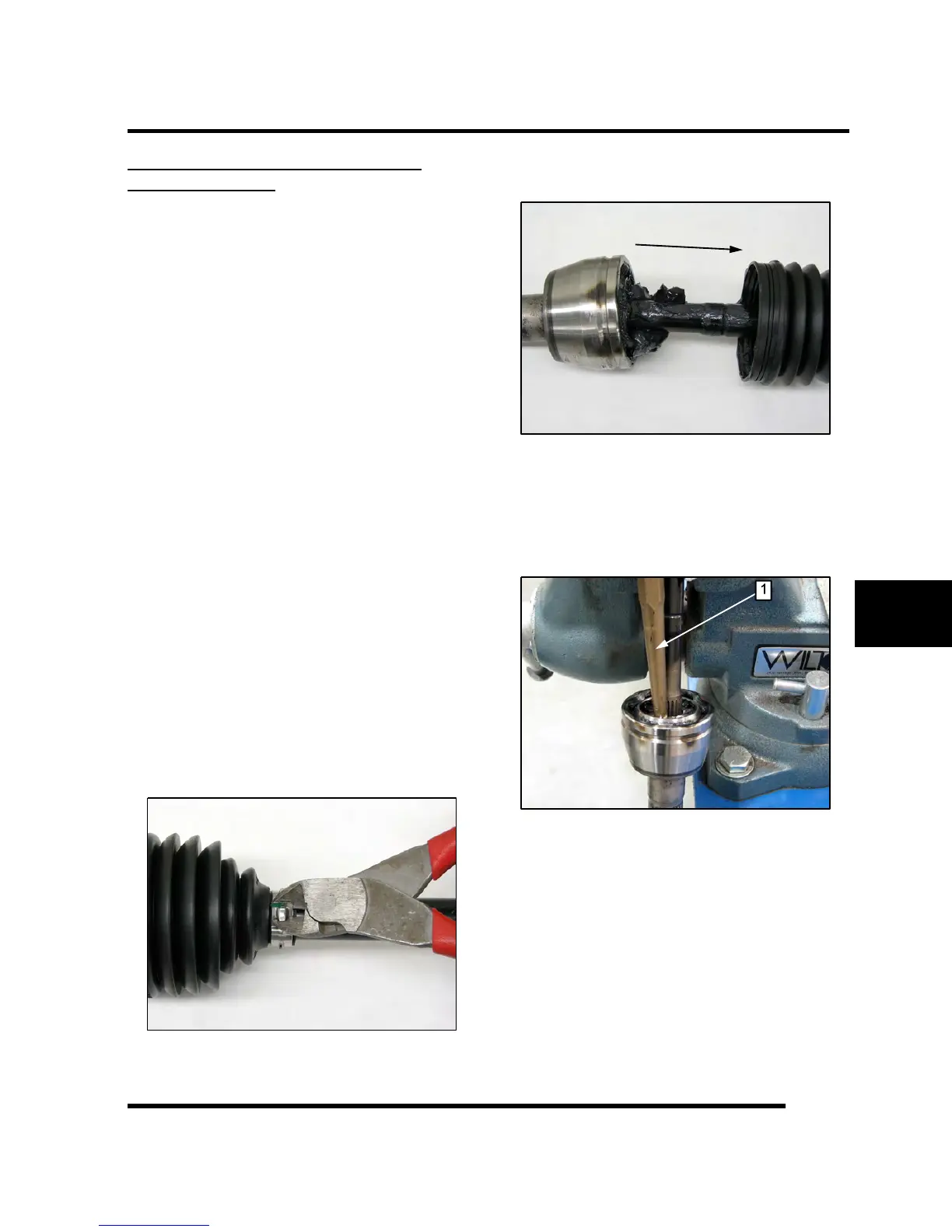

Outer CV Joint / Boot Replacement
1. Use a side cutters to cut and discard the boot
clamps.
2. Remove the large end of the boot from the CV joint
and slide the boot down the shaft.
3. Clean the grease from the face of the joint.
4. Place the drive shaft in a soft-jawed vise. Using a
soft-faced hammer, or brass drift (Item 1) , strike the
inner race of the joint to drive the joint off the drive
shaft. Be sure to tap evenly around the joint to avoid
binding.
NOTE: Tap on inner race only!
FINAL DRIVE
