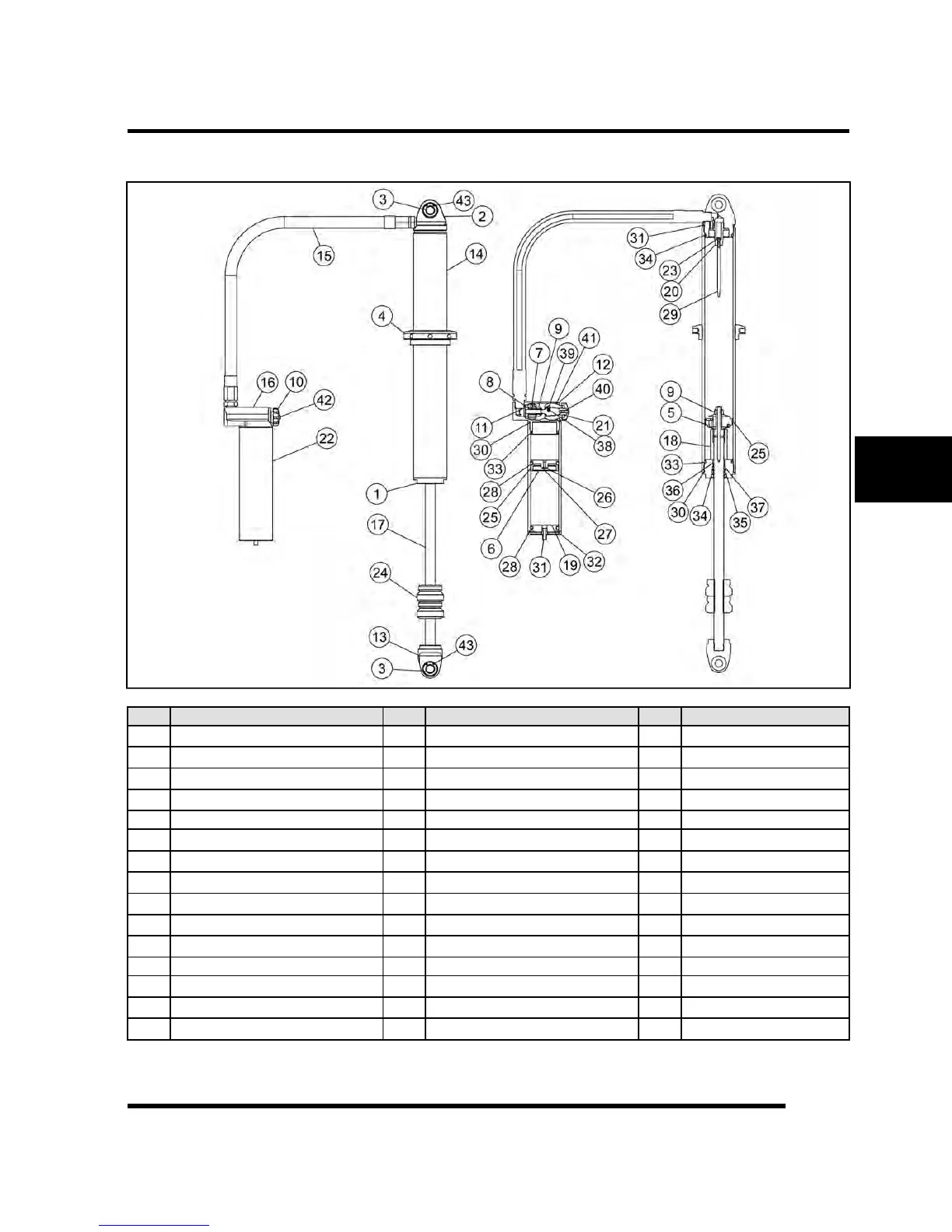

Walker Evans™ 2.5" Rear Shock
REF DESCRIPTION REF DESCRIPTION REF DESCRIPTION
1. Seal Head Asm. 16.
Adjuster Mount
31. Schraeder Valve
2.
Bearing w/ Needle Slot
17. Needle Shaft 32.
Snap Ring
3.
Spherical Bearing
18.
Spacer
33.
O-Ring
4.
Spring Nut
19.
End Cap
34.
Wiper
5. Piston 20. Needle Bolt 35. Shaft Seal
6. Reservoir Piston 21.
Adjuster Nut
36.
Shaft Bushing (0.750")
7. Check Valve 22.
Reservoir Body
37.
O-Ring
8. Clicker Bolt 23. Bleed Screw 38.
Detent Spring
9.
Crimp Nut
24.
Bump Stop
39. Detent Ball
10.
Adjuster Knob
25. Wear Band 40.
O-Ring
11.
Ball (.250")
26.
O-Ring
41.
O-Ring
12. Retention Nut 27. Screw 42. Screw
13.
9/16 Heim Shaftloop
28.
O-Ring
43.
Snap Ring
14.
Shock Body
29. Needle
15. Hose 30.
O-Ring
