5.31

9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual

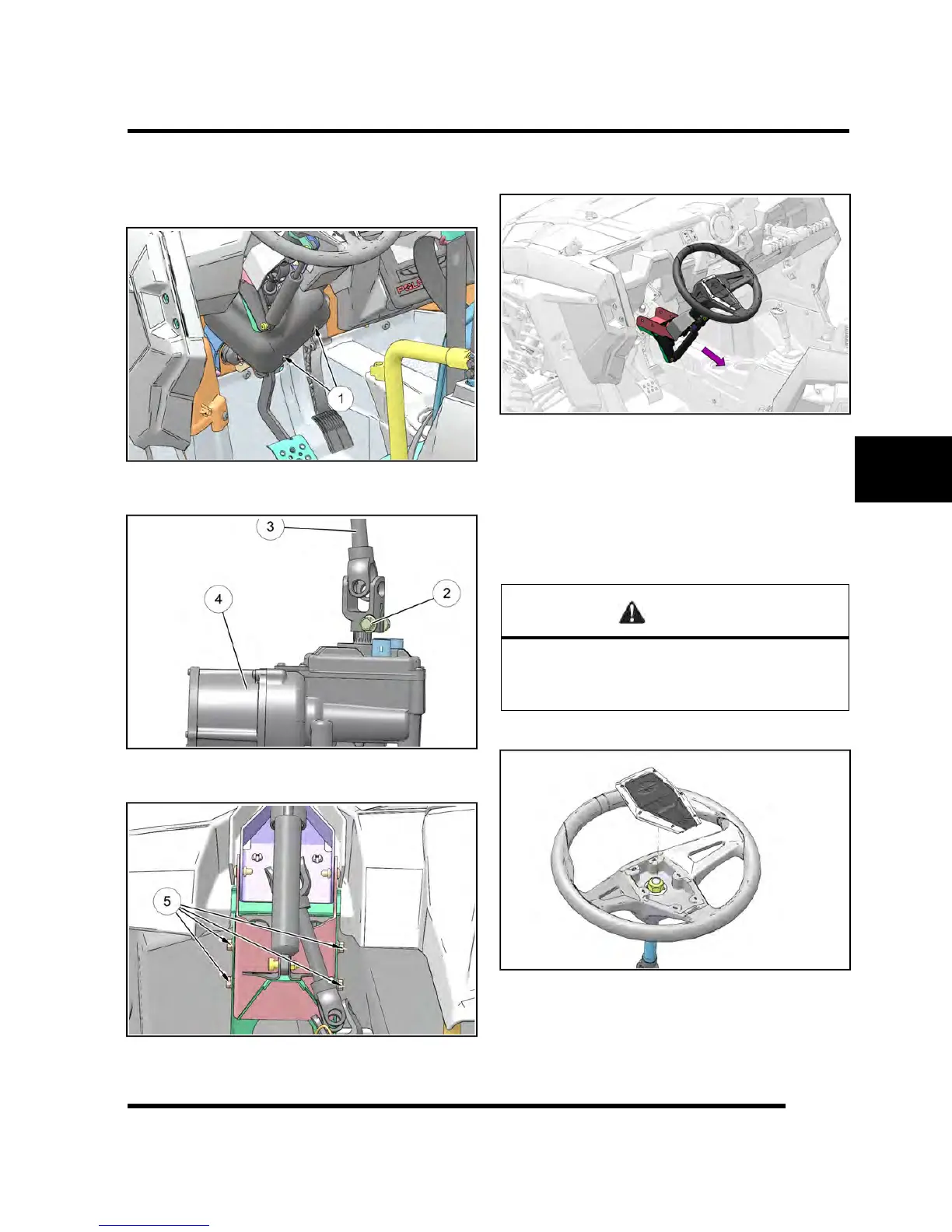

Upper Steering Shaft Removal (EPS Models)

1. Remove the two Torx fasteners (Item 1) retaining the

black plastic cover and remove the cover from the

vehicle.

2. Remove the pinch bolt retaining the upper steering

shaft to the power steering unit.

3. Lift the steering wheel up and remove the four

fasteners (Item 5) that retain the pivot tube.

4. Remove the steering shaft, pivot tube and steering

wheel from the vehicle as an assembly.

5. If replacing the upper steering shaft or steering

wheel, refer to Steering Wheel Removal (EPS

Models), page 5.31.

Steering Wheel Removal (EPS Models)

1. Remove the upper steering shaft, pivot tube and

steering wheel as an assembly before attempting to

remove the steering wheel. Refer to Upper Steering

Shaft Removal (EPS Models), page 5.31.

CAUTION

Striking the steering wheel or steering shaft

while installed in the vehicle can permanently damage

the EPS unit and cause a

Power Steering Fault.

2. Remove the steering wheel cap.

3. Loosen the nut and back it half way off the steering

shaft.

4. Place the assembly in a vise.

BODY / STEERING / SUSPENSION
