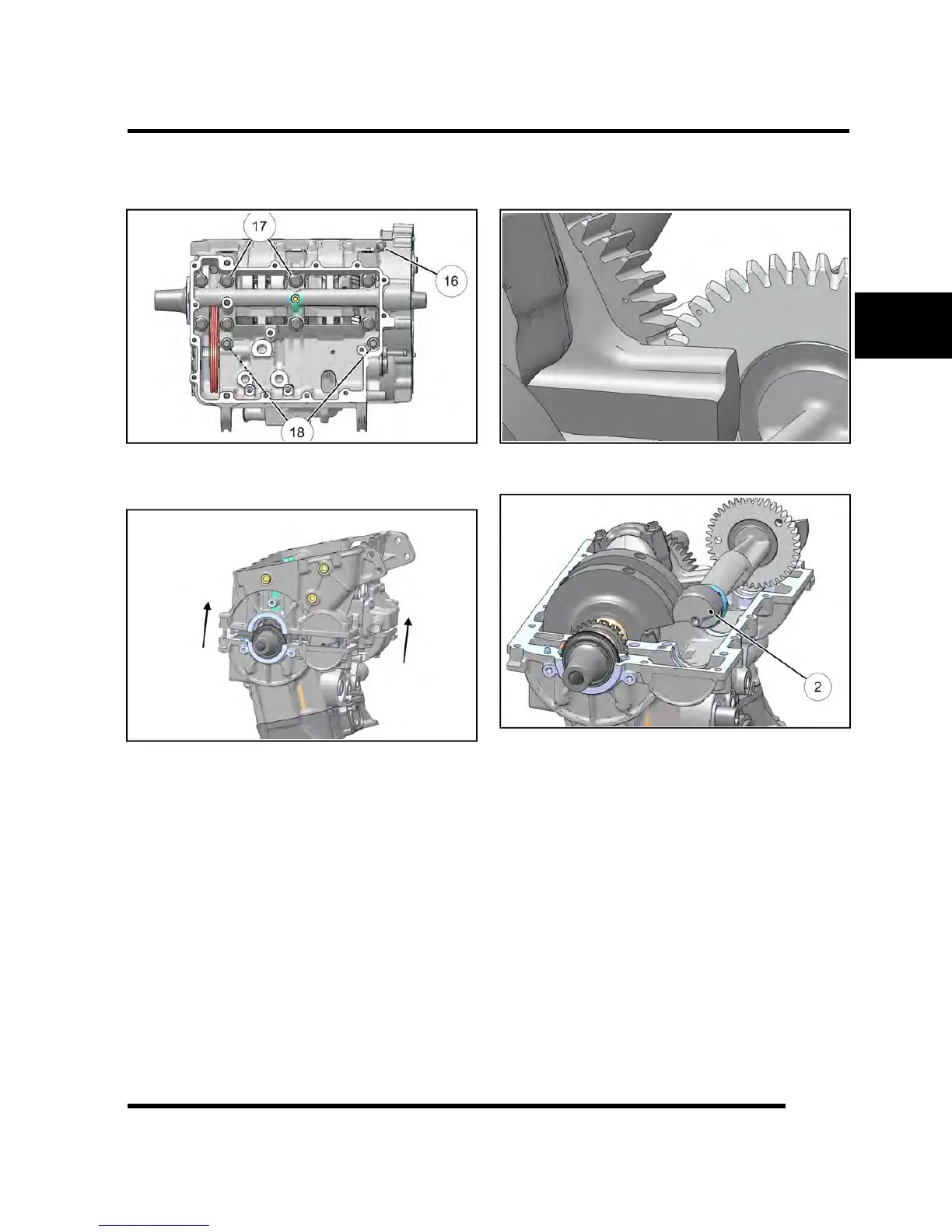

16. Remove the eight M10 (Item 17) , two M8 (Item 18)
and one M6 (Item 16) lower crankcase bolts. Discard
the eight M10 bolts.
17. Tap on the lower crankcase in reinforced areas with
a soft faced hammer to loosen. Carefully lift up and
remove the lower crankcase half.
Balance Shaft Removal / Inspection
1. Perform Crankcase Disassembly / Inspection, page
3.46 procedure.
2. Note timing marks on balance shaft and crankshaft
drive gears. Shafts must be properly timed upon
assembly.
3. Carefully rotate the balance shaft (Item 2) and
remove it from the crankcase.
4. Inspect the balance shaft gear teeth for damage.
