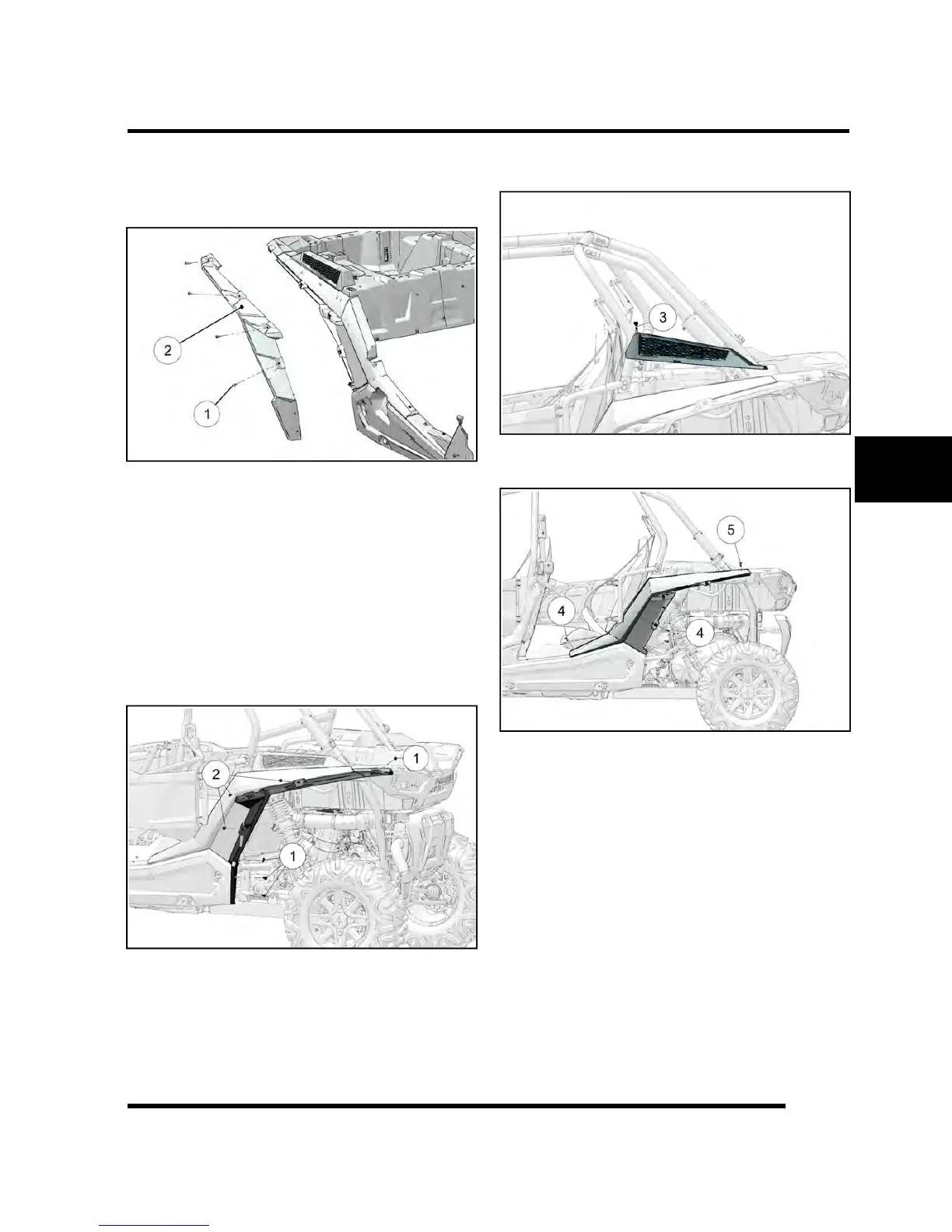

Rear Fender / Fender Flare Removal

1. Remove the four T27 Torx screws (Item 1). Remove

the three plastic rivets on the lower side of the rear

fender flare.

2. Remove the fender flare (Item 2) from the vehicle.

3. Remove the four plastic rivets (one of them hidden

on the inside) retaining the rear fender.

4. Remove the one T-40 Torx screw on the top rear of

the fender.

5. Remove it from the vehicle.

Rear Fender Flare / Rear Fender Removal

XP 4

1. Remove the three plastic rivets on the lower fender

flare (Item 1). Remove the four T40 Torx screws (Item

2).

2. Remove the fender flare from the vehicle.

3. Remove air intake cover (Item 3) if removing left side

fender.

4. Remove the plastic rivets (Item 4) and one T40 Torx

fastener (Item 5) retaining the rear fender.

5. Remove fender from the vehicle.

Cargo Box Assembly Removal

1. Remove both seats.

2. Remove the PVT pre-filter (driver side) and air intake

pre-filter (passenger side) assembly.

3. Remove the T-25 Torx screw retaining each shock

reservoir hose cover and remove the cover..

4. Loosen the shock reservoir clamps and maneuver

the reservoir through the hole in the box.

NOTE: Do NOT let the reservoir hang by the

hose. Use a wire or string to restrain the

reservoir.
