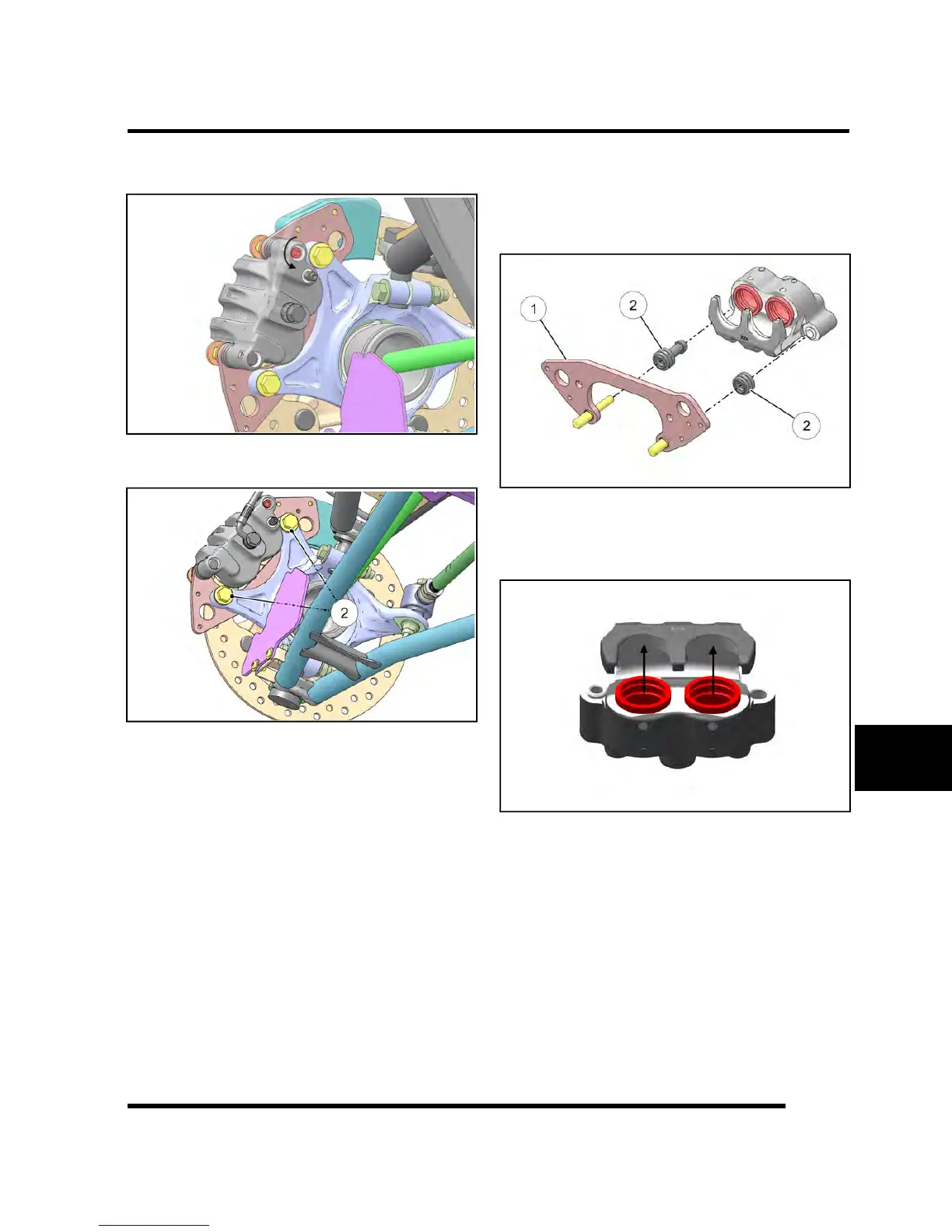

5. Loosen brake pad adjustment set screw 2-3 turns to
allow brake pad removal after the caliper is removed.
6. Remove the two caliper mounting bolts (Item 2) and
remove the caliper assembly from the front hub.
Caliper Disassembly
1. Remove both brake pads from the caliper (see
“FRONT BRAKE PADS - Pad Removal”).
2. Remove mount bracket assembly (Item 1) and dust
boots (Item 2).
3. Thoroughly clean the caliper before disassembly and
prepare a clean work area for disassembly.
4. Use a commercially available caliper piston pliers to
extract the pistons from the caliper.
NOTE: Do not remove the caliper pistons with a
standard pliers. The piston sealing surfaces will
become damaged if a standard pliers is used.
BRAKES
