9.24
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
4. Install the adjustment set screw and turn clockwise
until stationary pad contacts disc, then back off 1/2
turn (counterclockwise).
5. Perform brake bleeding procedure as outlined earlier
in this chapter.
6. Install wheel and torque wheel nuts to specification.
Wheel Nuts:
120 ft-lbs (163 Nm)
7. Field test unit for proper braking action before putting
into service. Inspect for fluid leaks and firm brakes.
Make sure the brake is not dragging when pedal is
released. If the brake drags, re-check assembly and
installation.
NOTE: If new pads are installed, refer to Brake
Burnishing Procedure, page 9.19.
FRONT BRAKE DISC
Disc Runout

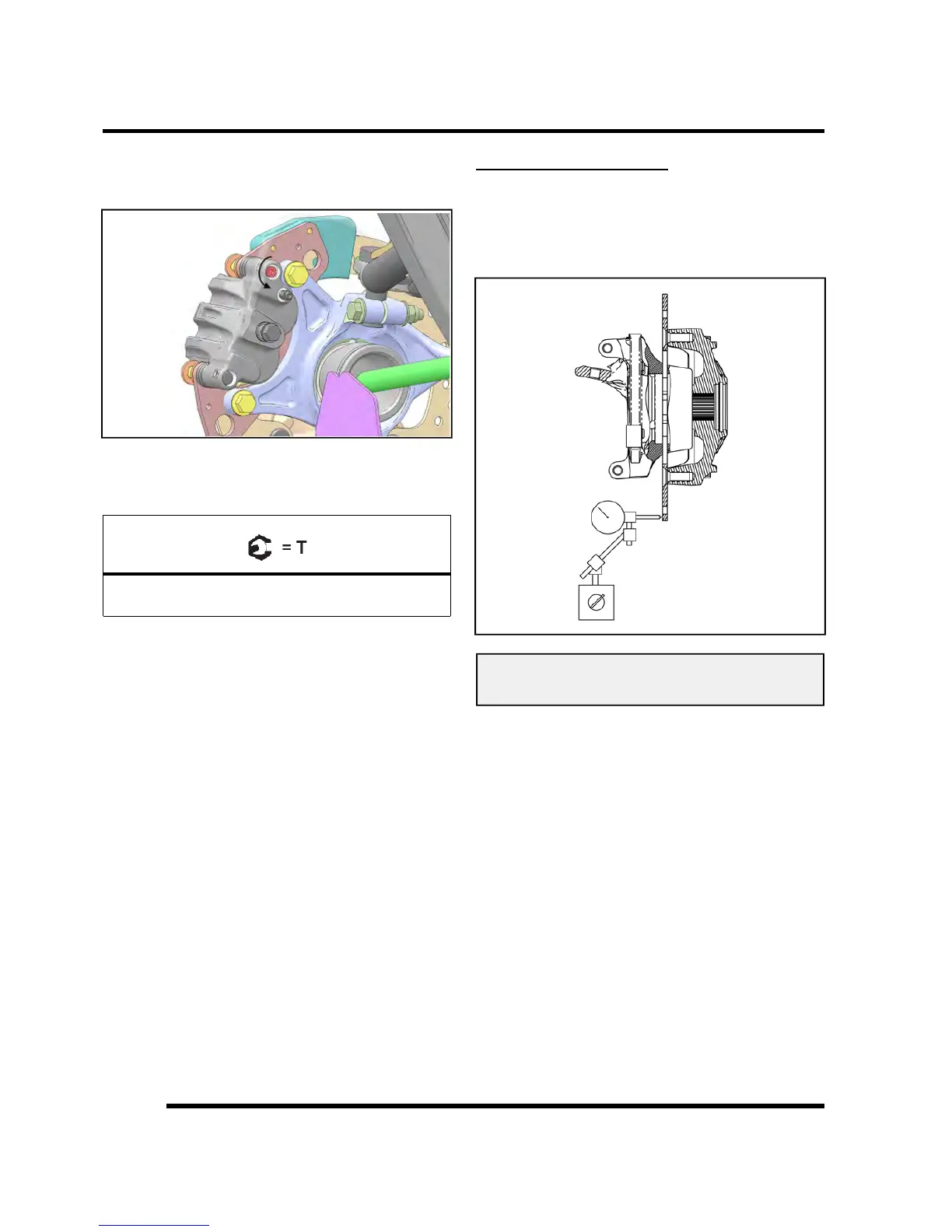

1. Mount dial indicator as shown to measure disc
runout. Slowly rotate the disc and read total runout
on the dial indicator. Replace the disc if runout
exceeds specification.
Brake Disc Runout:
Service Limit: 0.010″ (0.254 mm)
BRAKES
