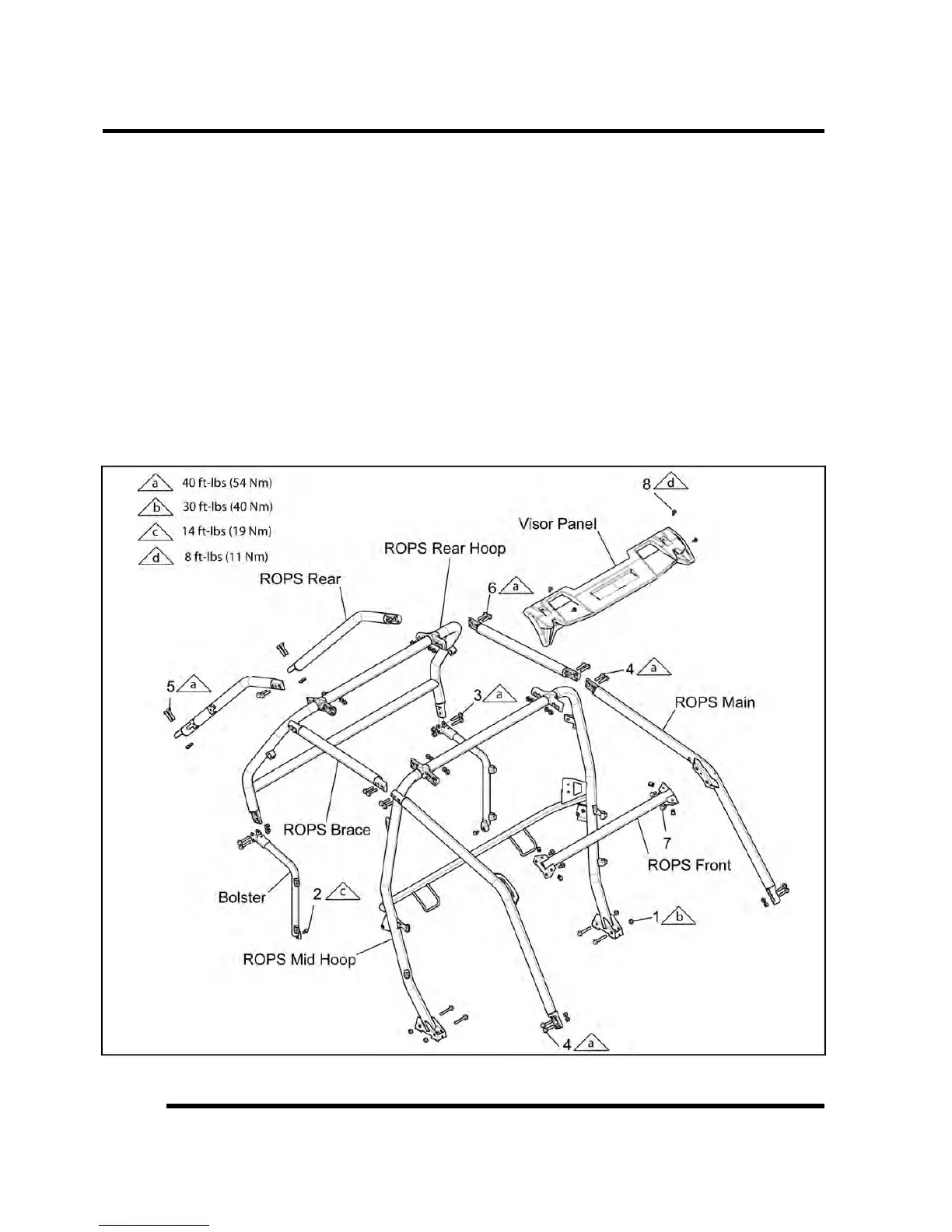

Cab Frame Assembly XP 4
NOTE: Finger tighten all components until cab frame is completely assembled on vehicle then tighten to
specification.
1. Install the ROPS mid-hoop to the frame with M10 x 1.5 x 65 screws and nuts (item 1). Torque to 40 ft-lb (54 Nm).
2. Install hip bolsters onto the main frame with M8 x 1.25 x 20 bolts (item 2). Torque bolts to 14 ft-lb (19 Nm)
3. Install ROPS rear hoop to frame with M10 x 1.25 x 55 bolts and nuts (item 3). Torque to 40 ft-lb (54 Nm)
4. Attach ROPS main to the mid ROPS hoop and front main frame with M10 x 1.5 x 45 screws (item 4). Torque to 40
ft-lb (54 Nm).
5. Install rear ROPS to rear ROPS hoop and rear frame with M10 x 1.5 x 45 screws (item 5). Torque to 40 ft-lb (54
Nm)
6. Install ROPS brace to ROPS mid hoop and ROPS rear hoop with M10 x 1.5 x 45 screws (item 6). Torque to 40 ft-lb
(54 Nm)
7. Install ROPS front to ROPS mains with M10 x 1.5 x 20 screws (item 7). Torque to 40 ft-lb (54 Nm)
8. Install visor panel on front ROPS with M10 x 1.25 x 20 bolts. Torque to 8 ft-lb (11 Nm)
BODY / STEERING / SUSPENSION
