9.20
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
FRONT CALIPER SERVICE

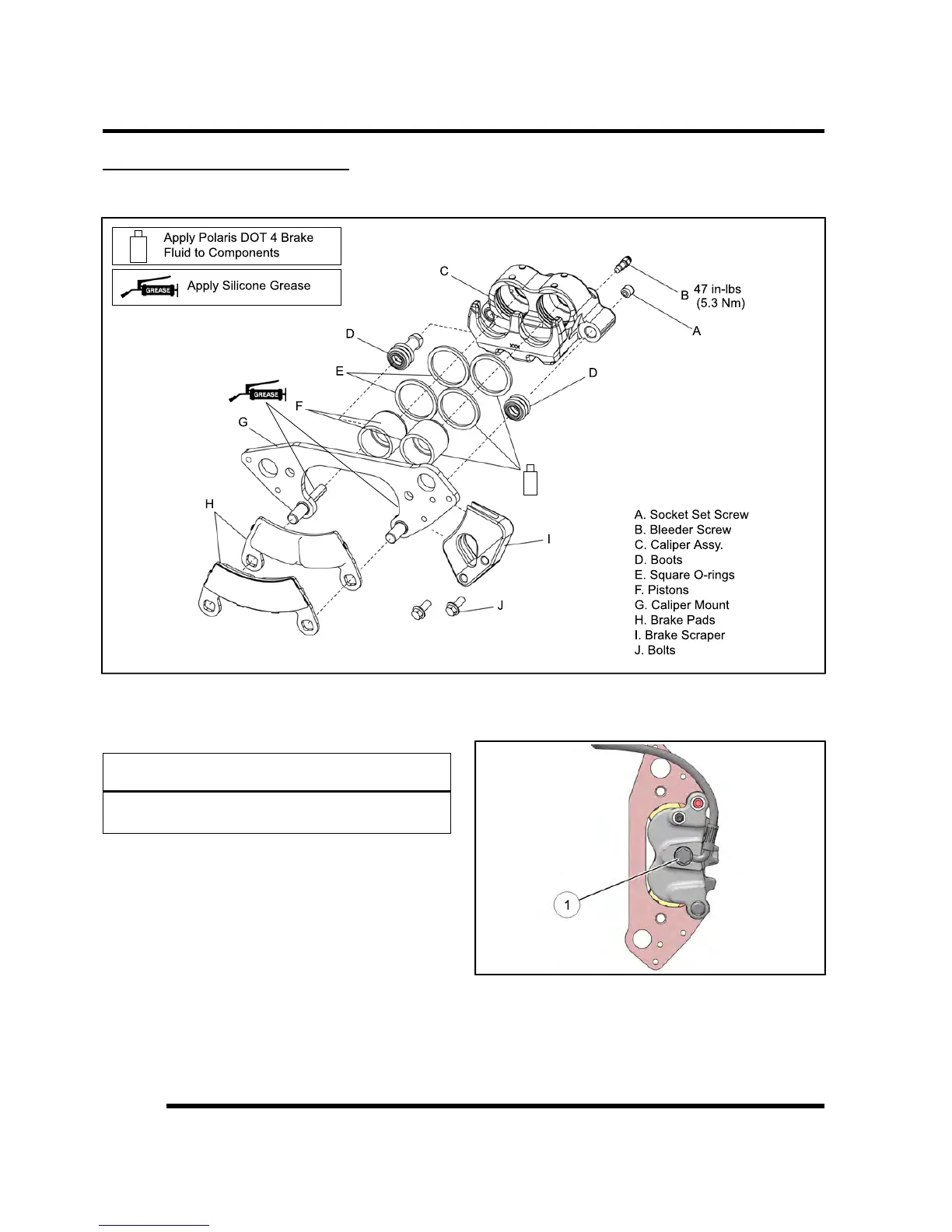

Caliper Assembly View
Caliper Removal
1. Elevate and safely support the front of the vehicle.
2. Remove the four wheel nuts and the front wheel.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake
fluid when removing the line (Item 1). Remove brake
line from caliper.
BRAKES
