10.22
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
6. Adjust the beam to desired position. Repeat the
procedure to adjust the other headlight.
WARNING
Due to the nature of light utility vehicles and where they
are operated, headlight lenses become dirty. Frequent
washing is necessary to maintain lighting quality. Riding
with poor lighting can result in severe injury or death.

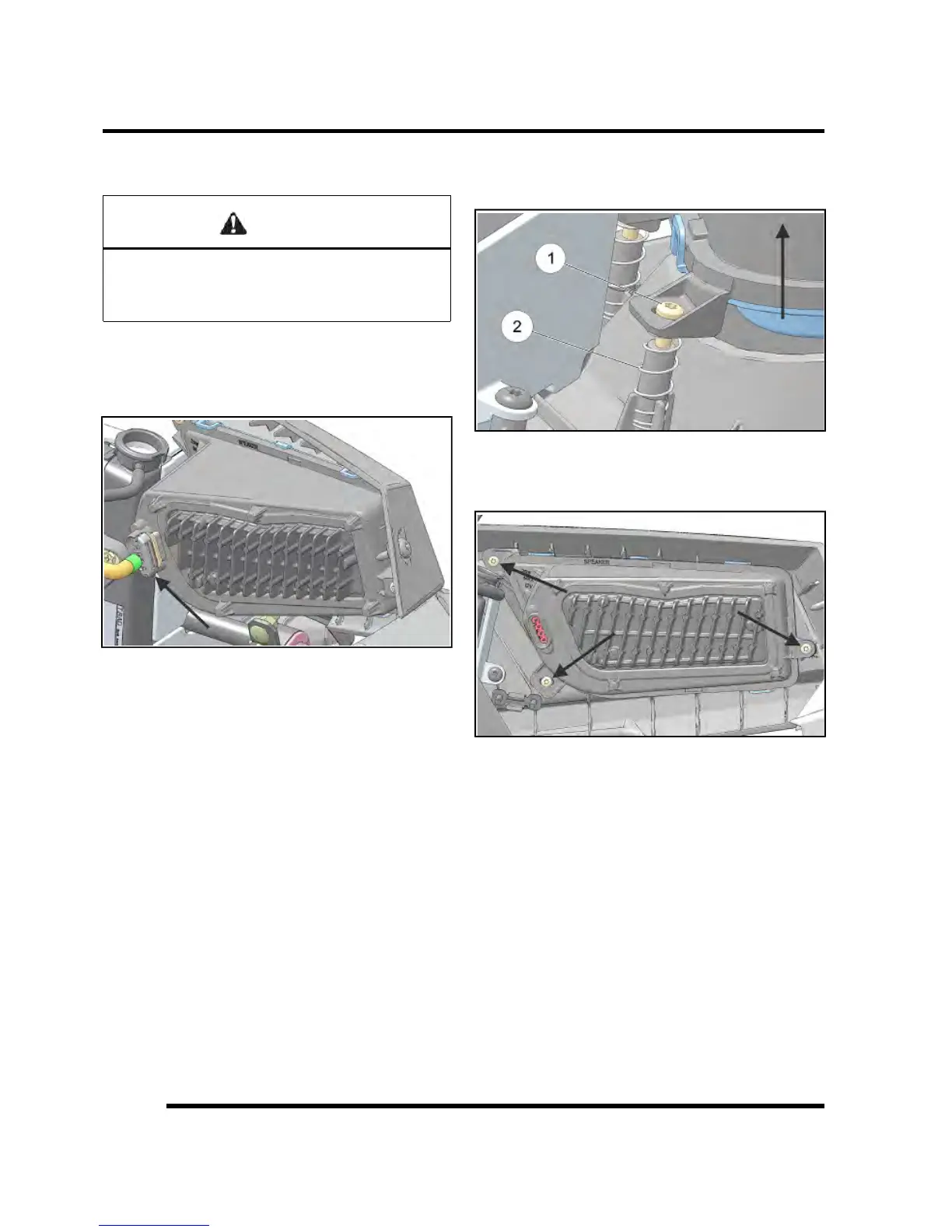

Headlamp Replacement
1. Disconnect wire harness from headlamp assembly.
Be sure to pull on the connector, not on the wiring.
2. Remove the three T-25 headlamp mounting screws
(Item 1) and three adjustment preload springs (Item
2).
NOTE: The front bumper can be removed and
placed face down on a suitable workbench to
ease headlamp replacement (see Chapter 5).
3. Carefully lift and remove headlamp assembly from
the bumper.
ELECTRICAL
