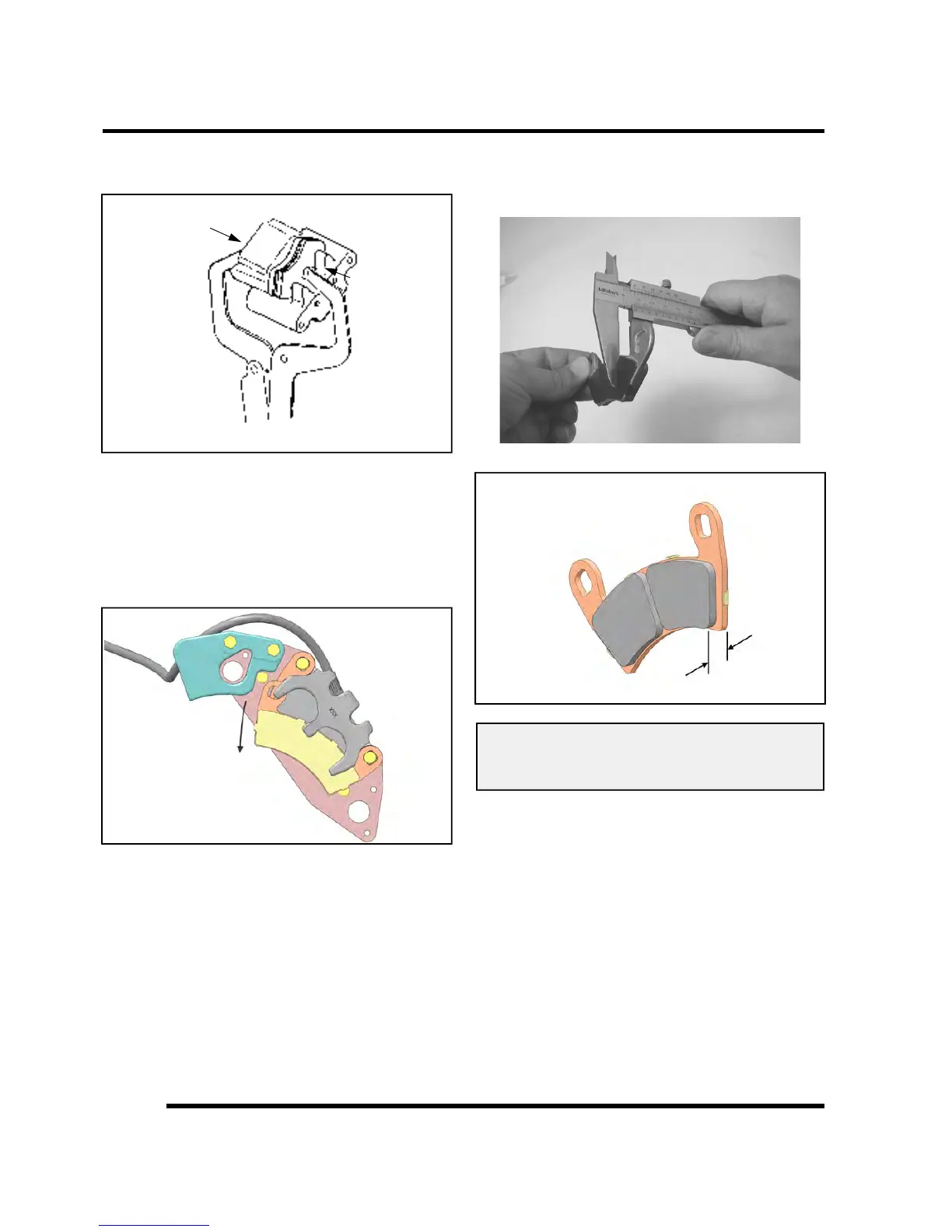

5. Push caliper piston into caliper bore slowly using a
C-clamp or locking pliers with pads installed.
NOTE: Brake fluid will be forced through
compensating port into master cylinder fluid
reservoir when piston is pushed back into
caliper. Remove excess fluid from reservoir as
required.
6. Push the mounting bracket inward and slip the outer
brake pad out between the bracket and caliper body.
7. Remove the inner pad from the bracket and caliper.
Pad Inspection
1. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
Front Brake Pad Thickness:
0.297 ± 0.007" (7.5 ± .178 mm)
Service Limit: 0.180" (4.6 mm)
