9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

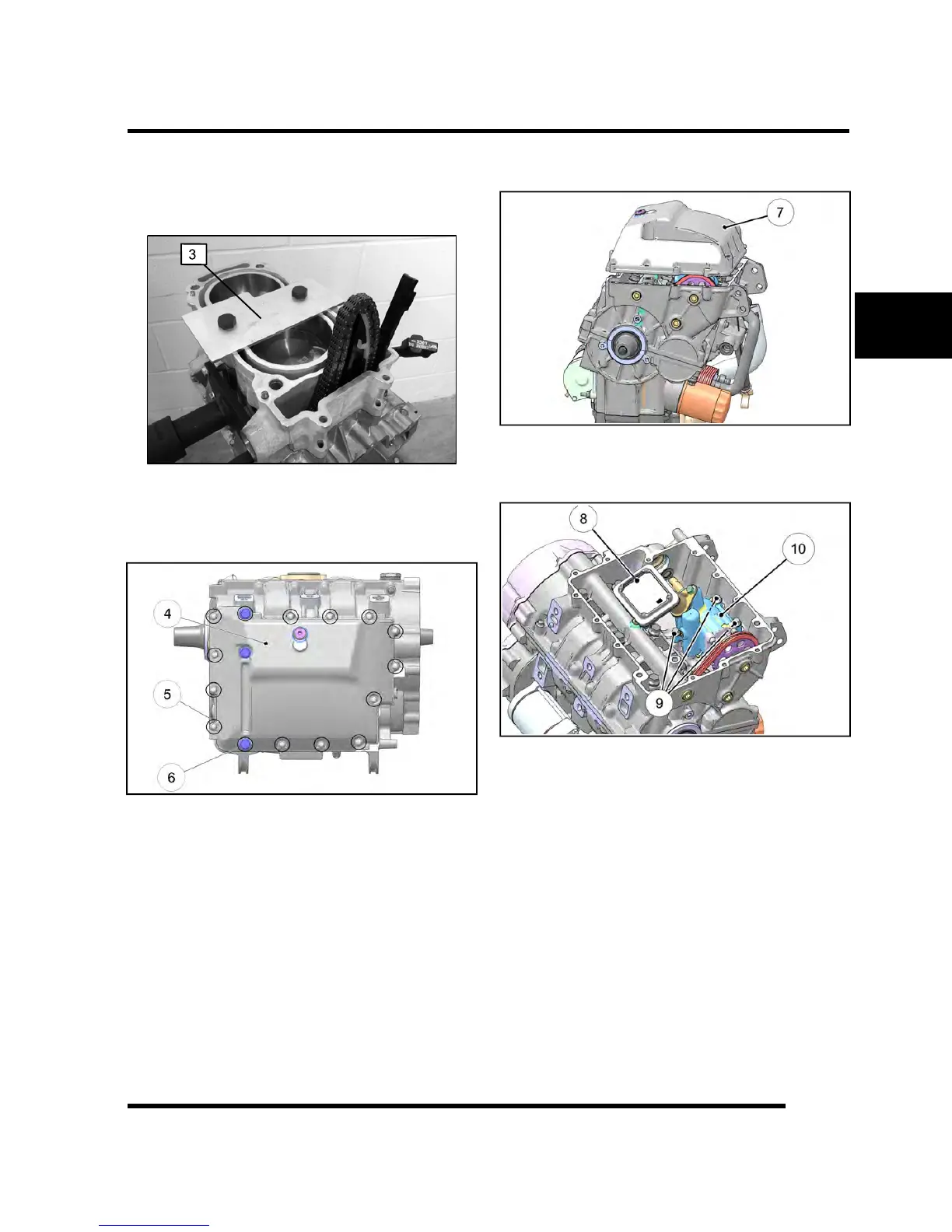

4. Install the Cylinder Holding & Camshaft Timing Plate
(PU-50563) (Item 3) onto the cylinder. The cylinder
holding tool retains the cylinder and pistons when the
engine is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the thirteen M6 (Item 5) and three M8 bolts
(Item 6) retaining the sump cover (Item 4) to the
crankcase.
7. Remove the sump cover (Item 7) from the
crankcase.
8. Remove and clean oil pump pick-up (Item 8).
9. Remove the three bolts (Item 9) that retain the oil
pump (Item 10) to the crankcase.
