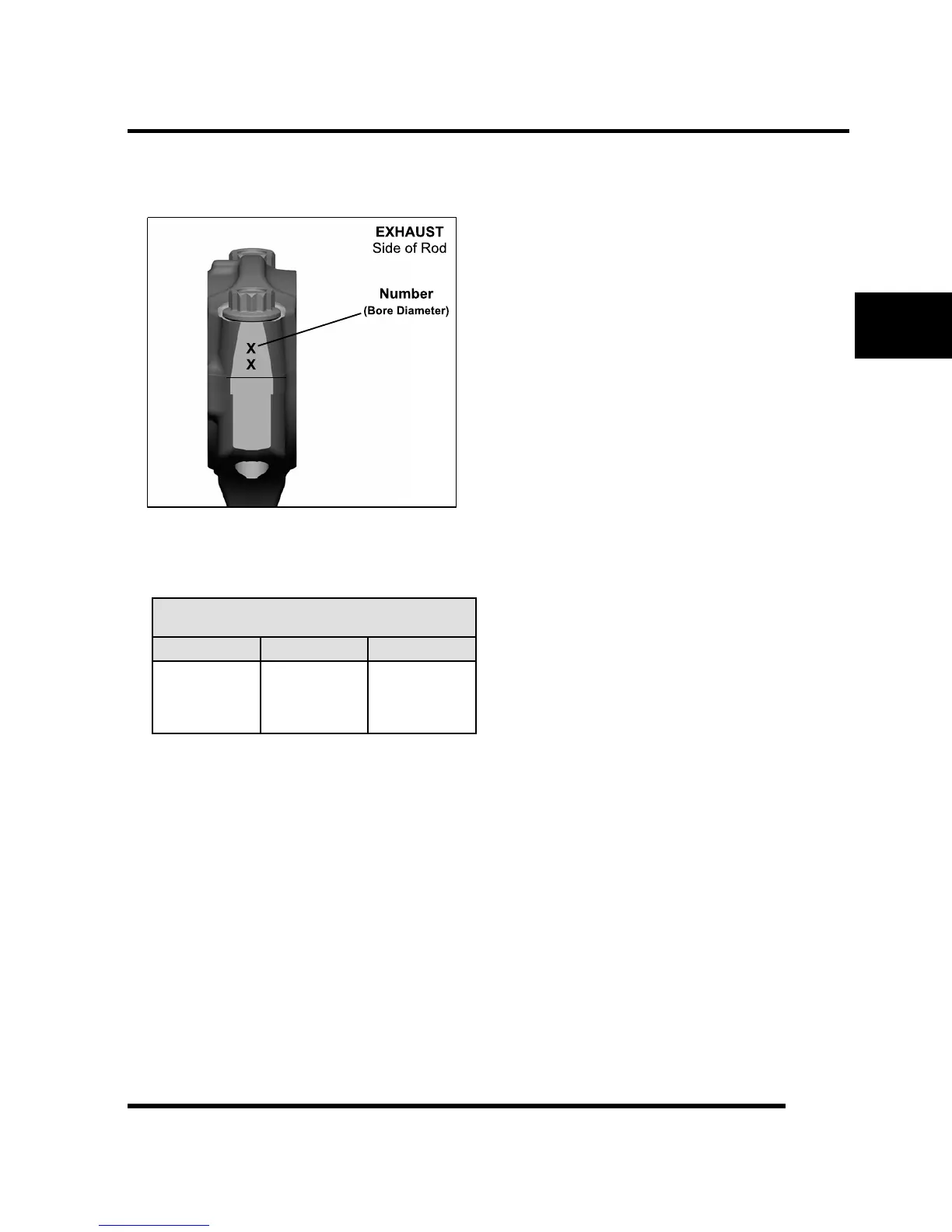

8. Refer to the number stamped onto the exhaust side
of the connecting rod. This number represents the
bore diameter.
9. The table below lists the big end bore diameter
specifications.
Bearing Selection Chart — Rod Bearings
CONNECTING ROD BIG END BORE
DIAMETERS
1 2 3
1.7318 -
1.7321"
(43.989 -
43.996 mm)
1.7321 -
1.7323"
(43.996 -
44.003 mm)
1.7323 -
1.7326"
(44.003 -
44.010 mm)
10. Whether using new connecting rods or re-installing
the original ones, refer to the bearing selection chart
provided in the Connecting Rod Bearing Selection,
page 3.61 procedure.
