4.26
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

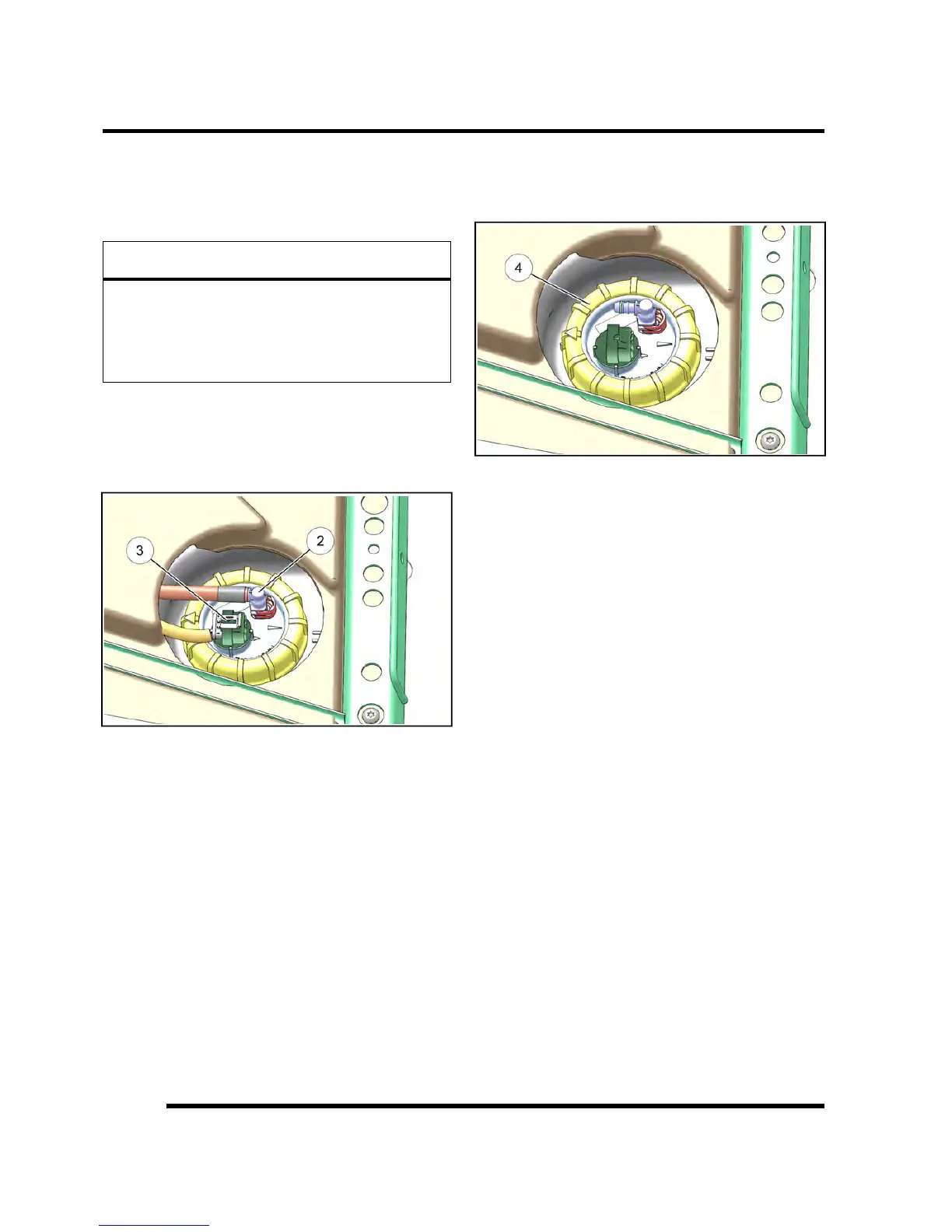

5. While holding a shop towel over the fuel line
connectors, disconnect the fuel supply line (Item 2)
from the pump and the fuel return line (B) from the
tank (see “Fuel Lines - Quick Connect Fittings” for
specific removal procedures).
CAUTION
It is possible for pressurized fuel to be present when
disconnecting the fuel line.
It is recommended to allow the vehicle to sit for a period
of one hour after shutting off the engine before
servicing the fuel pump. This allows the exhaust to cool
and fuel pressure to drop.
NOTE: A small amount of fuel may come out of
the fuel lines or pump fitting. Properly drain fuel
into a suitable container.
6. Disconnect the fuel pump electrical harness (Item 3).
7. Place the Fuel Pump Service Tool (PU-50326) over
the fuel pump PFA nut (Item 4). Using a 1/2” drive
ratchet or breaker bar, loosen and remove the PFA
nut. Discard the PFA nut.
NOTE: Apply downward force on the fuel pump
flange while removing the fuel pump PFA nut.
ELECTRONIC FUEL INJECTION
