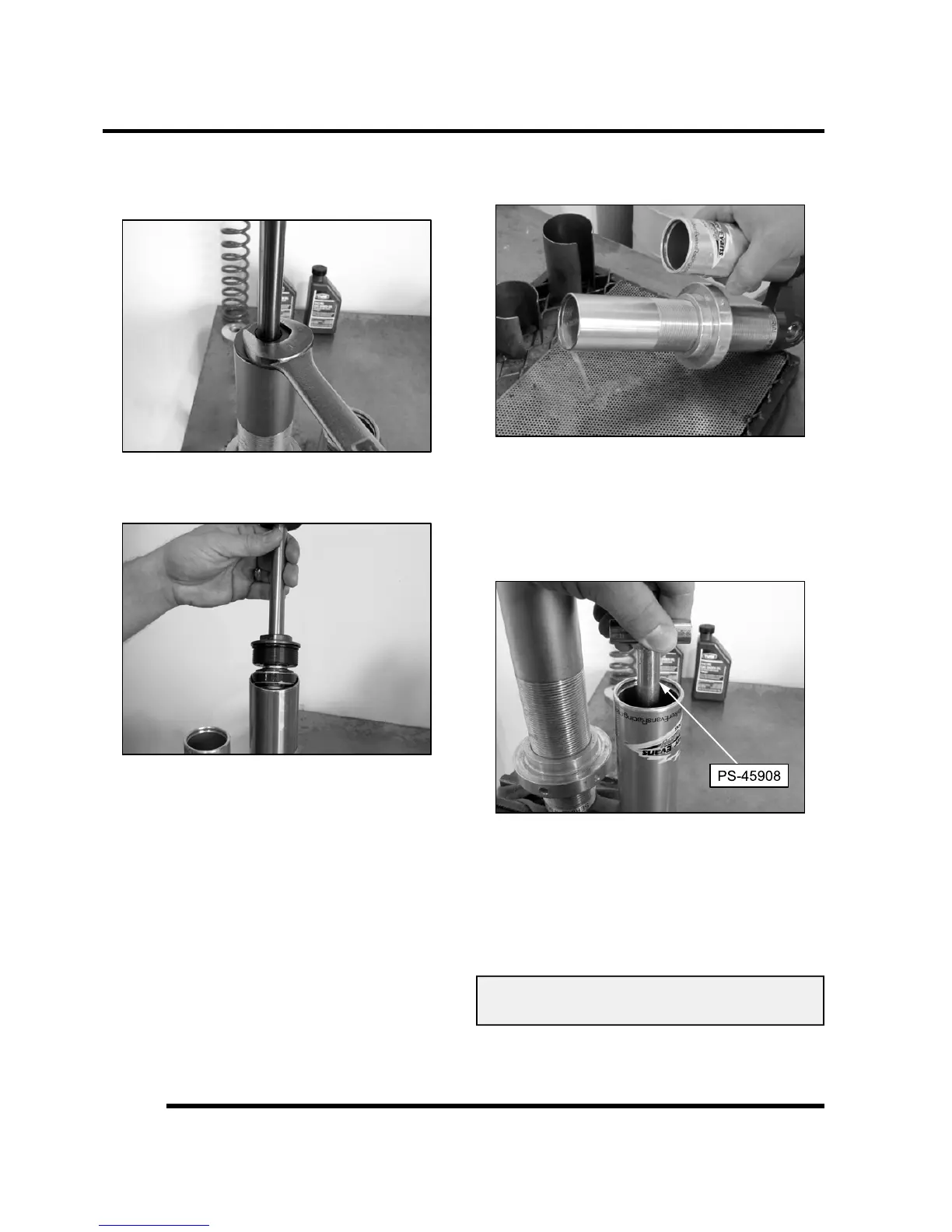

8. Using a 1" open-end wrench or adjustable wrench,
loosen and remove the bearing cap from the shock
body.
9. Slowly lift up and remove the shock rod assembly
from the shock body.
10. Remove and properly dispose of the oil from the
shock body.
NOTE: Insert the IFP Tool (PS-45908) and cycle
the Internal Floating Piston (IFP) a few times to
purge the shock oil from the reservoir.
11. Remove the floating piston from the shock reservoir
using the IFP Tool (PS-45908).
12. Clean and inspect ALL parts and replace as needed.
NOTE: Seal kits are available and should be
installed at this time if seals or O-rings are
damaged or worn.
13. Use the appropriate shock rod holding tool and a
vise to mount the shock rod vertically with the
threaded end upward.
Front Shock Rod Holding Tool: 2872429
Rear Shock Rod Holding Tool: PU-50931
