8.6

9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual

CAUTION

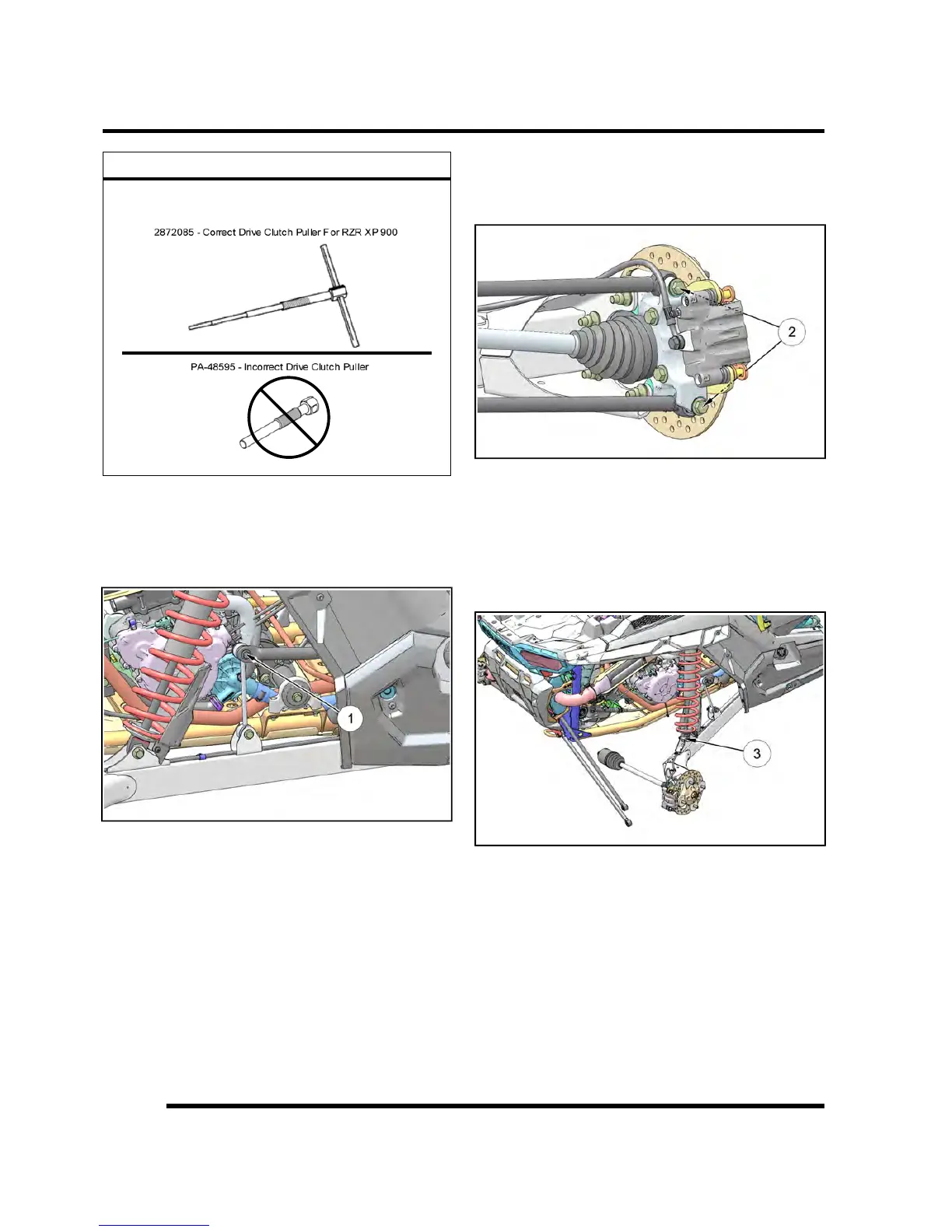

Correct Drive Clutch Puller P/N 2872085

11. Loosely install the left rear shock bolt to hold left rear

trailing arm up in position.

12. Remove the stabilizer bar mounting bolt and nut

(Item 1) from both sides. Discard nuts and replace

with new upon assembly.

13. Remove the four bolts (Item 2) attaching the upper

and lower radius rods to the bearing carriers (left and

right side). Discard nuts and replace with new upon

assembly. Allow the radius rods swing downward.

14. Remove both lower shock bolts (left and right side)

while supporting the trailing arms from underneath.

Lift training arms up and swing trailing arms outward

to remove the drive shafts from the transmission.

15. Maneuver the drive shafts out of the vehicle frame.

Reinstall the lower shock bolts (Item 3) to hold the

trailing arms up during the rest of the removal

procedure.

TRANSMISSION
