Polaris 2014 RZR XP 1000 Service Manual

8
8.23
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

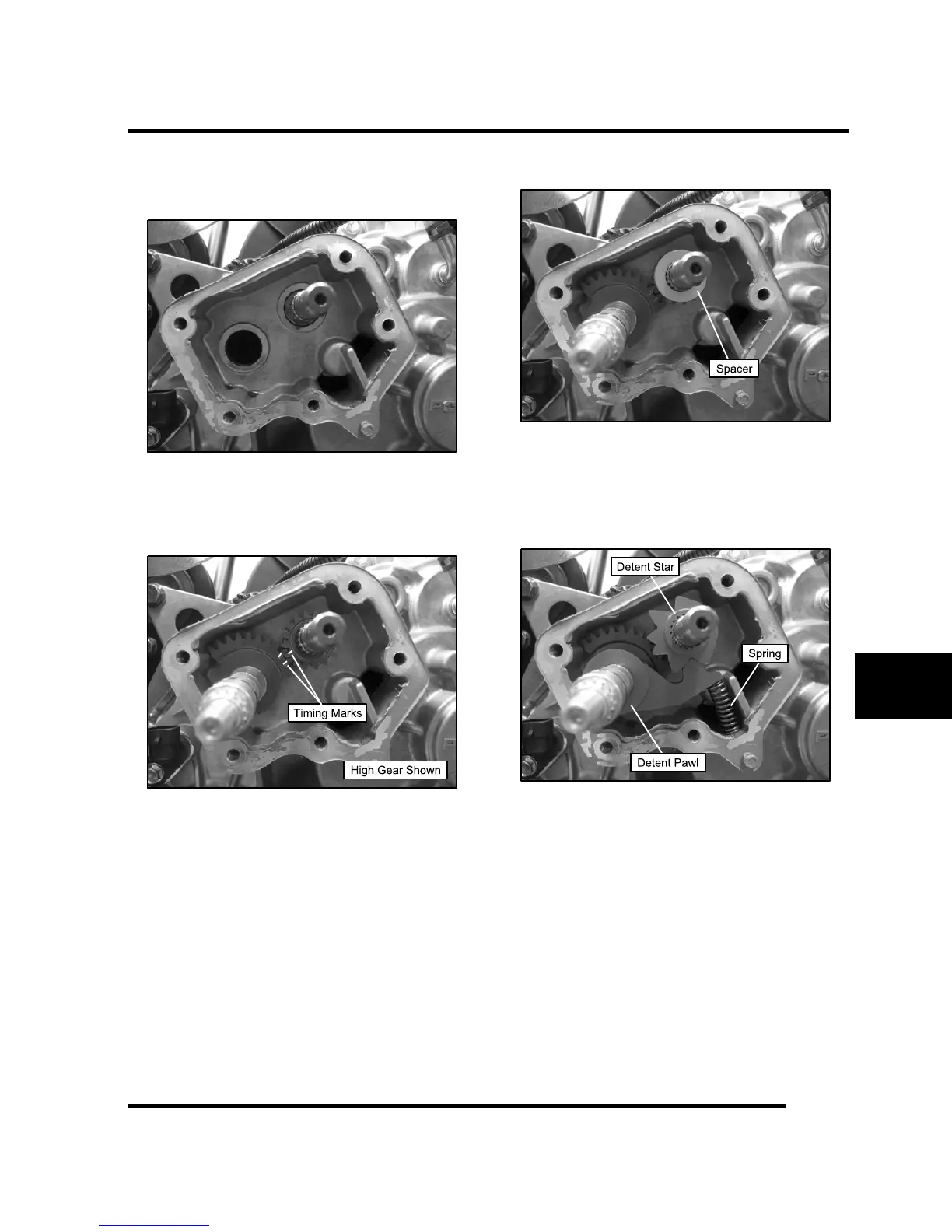

28. Thoroughly clean the shift shaft housing. Be sure
the transmission is in High gear prior to
reassembly.
29. Install the sector gear (16T) onto the shift drum shaft.
Install the shift shaft assembly and sector gear (11T)
into the bushing pocket on the left side. Align the
timing marks on the gears as shown.
30. Install the spacer onto the shift drum shaft.
31. Install the detent star onto the shift drum shaft. Be
sure to install the detent star with the raised edge
facing outward and skip-tooth aligned.
32. Install the detent pawl onto the shift shaft and
carefully install the compression spring.
TRANSMISSION
