3.20
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

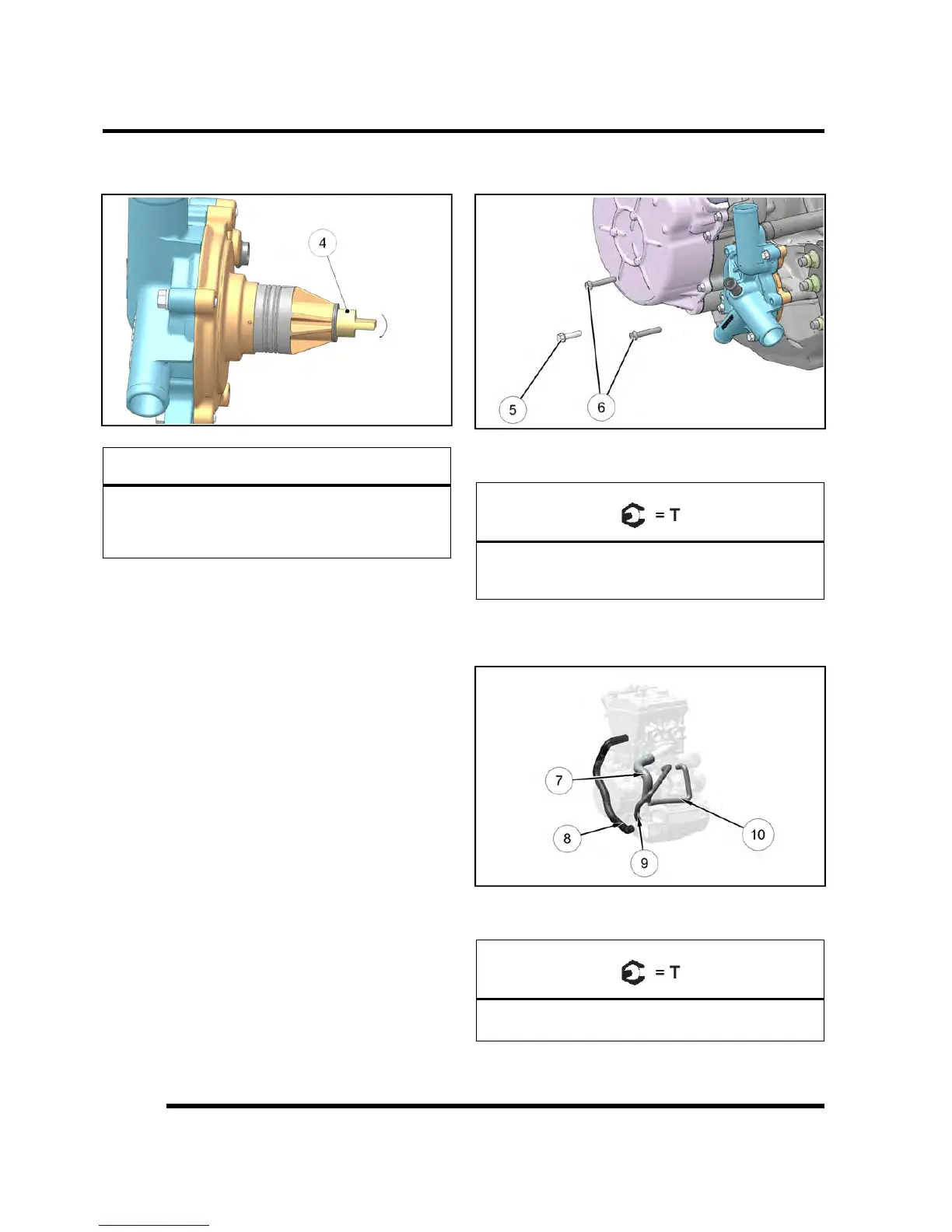

6. Rotate water pump drive tab (Item 4) so it matches
the angle of the drive slot in the engine.
CAUTION
The water pump drive tab and slot must be aligned
properly during installation. Severe engine or water
pump damage will occur if the tab and slot are not in
alignment during water pump installation.
7. Maneuver water pump up through the access hole in
the skid plate on the RH side of the vehicle.
8. Slide water pump into engine crankcase.
9. Be sure water pump is fully seated and the drive tab
and slot are properly engaged.
10. Install the three water pump mounting bolts (Item 5 &
6) and torque to specification.
NOTE: Install different bolt lengths as shown.
Water Pump Mounting Bolts:
7 ft-lb (10 Nm)
(Apply Loctite® 204™ to bolt threads)
11. Install the four coolant hoses (Item 7–10) that attach
to the water pump. Be sure orientation and routing
are correct.
12. Install the right rear lower shock bolt and new nut.
Torque mounting bolt to specification.
Rear Shock Mounting Bolt:
70 ft-lbs (95 Nm)
ENGINE
