Polaris 600 RUSH 2010 User Manual

3.37
Engine/Cooling/Exhaust
3

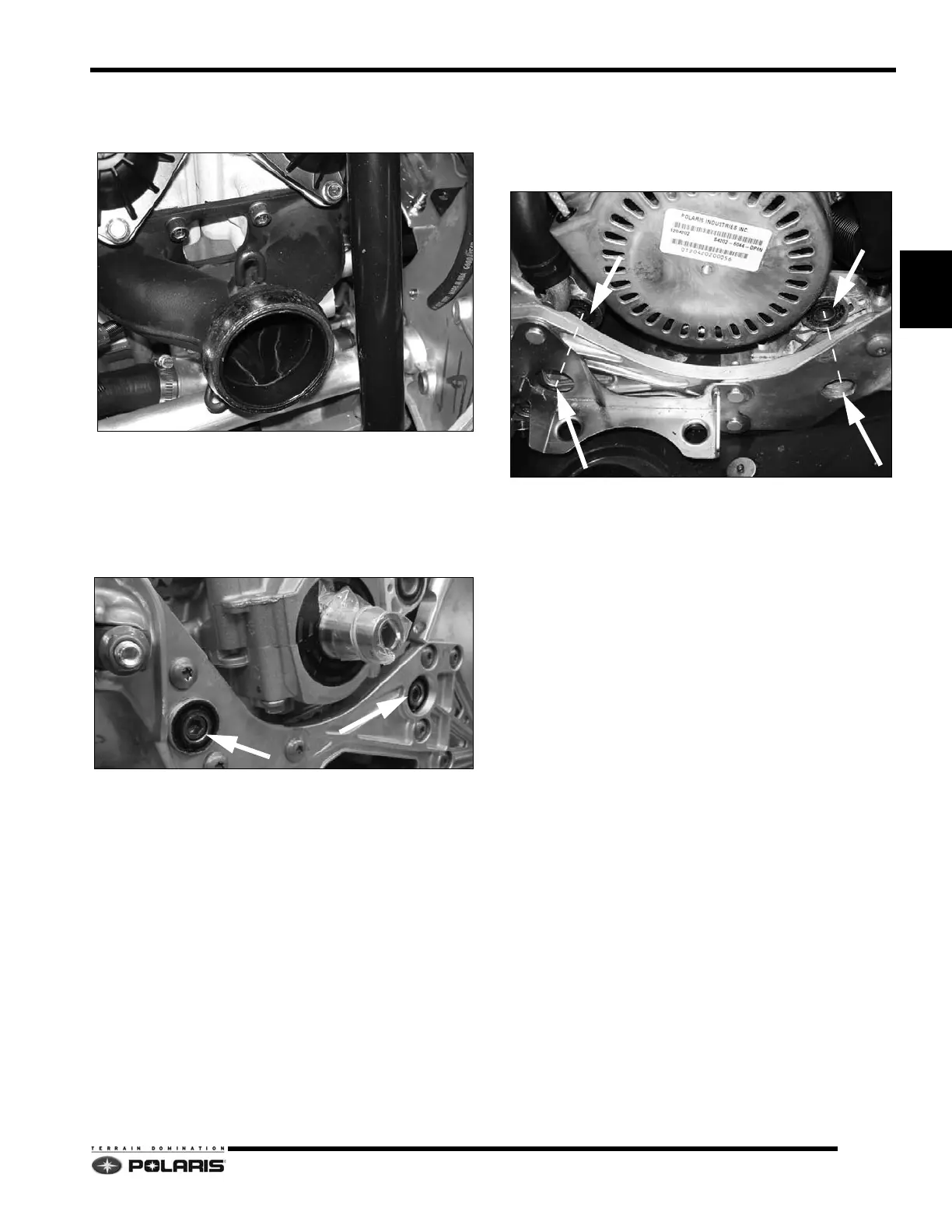

16. Remove the exhaust y-pipe from the engine using a
ball-end Allen wrench. Remove the exhaust gaskets.
If un-damaged, they can be re-used during assembly.
17. Remove the PTO and MAG exhaust valve assemblies
from the cylinder. Doing this
will provide clearance
between the engine and bulkhead so the engine can
be removed from the PTO-side of the engine
compartment.
18. Remove the two engine mounting screws from the
PT
O-side of the engine.
19. Remove the two engine mount screws from the MAG-
sid
e of the engine.
NOTE: Use a six to eight inch extended Allen wrench
t
o access the MAG-side engine mounting bolts.
20. With the help of an assistant carefully remove the
e
ngine from the PTO-side of the engine compartment.
21. Use care when lifting the engine up and over the
tun
nel and side support plate. Do not damage the oil
pump when pulling the engine out.

Polaris 600 RUSH 2010 Specifications

General

Horsepower	120 HP
Engine Displacement	599 cc
Cylinders	2
Cooling	Liquid
Bore x Stroke	77.25 mm x 64 mm
Fuel System	Cleanfire Injection
Ignition	Digital CDI
Front Suspension	PRO-RIDE
Rear Suspension	PRO-RIDE
Track Width	15 in
Track Lug Height	1.25 in
Front Travel	9 in
Ski Stance	42.5 in
Brake	Hydraulic Disc
Width	48 in
Starter	Electric
Drive Clutch	P-85
Track Length	121 in
Rear Travel	14 in
Ski Type	Gripper
Driven Clutch	TEAM
