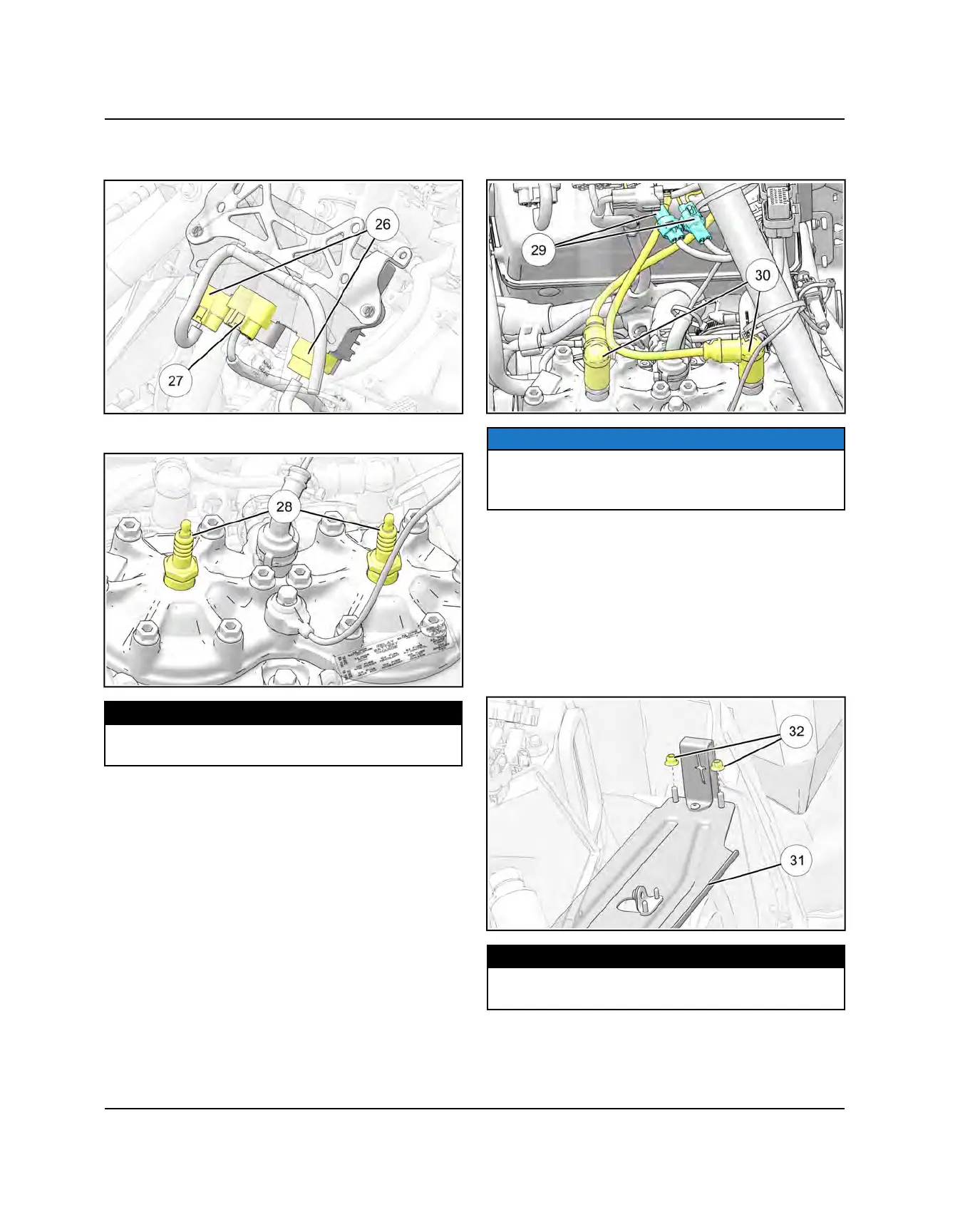

28.Connect the PBR connectors
2^
and Stator connector
2&
to the PBR.
29.Install the spark plugs
2*
. Torque to specification.
TORQUE
Spark Plug:
22 ft-lbs (30 N·m)
30.Connect the coils to the wire harness
2(
and spark
plugs
3)
.
NOTICE
Make sure the spark plug wires snaps into place.
Be sure the MAG and PTO plug wires are correct
31.Install the drive clutch, driven clutch, and drive belt.
See the following procedures for installation:
• Drive Clutch Installation page
• Driven Clutch Installation page 7.28
• Drive Belt Installation - AXYS page 2.25
32.Slide the front of the clutch cover
3!
into the body
work. Install the fasteners
3@
at the rear of the clutch
cover.
TORQUE
Clutch Cover Nuts:
7 ft-lbs (10 Nm)
33.Carefully install the intake plenum into place.
ENGINE / COOLING / EXHAUST
