15.If removed, reinstall the ignition coils.
TORQUE
Air Box Coil Fasteners:
36 in-lbs (4 Nm)

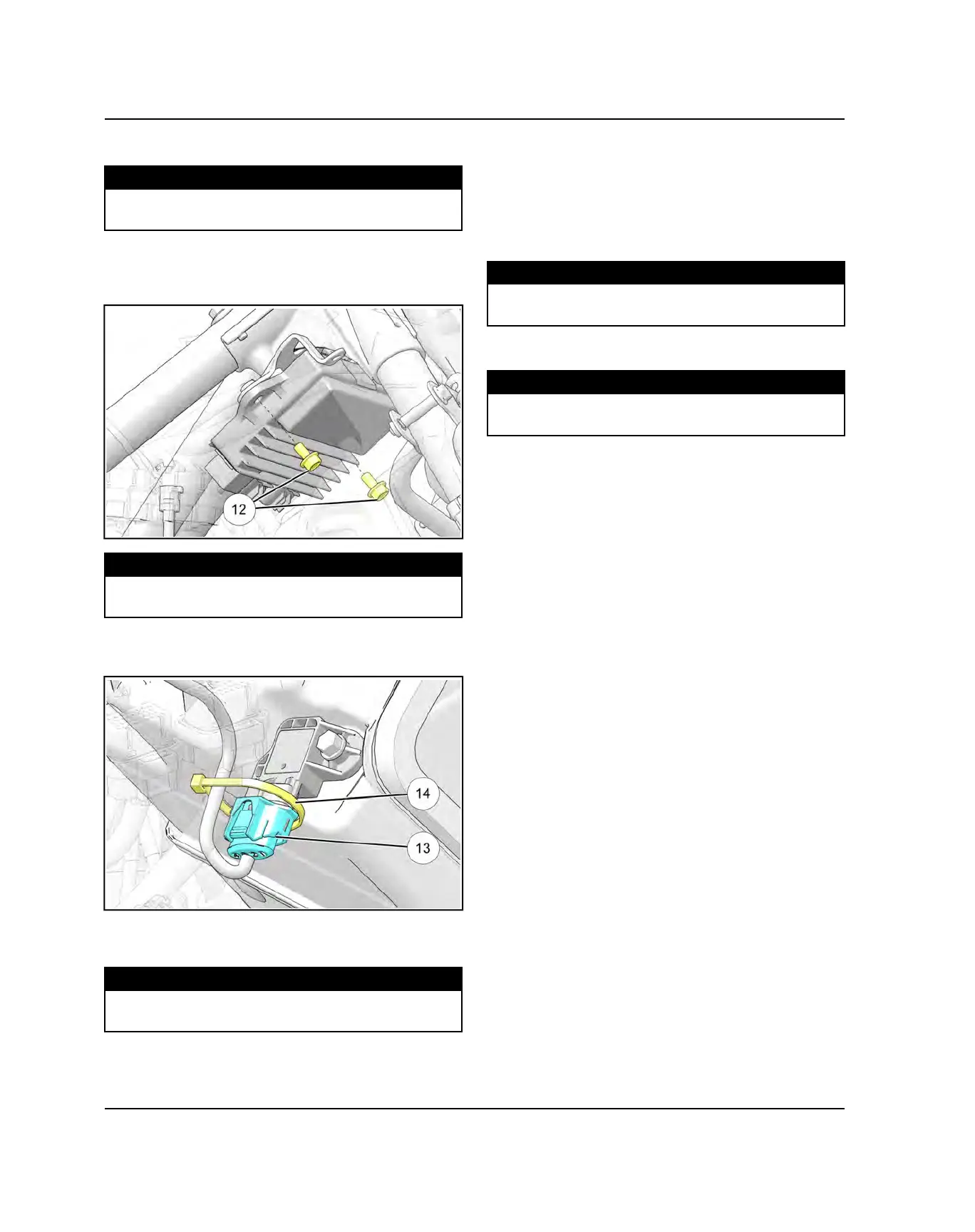

16.Slide the PBR back onto bracket and align mounting
holes. Install the two fasteners
d
and torque to
specification.
TORQUE
PBR Fasteners:
6 ft-lbs (8 Nm)
17.Reonnect the T-MAP Sensor
f
to the wiring harness
and install new cable tie
g
to secure wiring.
18.Reinstall the support brace. Torque fasteners to
specification.
TORQUE
Left Support Brace Fastener:
22 ft-lbs (30 Nm)
19.Reinstall the air intake plenum / ECU assembly. Verify
the console tabs fit into the bottom of the air intake
plenum.
20.Reinstall the air intake ducts.
21.Install the clutch guard assembly. Torque nuts to
specification.
TORQUE
Clutch Cover Nuts:
7 ft-lbs (10 Nm)
22.Reinstall the oil tank. Torque fastener to specification.
TORQUE
Oil Tank Fastener:
7 ft-lbs (9 Nm)
23.Install the driven clutch and drive belt. See the
following procedures for installation:
• Driven Clutch Installation page 7.28
• Drive Belt Installation - AXYS page 2.25
24.Install the hood assembly and left / right engine
compartment side panels.
