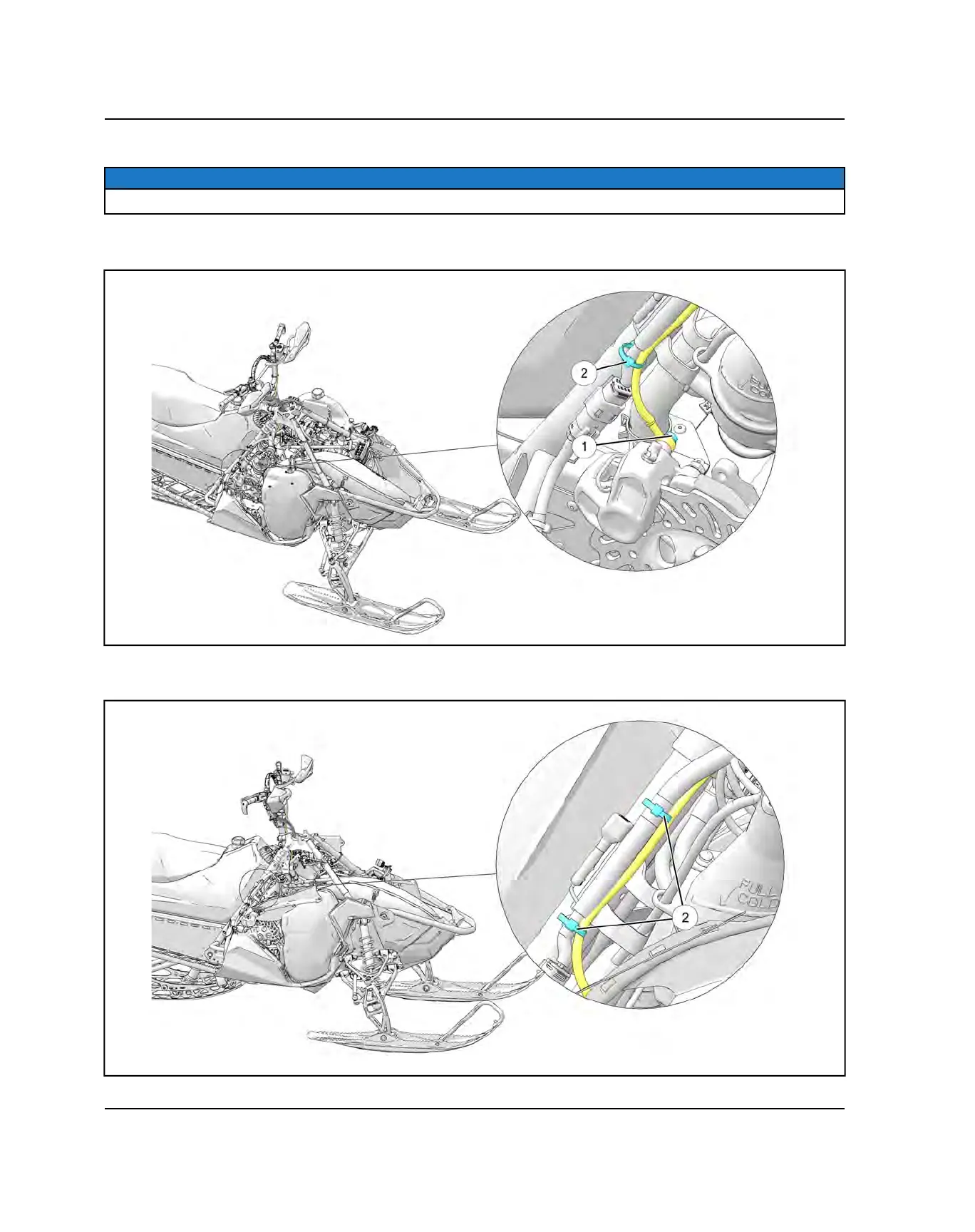

BRAKE LINE ROUTING (CHAINCASE)
NOTICE
Images for reference only.
1. From the brake caliper banjo bolt
q
, route the brake line up towards the connector placement bracket located
behind the coolant bottle. Secure the brake line in the location shown below
w
.
2. Continue to route the brake line upward along the over structure tube. Secure the brake line to the main harness at
the retention tape location shown
w
.
FINAL DRIVE / BRAKE SYSTEMS
