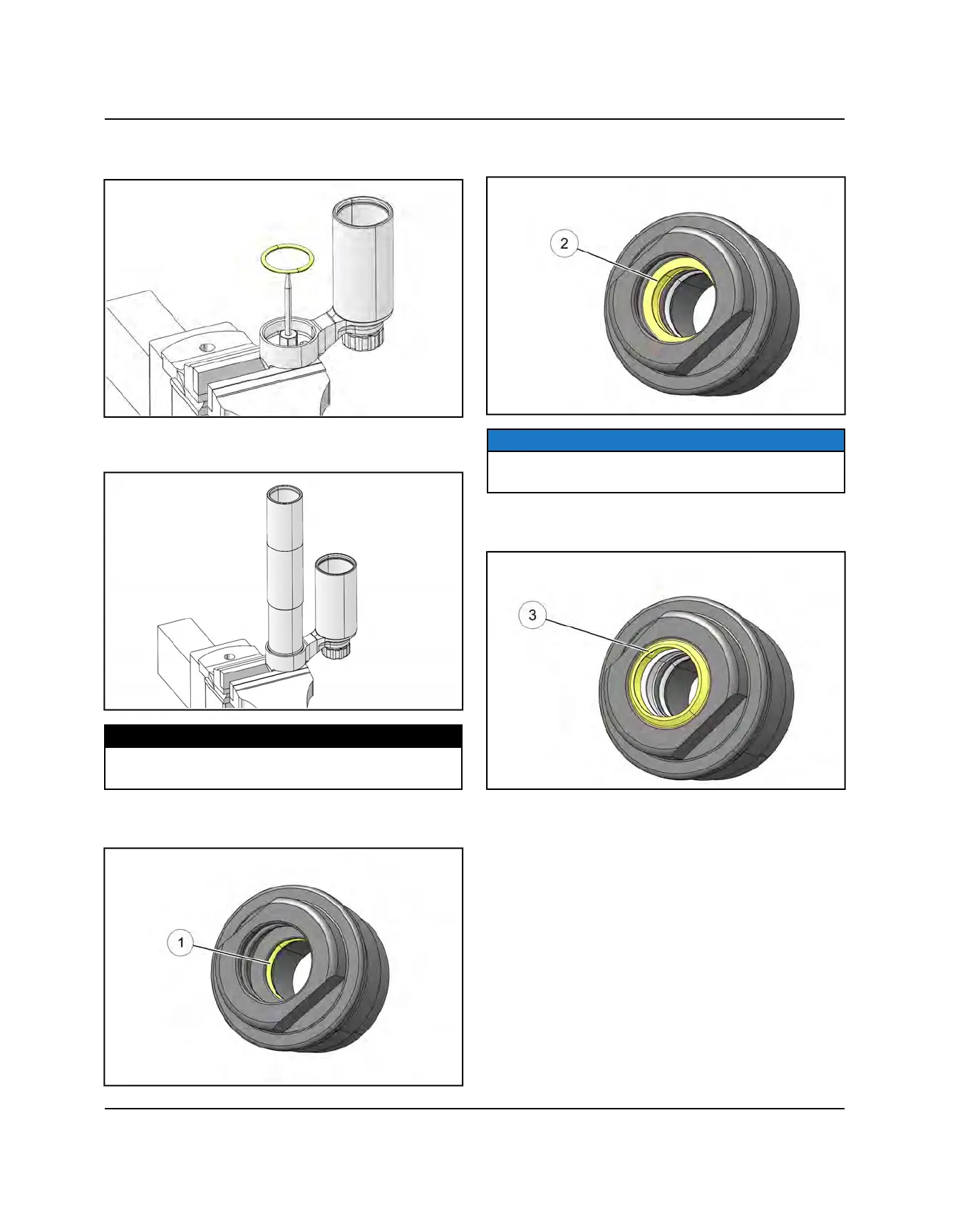

10.Obtain a new shock body O-ring. Coat the O-ring with
new shock oil and install into cap.
11. Reinstall the shock body tube. Torque the body cap /
tube to specification.
TORQUE
Shock Body Cap / Tube:
30 ft-lbs (41 Nm)
12.Assemble the bearing cap. Coat a new bearing cap
O-ring
q
with new shock oil. Install into bearing cap.
13.Apply shock oil to a new U-cup seal
w
. Install the
seal as shown. The flat side of the seal faces out.
NOTICE
Use the rounded end of a ball point pen or marker to
push the U-cup seal into position.
14.Apply shock oil to a new wiper seal
e
. Install the
wiper seal as shown.
