8
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
8.87

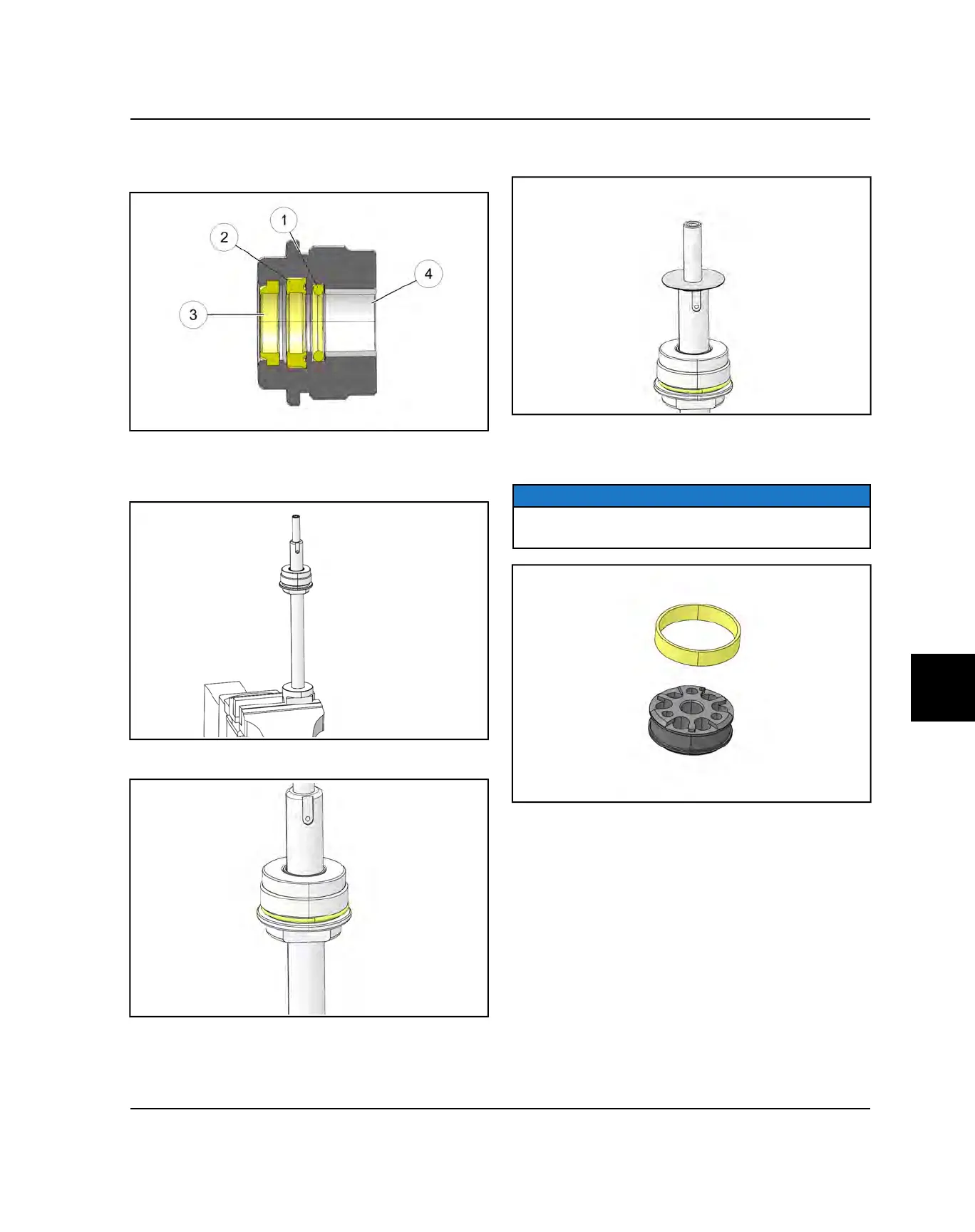

15.When assembled, the O-ring
q
, U-cup seal
w
, wiper
seal
e
should be orientated as shown. Bushing
r
shown for reference.
16.Coat the shock shaft and bearing assembly with
shock oil. Install the bearing assembly onto the shock
shaft with the wrench flats facing the rod end eyelet.
17.Install a new O-ring onto the bearing cap.
18.Install the compression valve stack onto the shock
rod.
19.Coat a new piston valve wear band with shock oil and
install onto valve. Install the assembly onto the shock
shaft.
NOTICE
The side of valve with the greater number of relief ports
is the rebound side. Install with rebound side facing up.
STEERING / SUSPENSIONS
