10.Secure the shock rod using the 5/8″ shock rod
holding tool, PN: 2872429, in a bench vise.. Torque
the lock nut to specification.
TORQUE
Piston Valve Lock Nut:
35 ft-lbs (47 Nm)
11. Set the shock rod assembly aside on a clean, lint free
shop towel.

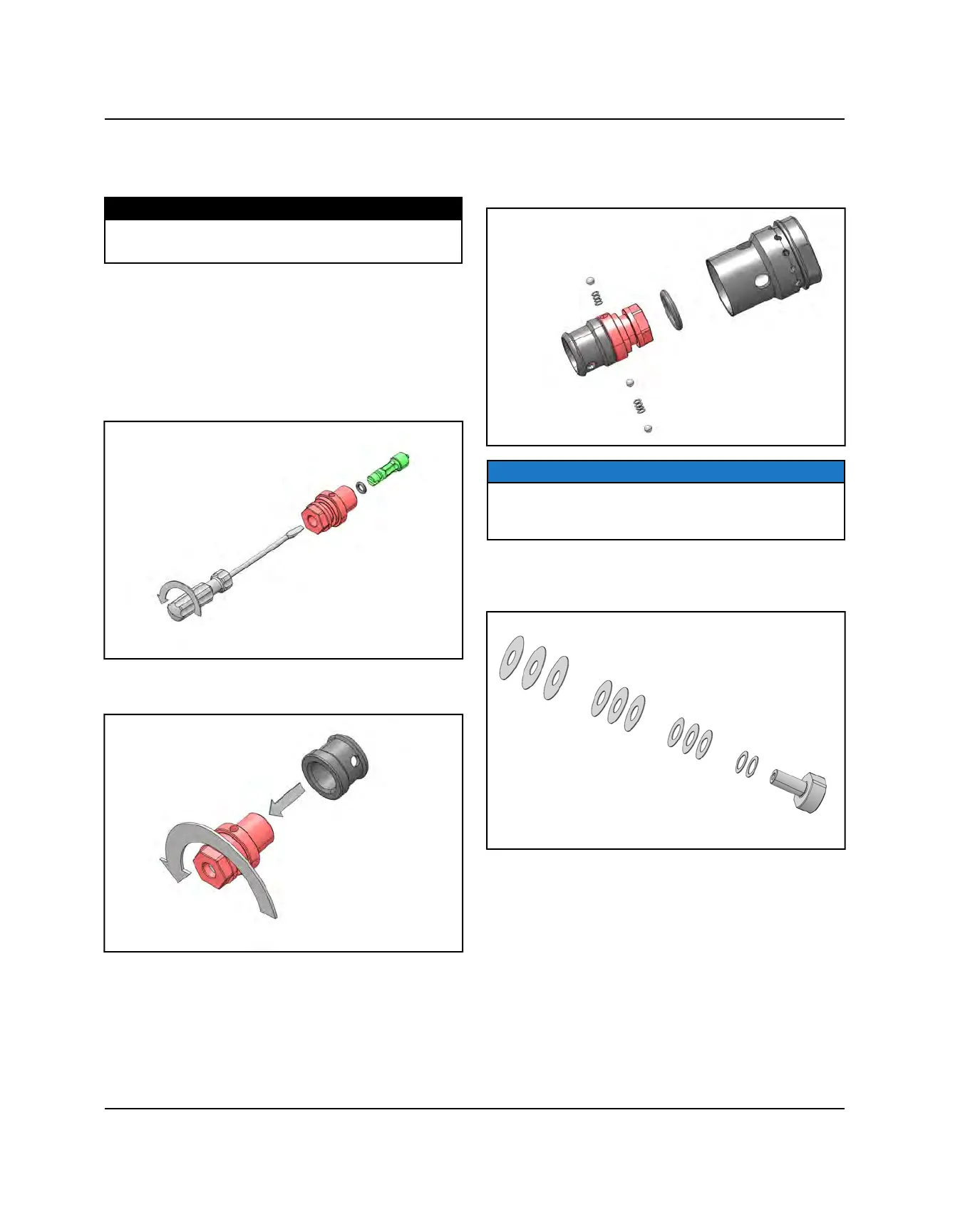

High / Low Speed Adjuster Assembly
1. Install a new O-ring onto the low speed needle.
Screw the low speed needle into the high speed main
body. Use a small screwdriver to bottom-out the
needle in the adjuster.
2. Hold the plug and turn the high speed adjuster main
body counter-clockwise to install the plug.
3. Install a new O-ring onto the high speed main body.
Install the detent springs and balls back into the main
body. Install the plug. Reinstall the assembly back
into the sleeve.
NOTICE
Align the detent balls opposite of sleeve bleed holes.
Use a small screwdriver to depress the balls when
installing the main body.
4. Reinstall the high speed adjuster shims onto the
center rod in the exact order in which they were
removed.
