8
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
8.97

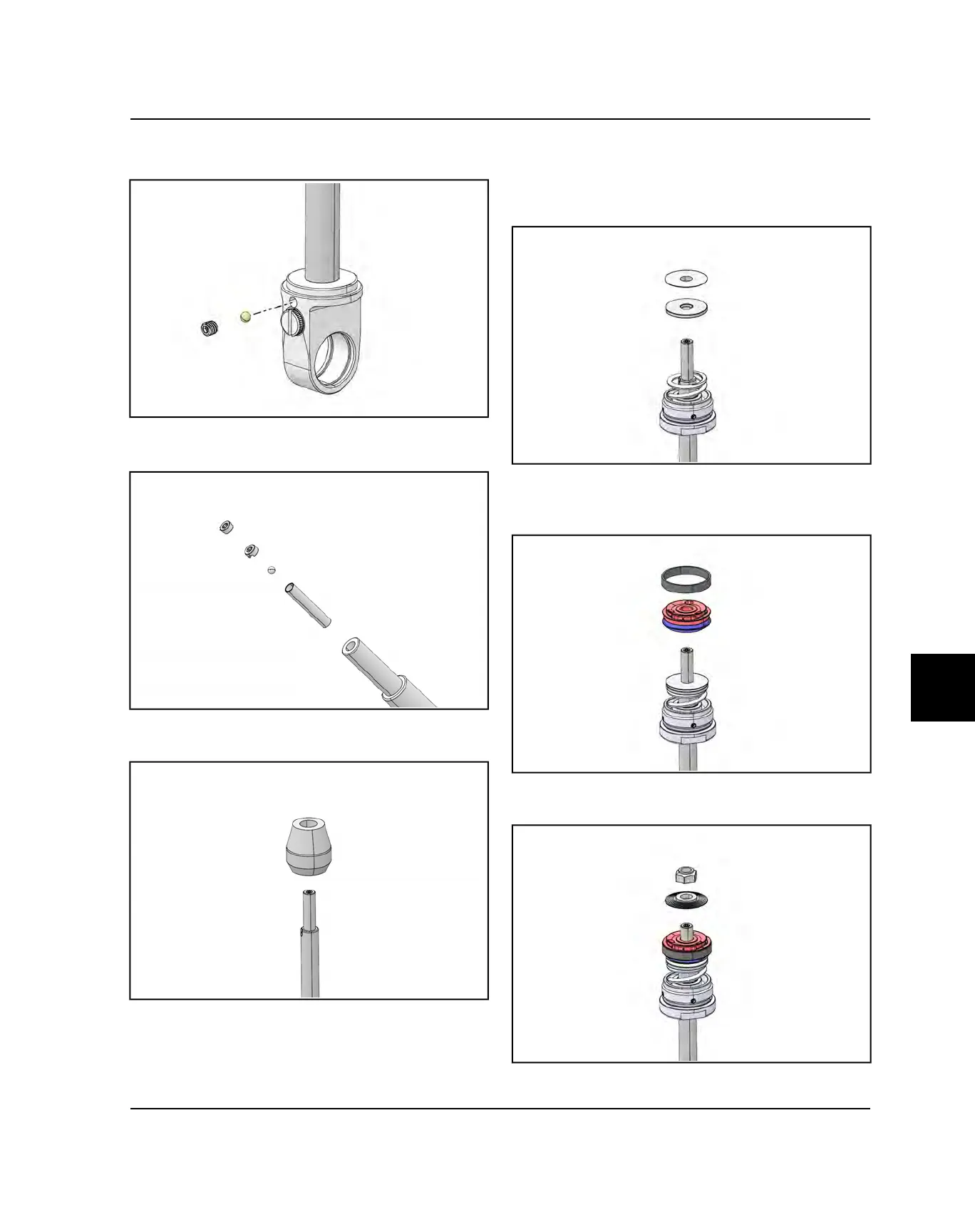

4. Install a new brass ball into the eyelet and crush it
against the rod by turning the set screw into the ball.
5. Place the eyelet end of the shock rod into the vise.
Reinstall the sleeve, check ball and two set screws.
6. If the jounce bumper was removed from the rod,
reinstall it.
7. Coat the inside of the assembled bearing cap with
shock oil. Screw the 5/8″ shock rod seal protector
tool, PN 2201640, onto the shock rod. Carefully install
the bearing cap onto the shock rod. Install the spring
washer and compression valve stack.
8. Coat the piston valve and new wear band with shock
oil. Install the new wear band onto the piston valve.
Install the assembly onto the shock rod.
9. Remove the 5/8″ shock rod seal protector. Install the
rebound valve stack and a new lock nut.
STEERING / SUSPENSIONS
