GC09 BN
GC09 BN
EA34 BK/DB
EA34 BK/DB
EA25 BN/WH
EA25 BN/WH
EB18 BN/WH
EB18 BN/WH
GC04 BN
GC04 BN
GS01 BK/DB
GS01 BK/DB
GE01 BN/WH
GE01 BN/WH
GS02 BK/DB
GS02 BK/DB
GC05 BN/WH
GC05 BN/WH
GC01 BN
GC01 BN
GC03 BN
GC03 BN
GC02 BN
GC02 BN
PE01 OG
PE01 OG
EB10-3 RD/DB
EB10-3 RD/DB
EB10 RD/DB
EB10 RD/DB
EB10-2 RD/DB
EB10-2 RD/DB
EA09 OG
EA09 OG
EB10-4 RD/DB
EB10-4 RD/DB
EA09-1 OG
EA09-1 OG
EB10-1 RD/DB
EB10-1 RD/DB
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.

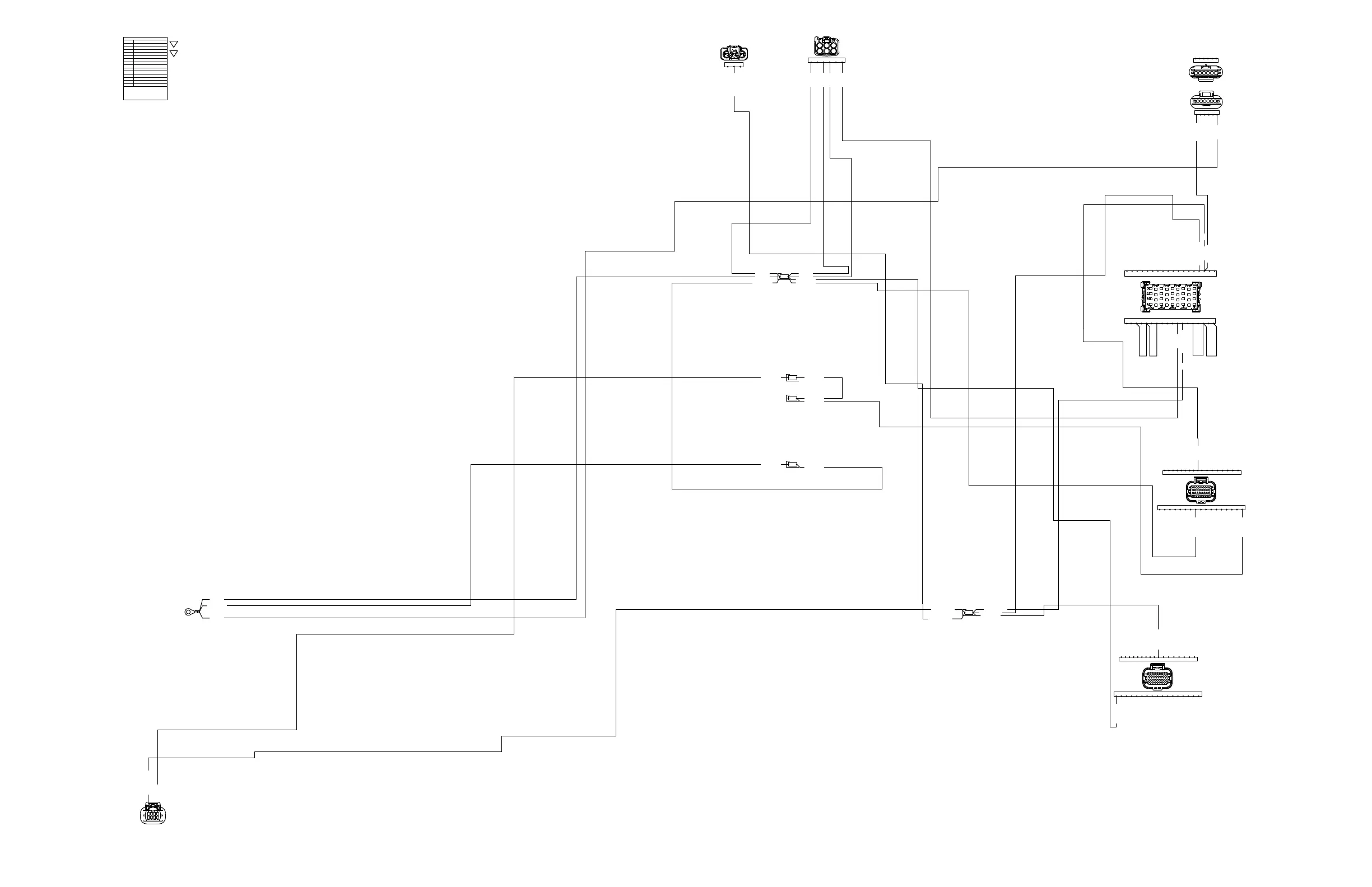

ECU POWER CIRCUIT
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
HARNESS: ECU PWR
SHEET NO. 1 OF 2
CL CLEAR
SPLICE,ECU GROUND
15326835
DELPHI
FURUKAWA QLW-A-B3F-B
FURUKAWA FSW-C-6F-B (Black)
12160504
DELPHI
LOAD CENTER
PBR (DC PWR)
PBR (ECU,CAN,GND)
P2P1 P3
P4 P5 P6
TOP VIEW
(COVER REMOVED)
DIGITAL WRENCH
A B C D
E F G H
CHASSIS GND
1
SPLICE,CHASSIS SENSOR GROUND #1
12
12
SPLICE,CHASSIS SENSOR GROUND #2
12
A1 A2 A3 A4 A5 A6 A7 A8 A9 B1 B2 B3 B4 B5 B6 B7 B8 B9
D9D8D7D6D5D4D3D2D1C9C8C7C6C5C4C3C2C1
P1P2P3
SPLICE,PBR GROUND #1
12
P3P2P1 P4 P5 P6
INJECTOR PWR SPLICE
12
10 AMP FUSE (B3 -B2)
6 AMP DIODE (D7 - D6)
ECU_CNA
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
ECU_CNB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
A
B
C D E
F
DIAGNOSTIC PWR TEST JUMPER
A B C D E F
A
B C
D E
F
DIAGNOSTIC PWR
A B C D E F
To Next Page
