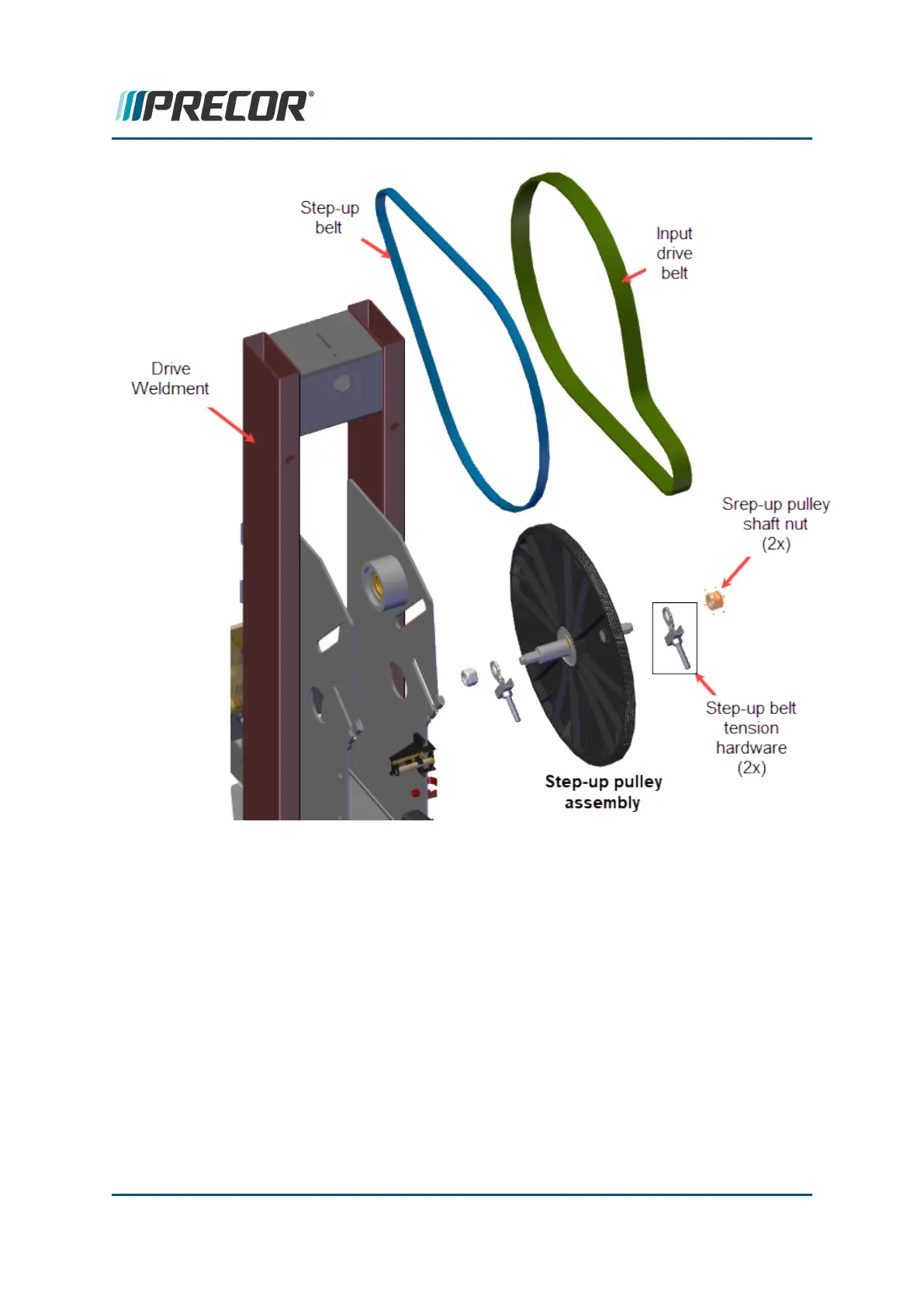

12. Reinstall the step-up pulley assembly (with the step-up and input drive belts installed
on the shaft) onto the drive weldment.
13. Reinstall the left and right step-up belt tensioning hardware: banjo bolt, bracket, and
tension adjustment nut. Thread the left and right step-up pulley shaft nuts onto the
shaft until snug, do not tighten.
Reinstall the Input Drive Assy
14. Slide the input drive assembly through the step-up and input drive belts.
15. Install the input drive assembly and the left and right side Pillow Block Bearing assem-
blies, see "Pillow Block Bearing Replacement" on page155.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 135
6 Available Replacement Procedures
Step-up Pulley Assembly Replacement
