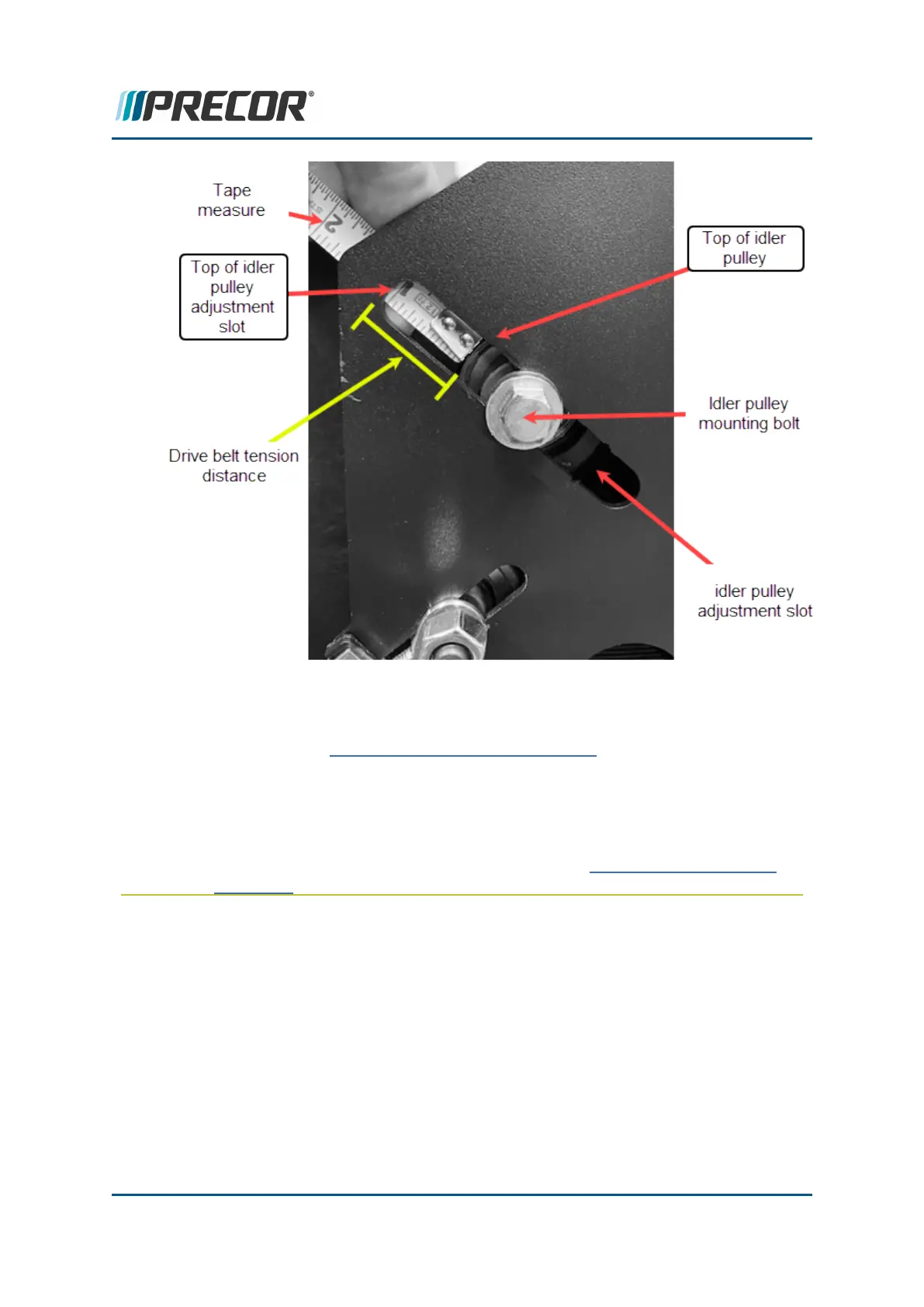

Step-up Belt Tension Spec Verification
4. Verify the step-up belt tension. Measure the step-up belt tension using the Gates Car-
bon Drive™ app (see Gates® Carbon Drive Mobile™ App tutorial). Verify the sonic
belt tension is within specification limits 230 Hz +/-10.
a. If the belt tension is within specification, continue procedure and verify the belt
alignment and tracking.
b. If the belt tension is NOT within specification, tension the belt to specification.
Go to the Belt Tension Adjustment procedure, see Belt Tension Adjustment
Procedure.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 51
5 Adjustment Procedures
Input Drive and Step-up Belt Tension Adjustment
